ID # 13663696

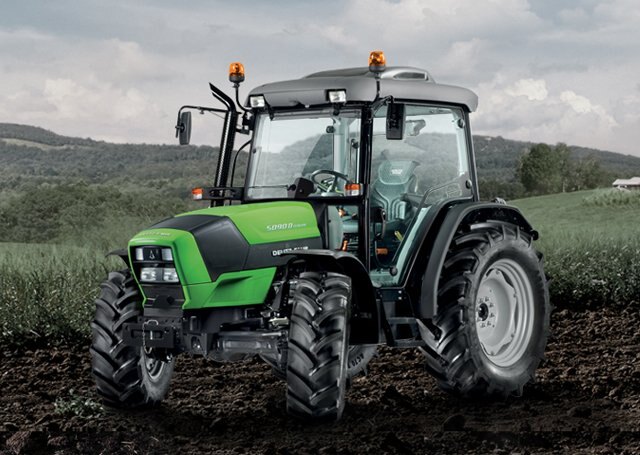

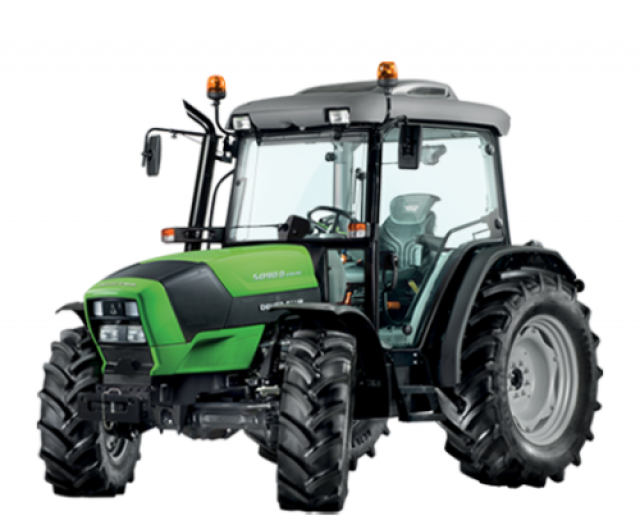

Deutz-Fahr 5D Series Ecoline

  • Deutz Fahr 5D Series Ecoline
  • Deutz Fahr 5D Series Ecoline
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The 5D Series Ecoline comprises 3 models from 80 to 90 HP with low weight/power ratio, characterised by high performance and great ease of use. All models feature the new FARMotion engines and are available in a variety of versions and configurations, suitable for both farm and open field work.

  Features
Engine - 430 Agrotron TTV
Engine

Efficient, powerful, ecological

The 5D Series Ecoline has the latest generation of FARMotion family engines specifically designed for agricultural use.
In both the 3-cylinder (2,887 cc) or 4-cylinder (3,849 cc) version with high pressure Common Rail injection system (2,000 bar) it is able to provide greater efficiency, excellent performance and reduced consumption.
The EGR electronically controlled external exhaust gas recirculation system and the DOC (Diesel Oxidation Catalyst) post-treatment system ensure low emissions and make 5D Series Ecoline tractors compliant with the Tier4i.standard


Transmission

The right gear for maximum reliability

The dry clutch transmission with mechanical shuttle is configured as follows: five gears with two work ranges for a total of 10 FWD + 10 REV speeds, characterised by simplicity,

reliability and reduced power absorption.
As an option, a version with five gears with three work ranges with mini and supercreeper gear is available, for a total of 30 FWD + 15 REV speeds

Hydraulic system

Adaptability and functionality with any equipment

The hydraulic system of the 5D Series Ecoline, with a capacity of 42 l/min and four or six-way mechanical distributors, is able to guarantee great flexibility with any equipment.

The mechanical rear lift has a lifting capacity of up to 3,600 kg, 1,750 kg for the front lift.
The range of PTO speeds is extensive: 540/540ECO/1,000 and ground speed PTO with independent output shaft.

Cab

Ergonomic controls and operating comfort

5D Series Ecoline tractors take advantage of all the stylistic and functional solutions specifically created by Giugiaro Design. The cab has a four-upright structure with large

windows for perfect visibility on all sides. The driver's seat is comfortable with the controls arranged in a simple and ergonomic manner, with "colour coding" that makes the tractor intuitive and easy to use.
  Specifications


Technical sheet - 5D Series Ecoline



Specifications
Model
5D Series Ecoline
Category Name
Tractors
Year
2017
Sale Type
New
Manufacturer
Deutz-Fahr
Documents
