Engine



A powerful, compact engine.

The three cylinder SDF 1000.3 Series WTE3 engines are Tier IIIA compliant, extremely compact and combine ready power delivery even at low engine speeds with outstanding fuel economy.
These SDF engines deliver impressive torque even at low engine speeds, for outstanding flexibility (while maximum torque is produced at 1600 rpm), and feature an electronic engine governor allowing the driver to set and store engine speed presets for specific applications.
Agrolux 65 | 75 models also use an exclusive, high performance injection system. Much more advanced than conventional rotary pump systems, the exclusive SDF injection system uses individual pumps for each cylinder to maximise engine power (with very high injection pressures of up to 1,400 bar) and ensure extremely short injection times, while the electronic engine management system varies the injection timing itself in relation to load to optimise consumption.
These engines are equipped with state of the art HRT (Hydraulic Roller Tappets) technology, a system controlled by an electrohydraulic valve to optimise the injection of fuel into the combustion chamber. During engine starts while the engine oil is still cold, the system increases valve lift slightly to advance the injection timing, optimising engine efficiency right from the start of the day and in any weather conditions, and eliminating the unpleasant white exhaust smoke typically produced by engines under cold starting conditions. And to protect the environment, the engines powering Agrolux 65 | 75 tractors are designed from the outset and built with specific characteristics to ensure compatibility with fuels containing up to 100% biodiesel.

Hydraulic System

Efficient hydraulic power transmission.

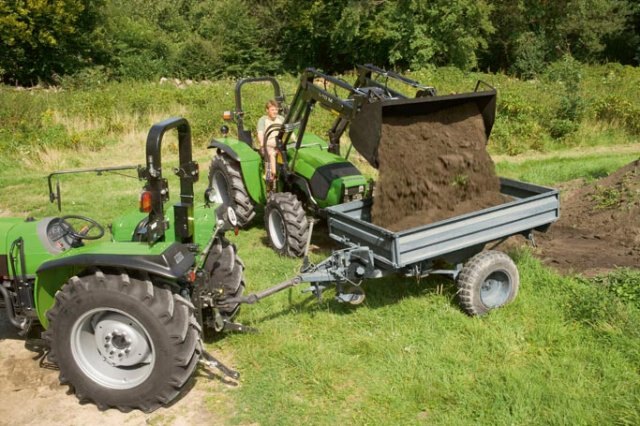

The hydraulic system uses a main gear pump with a maximum capacity of 33 l/min, which feeds the rear lift and the two-way (or optional four-way) auxiliary distributors, while a secondary pump is dedicated to the power steering system, ensuring effortless, smooth steering action in all conditions and during simultaneous usage of the main hydraulic utilities. The rear 3-point linkage is equipped with a powerful hydraulic lift with an impressive maximum capacity of 3000 kg.

Cab

Uncompromised comfort.

For the modern farm today, superlative comfort and state of the art ergonomics are indispensable attributes even for low to mid power tractor. The Agrolux 65 and 75 offer a truly comfortable driver area: with an adjustable, mechanically sprung seat, ergonomically organised control levers and comprehensive instrumentation letting the driver immediately and constantly monitor the main functions of the machine.
