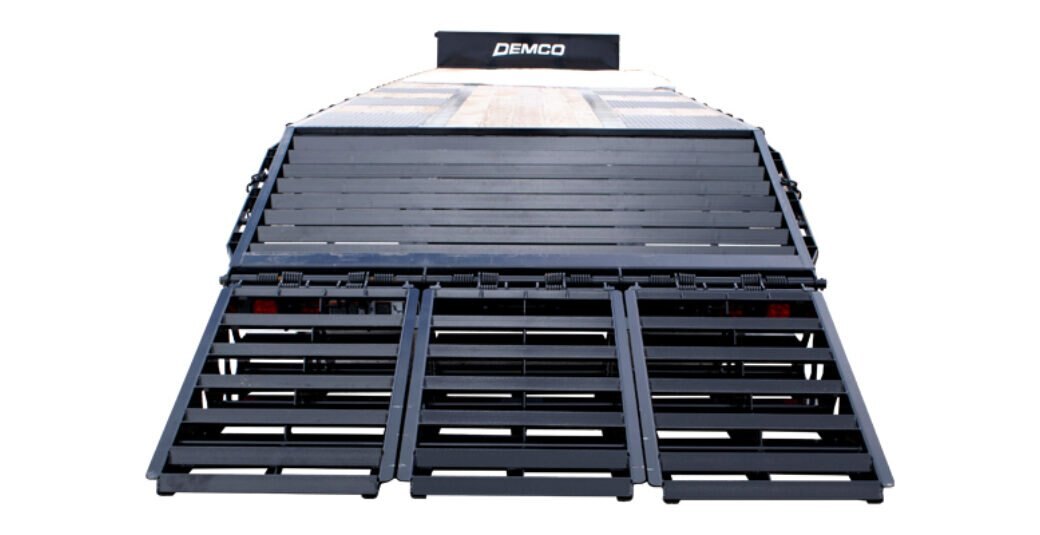

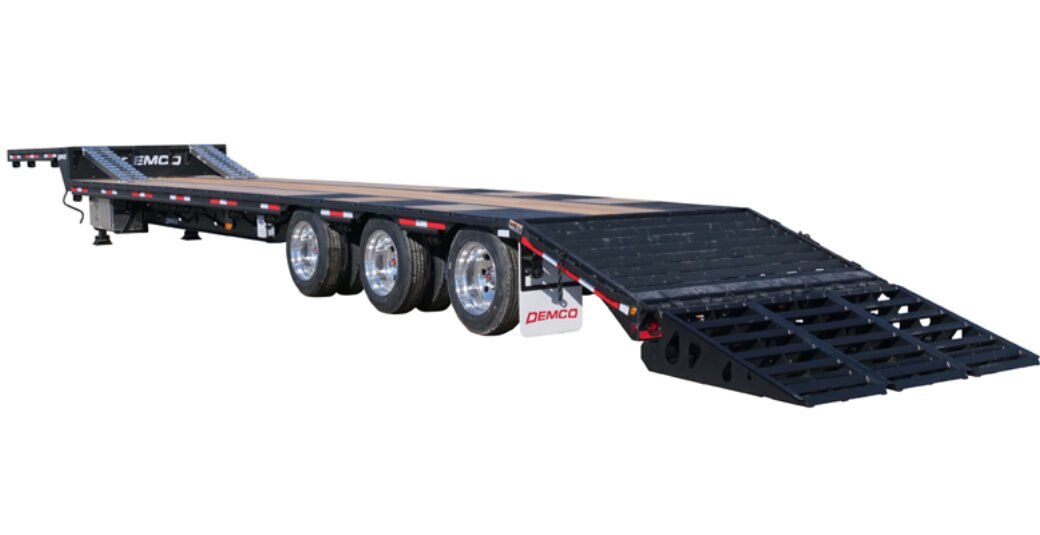

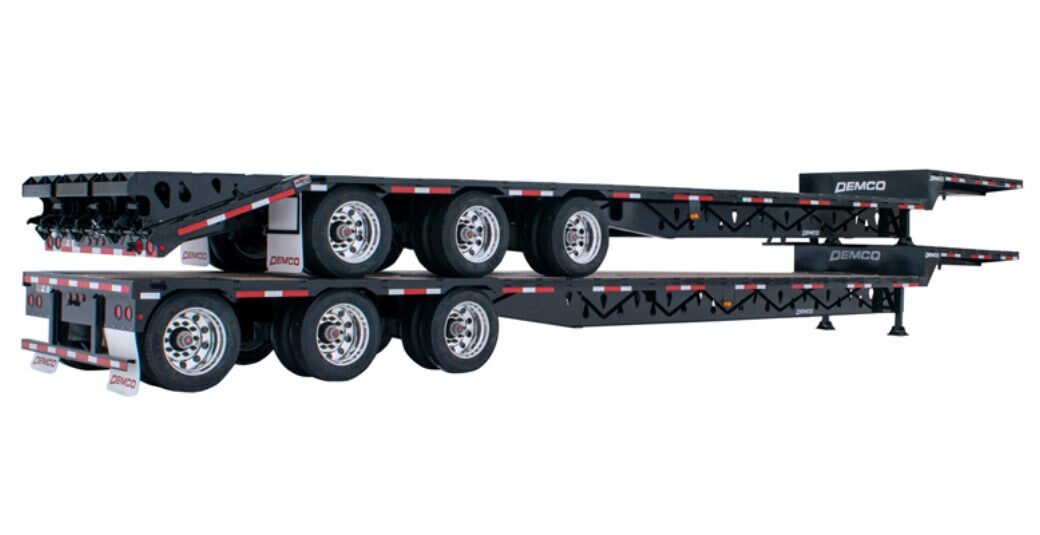

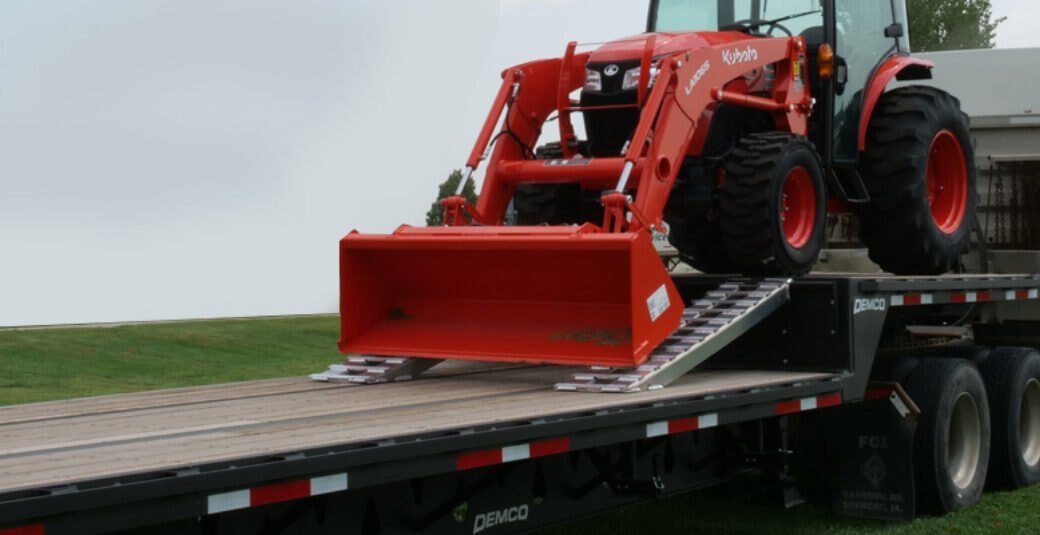

Demco Triple Axle Drop Deck Trailers

  • Demco Triple Axle Drop Deck Trailers
  • Demco Triple Axle Drop Deck Trailers
  • Demco Triple Axle Drop Deck Trailers
  • Demco Triple Axle Drop Deck Trailers
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Our triple axle trailers come with the same sturdy steel designs to handle heavy loads with maximum maneuverability. Choose a drop deck trailer with beaver tail and ramp or a Non Beaver Tail trailers that go up to 53 feet. Each triple axle trailer is equipped with standard air ride suspension and color-coded air lines.

Specifications
Model
Triple Axle Drop Deck Trailers
Category Name
Trailers
Year
2026
Sale Type
New
Manufacturer
Demco
Web
1/4" high grade 100,000 yield steel
Flange
3/8" x 5" high grade 100,000 yield steel
Brake Size
16.5" x 7"
Main Beams
Designed with Camber - built in Spencer facility
Side Rails
6" x 8.2# structural C channel
Cross Members
4" x 3.2# 80,000 yield Jr. I-beam on 16" centers
Overall Width
102"
Lower Deck Height
40-3/4"
Upper Deck Length
11'
GVWR - Triple Axles
100,000 lbs.
Transition Drop From Upper To Lower Deck
19.5"
models

Model Number

 Trailer Description Tare Weight (lbs) Closed Axle 10:1 Spread Axle Triple Axle
DD48-3 48' Triple Axle 12,840 N/A N/A yes
DD53-3 53' Triple Axle 13,720 N/A N/A yes
DD48-5-3 48' Triple Axle + 5' Beaver Tail with Twin Ramps 15,130 N/A N/A yes
features
  • Tri-Axle has standard Air Ride Suspension
  • 22.5K Arvin Meritor triple axles with Wabco ABS brakes (single axle) and 10 bolt hub piloted steel rims 100,000 lbs. GVW
  • Kingpin setting of 24”
  • Holland Atlas 55 series with 2 speed landing gear
  • Rubber mounted LED lights
  • Sealed wiring system w/ 7-way receptacle – designed by Truck-Lite™ for Demco
  • Midship turn signals on all trailers
  • Color coded air lines
  • Steel hand sanded/Phosphate washed for superior paint adhesion
  • All exterior mating surfaces are caulked prior to paint
  • Diamond Vogel polyurethane primer and paint (black)
  • Stake pockets and pipe spooling at 9” intervals
  • Rub rail of 2” x 3/8” flat steel
  • 1-1/8” x 7” Apitong flooring
  • Winch track (driver side)
  • Anti-sail mud flaps
  • D.O.T. approved conspicuity tape
  • Manifest holder
options
  • Air Ride 3 Axle Manual Dump Valve
  • Air Ride 3 Axle Electric Dump Valve
  • Air Ride Scale
  • Kingpin setting of 18"
  • ABS Installed on 2nd Axle
  • Polished Aluminum Rims
  • 255/70R 22.5 LRH Import Radial Tires
  • 255/70R 22.5 LRH Domestic Radial Dunlap SP160 Tires
  • Sliding Winches
  • Aluminum Toolbox
  • Front Bulkhead (Removable)
  • Custom Paint Color (Red, Grey, White, Blue)
literature
Demco Drop Deck Brochure - TP0003 Download
