ID # 39460179

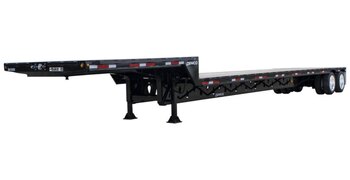

Demco Tandem Axle Drop Deck Trailers

  • Demco Tandem Axle Drop Deck Trailers
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Choose from 40 to 53 foot drop deck trailer that includes the extra security and weight bearing capacity of a tandem axle trailer design. Designed to make heavy and extra tall loads easier to maneuver, the lower bed of the steel drop deck trailer has a low center of gravity that grants more height clearance to work with.

Specifications
Model
Tandem Axle Drop Deck Trailers
Category Name
Trailers
Year
2026
Sale Type
New
Manufacturer
Demco
Web
1/4" high grade 100,000 yield steel
Flange
3/8" x 5" high grade 100,000 yield steel
Brake Size
16.5" x 7"
Main Beams
Designed with Camber - built in Spencer facility
Side Rails
6" x 8.2# structural C channel
Cross Members
4" x 3.2# 80,000 yield Jr. I-beam on 16" centers
Overall Width
102"
Lower Deck Height
40-3/4"
Upper Deck Length
11'
GVWR - Spread Axles
80,000 lbs.
GVWR - Closed Tandems
68,000 lbs.
Transition Drop From Upper To Lower Deck
19.5"
models

Model Number

 Trailer Description Tare Weight (lbs) Closed Axle 10:1 Spread Axle Triple Axle
DD40 40' Tandem Axle 10,720 yes N/A N/A
DD45 45' Tandem Axle 11,420 yes yes N/A
DD48 48' Tandem Axle 11,980 yes yes N/A
DD53 53' Tandem Axle 12,860 yes yes N/A
features
  • 3-leaf heavy duty SAF Holland spring suspensions
  • 22.5K Arvin Meritor axles with Wabco ABS brakes (single axle) and 10 bolt hub piloted steel rims 68,000 lbs. GVW
  • Kingpin setting of 24”
  • Holland Atlas 55 series with 2 speed landing gear
  • Rubber mounted LED lights
  • Sealed wiring system w/ 7-way receptacle – designed by Truck-Lite™ for Demco
  • Midship turn signals on all trailers
  • Color coded air lines
  • Steel hand sanded/Phosphate washed for superior paint adhesion
  • All exterior mating surfaces are caulked prior to paint
  • Diamond Vogel polyurethane primer and paint (black)
  • Stake pockets and pipe spooling at 9” intervals
  • Rub rail of 2” x 3/8” flat steel
  • 1-1/8” x 7” Apitong flooring
  • Winch track (driver side)
  • Anti-sail mud flaps (Demco logo)
  • D.O.T. approved conspicuity tape
  • Manifest holder
options
  • Air Ride 2 Axle Manual Dump Valve
  • Air Ride 2 Axle Electric Dump Valve or 1-2 Axle Electric Dump Valve
  • Air Ride Scale
  • Kingpin setting of 18"
  • ABS Installed on 2nd Axle
  • Polished Aluminum Rims
  • 255/70R 22.5 LRH Import Radial Tires
  • 255/70R 22.5 LRH Domestic Radial Dunlap SP160 Tires
  • Sliding Winches
  • Aluminum Toolbox
  • Front Bulkhead (Removable)
  • Custom Paint Color (Red, Grey, White, Blue)
literature
Demco Drop Deck Brochure - TP0003 Download
