ID # 39460166

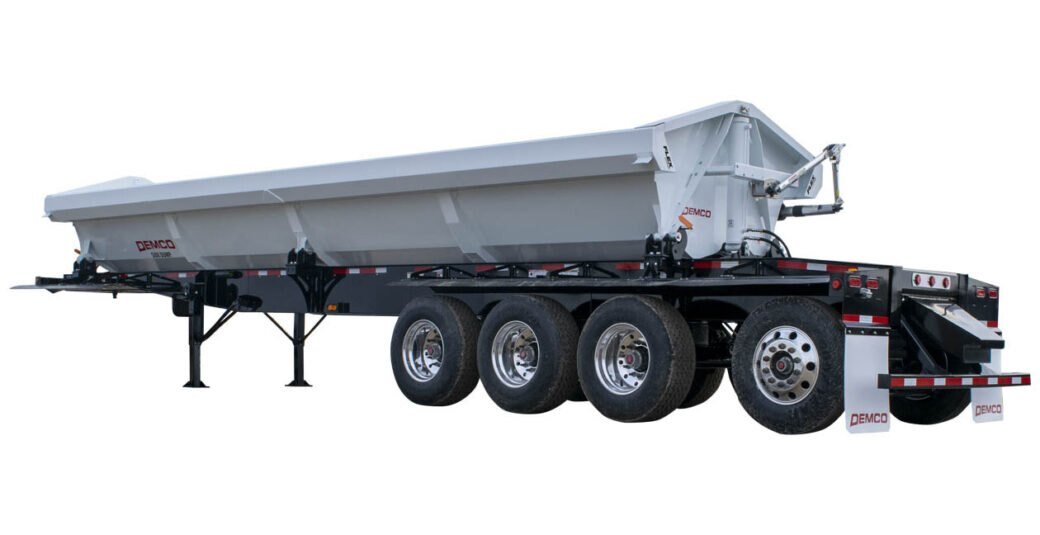

Demco Quad Axle Side Dump Trailers

  • Demco Quad Axle Side Dump Trailers
  • Demco Quad Axle Side Dump Trailers
  • Demco Quad Axle Side Dump Trailers
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Air Ride Suspension

When you want one of the most sturdy side dump trailers on the market, the quad axle side dump offers premium stability, low center of gravity and large cubic yard capacity. Made out of the quality AR450 tub Steel, the quad axle features easy left to right dump changes and a deeper tub for stable movement wherever you take it.

Specifications
Model
Quad Axle Side Dump Trailers
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Demco
features
  • Low center of gravity for stability
  • Massive Single G-Rail
  • Six Integrated Tub Pivot Points with Greaseless Pivot Bearings
  • Single Sided Dump Change
  • Quick Left to Right Dump Change
  • Dump Direction Indicators
  • 20" Deep I-beam Chassis Frame
  • Rounded Vee Dump Body Design
  • EdgeFlex Fenders
  • Bolt-On UnderRide
  • Brake size: 16.5” x 7”
  • Large Body Side Stiffener, Maintain 102" Loaded
  • 20 Sec. Dump Time (30 Sec. Cycle) @33 GPM Hydraulic Flow
  • 77-1/2" Track w/ABS on one Axle (23K#)
  • LED Lighting
options
  • 6” Dia. Dump Cylinder 62K# Payload @2250 psi
  • ¼” FLX-500 Tub with Original FlexCorner Design
  • Black, White, Yellow, or Custom Paint Color
  • ABS Installed on 2nd Axle
  • Lead Trailer Pintle Hook
  • Air Weigh Scale Kit
  • Bolt-On Extended Push Block
tire and rim options
  • 11R 22.5 LRH Domestic Radial Tires or Import Radial Tires *
  • 385/65R 22.5 LRJ Domestic Radial Tires or Import Radial Tires *
  • All Polished Aluminum Rims *
  • Outside Polished Aluminum Rims, Inside Steel Rims *
tarp options
  • Black Mesh Tarp (Roll-Rite or Aero)
  • Tarp Lock-Out Kit (with Electric over Hydraulics ONLY)
lifts
  • * 11R 22.5 and 11R 24.5 - Lifts can be dual (4) or single (2) tires.
  • ** 385/65R 22.5 - Lifts can only be single (2) tires. Lifts with steer cannot use these tires.
  • *** 385/65R 22.5 - Aluminum Rims ONLY
models

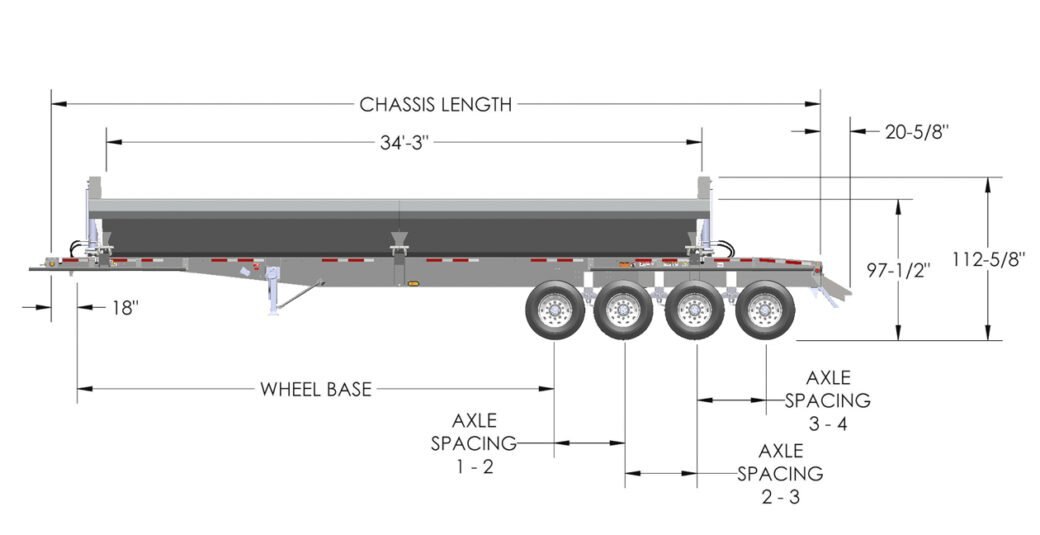

Model Number Chassis Length (Feet) Suspension Type Tub Length (Feet) Tub Volume (Cu. Yd.) Tare Weight (lbs) Lift Type Manual P/N
9CCR444AR3726 44 Air Ride 37 24.5 18,500 N/A 8C000401
9CCR444ARFL3726 44 Air Ride 37 24.5 18,500 Front Lift 8C000401
9CCR444ARFLRLS3726 44 Air Ride 37 24.5 19,200 Front Lift & Rear Lift Steer 8C000401
9CCR444AR3424 44 Air Ride 34 24.5 19,200 Rear Lift Steer N/A
9CCR444ARRLS3424 44 Air Ride 34 24.5 19,200 Rear Lift Steer 8C000402
9CCR474ARFLRL3726 47 Air Ride 37 24.5 19,500 Front Lift & Rear Lift Steer 8C000403
9CCR474ARRL3726 47 Air Ride 37 24.5 19,500 Rear Lift 8C000403
9CCR474ARFLRLS3726 47 Air Ride 37 24.5 19,500 Front Lift & Rear Lift Steer 8C000403
specifications
  • Air Ride: SAF Holland CBX23-245 Air Suspension with Integrated Axles
  • 23K Axles with Wabco ABS brakes (single axle) and 10 bolt hub piloted steel rims, 75,000 lbs. GVW
  • 5" Dia. Dump Cylinder 43K# Payload @2250 psi
  • 1/4" AR450 Steel with trademarked FlexCorner® Design
