ID # 39459415

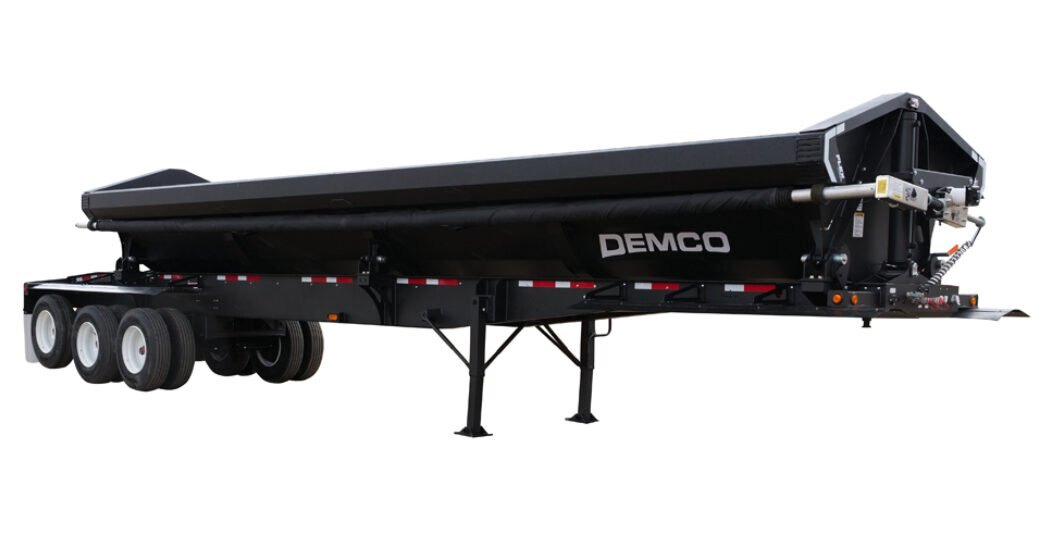

Demco Triple Axle Side Dump Trailers

  • Demco Triple Axle Side Dump Trailers
  • Demco Triple Axle Side Dump Trailers
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

The smooth action of these triple axle side dumps is paired with sturdy air or spring suspension with Wabco ABS brakes. The low center of gravity makes these side dumps easier to drive and manage as well. You can choose from a variety of options in addition to these features, such as standard feature trademark FlexCorner® design.

Specifications
Model
Triple Axle Side Dump Trailers
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Demco
features
  • Low center of gravity for stability
  • Massive Single G-Rail
  • Six Integrated Tub Pivot Points with Greaseless Pivot Bearings
  • Single Sided Dump Change
  • Quick Left to Right Dump Change
  • Dump Direction Indicators
  • 20" Deep I-beam Chassis Frame
  • Rounded Vee Dump Body Design
  • EdgeFlex Fenders
  • Bolt-On UnderRide
  • Brake size: 16.5” x 7”
  • Large Body Side Stiffener, Maintain 102" Loaded
  • 20 Sec. Dump Time (30 Sec. Cycle) @33 GPM Hydraulic Flow
  • 77-1/2" Track w/ABS on one Axle (23K#)
  • LED Lighting
options
  • 6” Dia. Dump Cylinder 62K# Payload @2250 psi
  • ¼” FLX-500 Tub with Original FlexCorner Design
  • Black, White, Yellow, or Custom Paint Color
  • ABS Installed on 2nd Axle
  • Lead Trailer Pintle Hook
  • Air Weigh Scale Kit
  • Bolt-On Extended Push Block
tire and rim options
  • 11R 22.5 LRH Domestic Radial Tires or Import Radial Tires *
  • 385/65R 22.5 LRJ Domestic Radial Tires or Import Radial Tires *
  • All Polished Aluminum Rims *
  • Outside Polished Aluminum Rims, Inside Steel Rims *
tarp options
  • Black Mesh Tarp (Roll-Rite or Aero)
  • Tarp Lock-Out Kit (with Electric over Hydraulics ONLY)
lifts
  • * 11R 22.5 and 11R 24.5 - Lifts can be dual (4) or single (2) tires.
  • ** 385/65R 22.5 - Lifts can only be single (2) tires. Lifts with steer cannot use these tires.
  • *** 385/65R 22.5 - Aluminum Rims ONLY
models
Model Number Chassis Length (Feet) Suspension Type Tub Length (Feet) Tub Volume (Cu. Yd.) Tare Weight (lbs) Lift Type Manual P/N
9CCR353AR3021 35 Air Ride 30 20.1 16,500 N/A 8C000301
9CCR403AR3424 40 Air Ride 34 22.7 17,000 N/A 8C000301
9CCR423AR3424 42 Air Ride 34 22.7 17,500 N/A 8C000302
9CCR423ARRL3424 42 Air Ride 34 22.7 17,500 Rear Lift 8C000302
9CCR443AR3424 44 Air Ride 34 22.7 17,900 N/A 8C000302
9CCR443ARRL3424 44 Air Ride 34 22.7 17,900 Rear Lift 8C000302
9CCR443AR3726 44 Air Ride 37 24.5 17,900 N/A 8C000303
9CCR443ARRL3726 44 Air Ride 37 24.5 17,900 Rear Lift 8C000303
CR463ARRL3424 46 Air Ride 34 22.7 18,000 Rear Lift 8C000304
CR473ARRL3726 47 Air Ride 37 24.5 18,200 Rear Lift 8C000306
9CCR443AR603424 44 Air Ride 34 22.7 17,500 60' Spread 8C000305
9CCR443AR60RL3424 44 Air Ride 34 22.7 17,500 60' Spread w/ RL 8C000305
9CCR443ARSPRD3424 44 Air Ride 34 22.7 17,500 Spread w/ RL N/A
9CSS3536LS 35 Spring Ride 30 20.1 16,500 N/A 8C000307
9CSS4036LS 40 Spring Ride 34 22.7 17,000 N/A 8C000307
9CSS4236LS 42 Spring Ride 34 22.7 17,500 N/A 8C000307
9CSS4436LS 44 Spring Ride 34 22.7 17,900 N/A 8C000307
specifications
  • Air Ride: SAF Holland CBX23-245 Air Suspension with Integrated Axles
  • Spring Ride: 3-leaf heavy duty SAF Holland spring suspension
  • 23K Axles with Wabco ABS brakes (single axle) and 10 bolt hub piloted steel rims, 75,000 lbs. GVW
  • 5" Dia. Dump Cylinder 43K# Payload @2250 psi
  • 1/4" AR450 Steel with trademarked FlexCorner® Design
