Demco

ID # 39459343

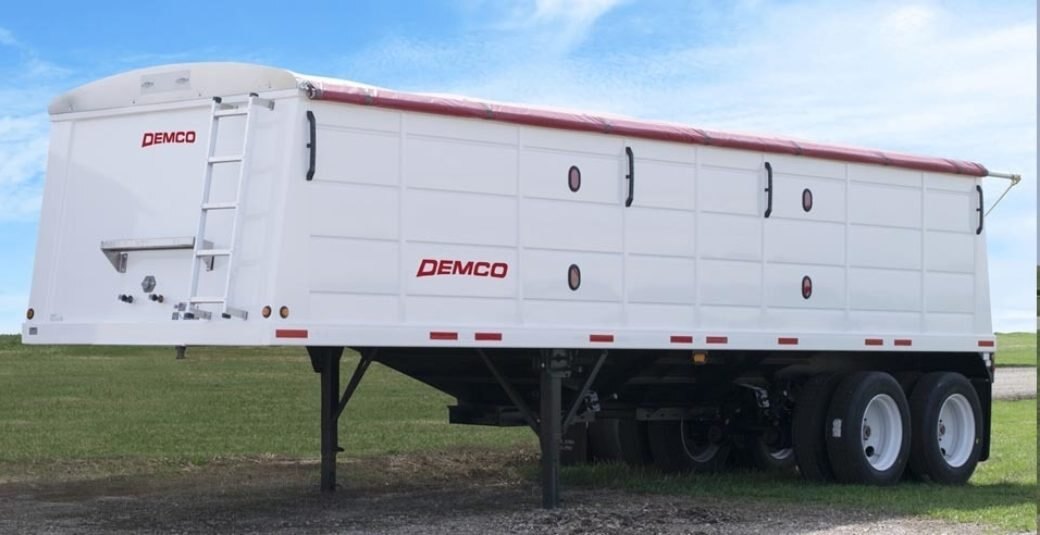

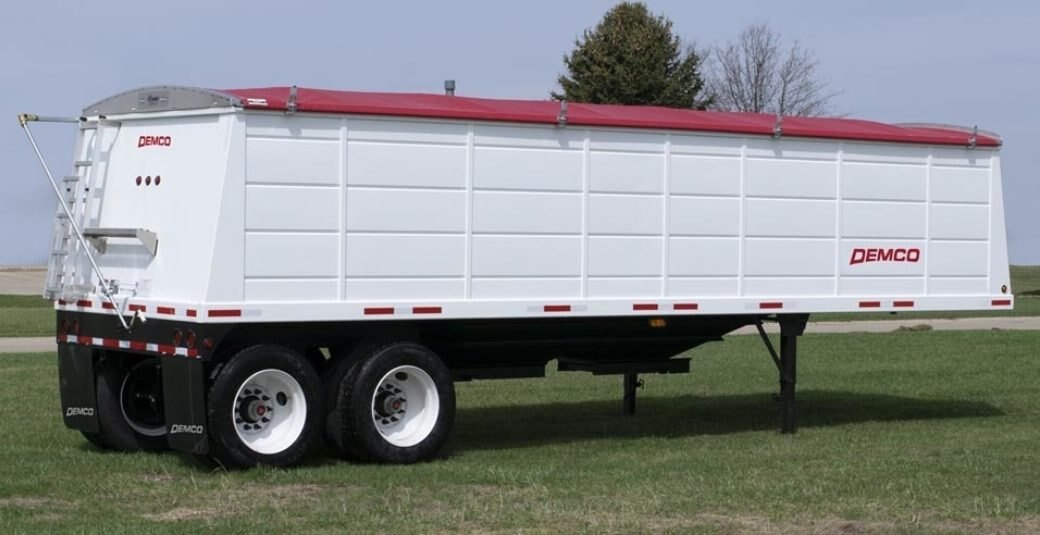

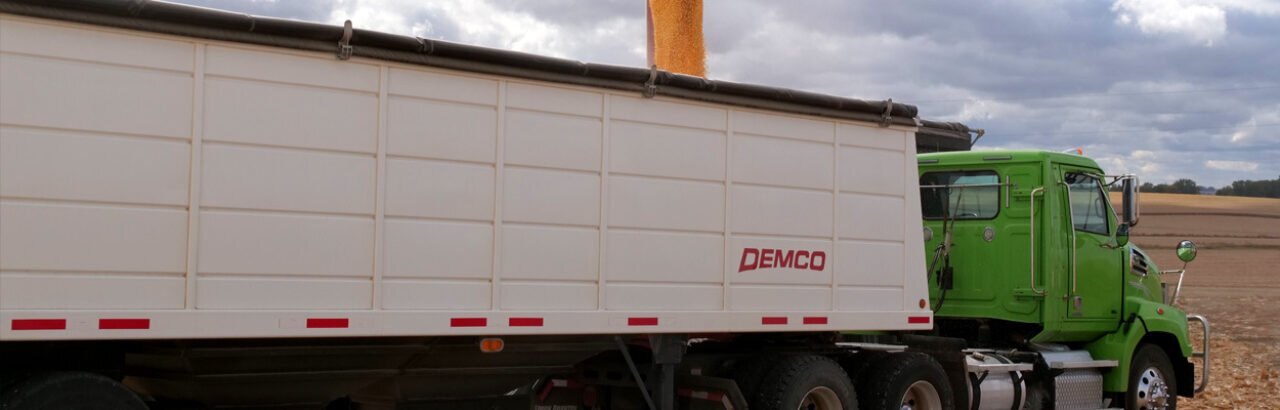

Demco Steel Grain Trailers

Videos
Call for Price
Overview

Designed by Grain Harvesters

Made by and for the working grain harvester, Demco Steel Hopper Bottom Trailers are built tough for everyday use, rain or shine.

Designed with ease of use and rugged durability in mind, our steel hopper bottom trailers are constructed with heavy, 14-gauge steel to minimize twisting and to meet the daily demands of our customers. Many will appreciate our standard 66" side walls, which provides a full view into the hopper from the combine cab, while our unique and exclusive vertical rib wall construction helps you save on gas by reducing air drag and preventing unsightly rock chips.

As a leading manufacturer of equipment for today's farms, shops, shipping and leisure needs, Demco has stood behind all of our products for over 70 years.

Specifications
Model
Steel Grain Trailers
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Demco
how many bushels does a grain trailer hold?
Trailer Length 24' 28' 30' 34' 36' 38' 40' 42'
Number of Hoppers 1 1 2 2 2 2 2 2
New 22,500# Axles 1 2 2 2 2 2 2 2
Cubic Feet 810 855 1013 1152 1191 1255 1290 1324
Leveled Bushels (Approx.) 695 715 815 922 953 1010 1035 1060
Heaped Bushels (Approx.) 740 765 870 985 1020 1100 1120 1135
King Pin to Landing Leg Clearance 83" 87" 99" 80" 98" 107" 95" 90"
King Pin Setting 15" 15" 15" 18" 24" 15" 18" 24"
Floor Slope 28 28 28 35 35 35 31 35
Weight Air-ride 6,840 9,240 10,040 10,440 10,640 10,940 11,240 11,440
Weight Spring Ride 6,600 9,000 9,800 10,200 10,400 10,700 11,000 11,200
design & performance characteristics
  • 66” Side walls for full view into hopper from combine cab
  • Inverted horizontal ribs for easier pulling and less rock chipping
  • 3” x 6” x 1/4” Heavy wall tubular steel to minimize twisting
  • Hopper and wall skins constructed of 14 ga steel
  • 2” x 2” Wall upright stabilizers constructed of 11 ga steel
  • 3” x 4” Top rail constructed of 11 ga steel
  • 30” x 20” Hopper opening
  • 25” Hopper clearance
  • 98” Overall width
  • 9.6" Height-ground to top rail
  • 35 degree hopper slope
features
  • 3-leaf heavy duty Hutch 9700 spring suspensions
  • 22.5K Arvin Meritor axles with Wabco ABS brakes (single axle) and 10 bolt hub piloted steel rims
  • Holland Atlas 55 2-speed drop leg landing gear (24’, 28’, & 30’ trailers)
  • Holland Atlas 55 2-speed landing gear (34’ – 42’ trailers)
  • Full center dividers on trailers 30’ and up
  • Rubber mounted LED lighting & sealed wiring system, 7 way receptacle by Truck-Lite™
  • Color coded brake lines
  • Diamond Vogel polyurethane primer and paint (standard color white)
  • Undercoated with XRC2001 synthetic rubber coating
  • Aluminum ladders (front & rear)
  • Ladder rungs on inside of trailer
  • Hopper sight windows
  • Shur-Co manual roll tarp (Black, White, Red, Blue)
  • Easy off tarp stops
  • Roll tube deflectors
  • Demco vinyl trailer graphics
  • Anti-sail Mudflaps (Demco logo)
  • D.O.T. approved conspicuity tape
  • Manifest Holder
options
  • Stainless Steel Corners
  • Air Ride Suspension (Not Available on 24')
  • Air Ride Manual Dump Valve with Scale
  • 2-Speed or Electric Hopper
  • Side Discharge Hopper Chute
  • Pintle Hook
  • Steel & Polished Aluminum Rims or All Polished Aluminum Rims
  • 11R 22.5 LRG Import Radial Tires or Domestic Radial Tires
  • 11R 24.5 LRG Import Radial Tires or Domestic Radial Tires
  • Heavy Duty Jack Brace

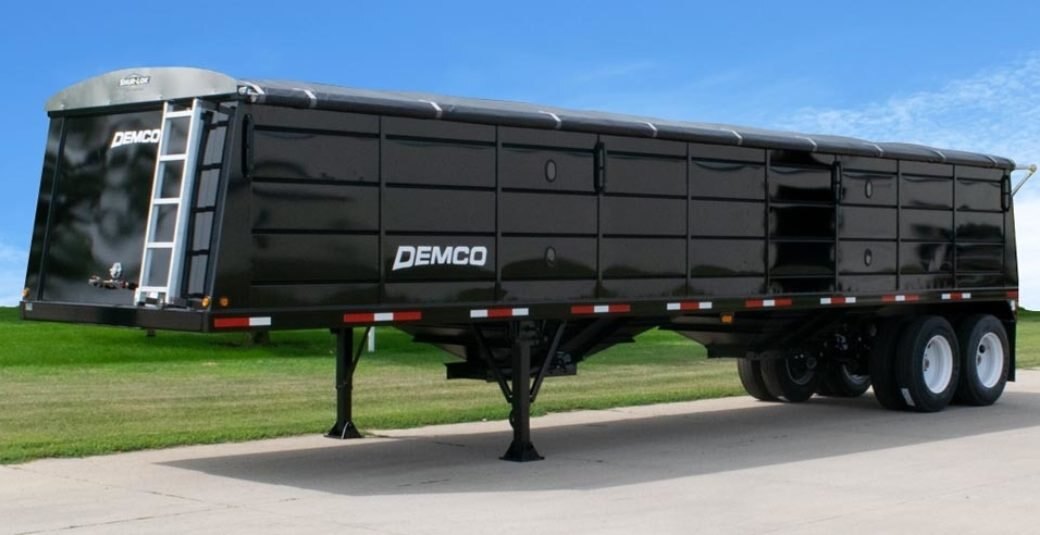

  • Black, Red, Navy Blue, Gray, or Custom Paint Color
  • Shur-Co Electric Roll Tarp with Remote
  • Custom Tarp & Graphic Color
  • Tarp Saver Cord (Set of 2)
  • Double Ridge Strap
  • Tarp Cable Return: Front, Rear, or Front & Rear
  • Vented Hopper
  • Aluminum Platforms: Front, Rear, or Front & Rear
  • Front Mudflaps
  • Hopper Work Lights
