• 1 ¾ - 1000 RPM PTO
• Automatic reset “cut-out” clutch with overrunning clutch to protect auger driver and tractor PTO

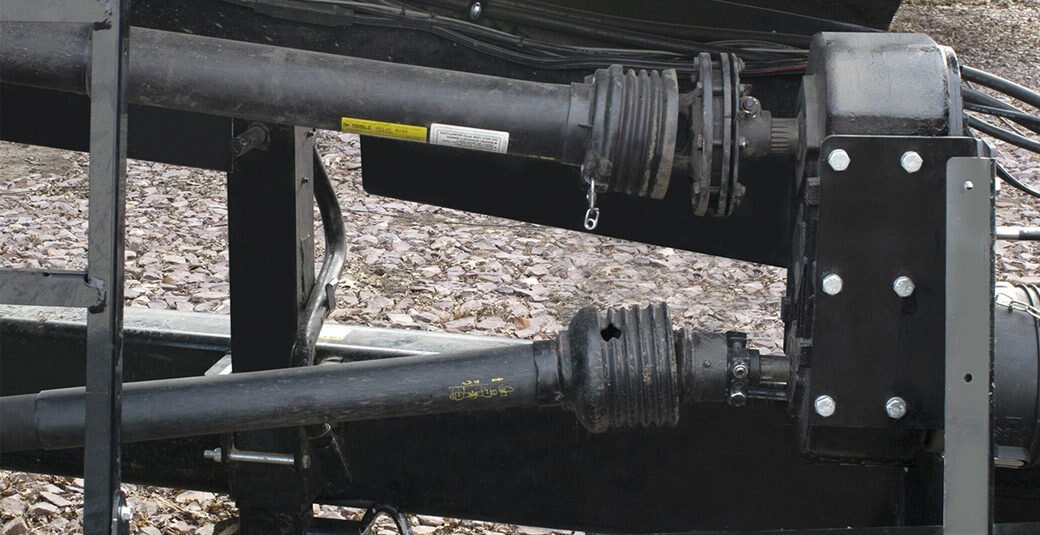

• PTO driven drivetrain. Gearbox includes 2 output PTO shafts (1 for
• Horizontal auger and 1 for vertical auger). NO Pulleys or Belts!
• Adjustable austempered cast hitch, fits category 4 or 5 hammer strap tractor drawbar
• 22” diameter vertical auger with 3/8” flighting and Posi-Drive connection

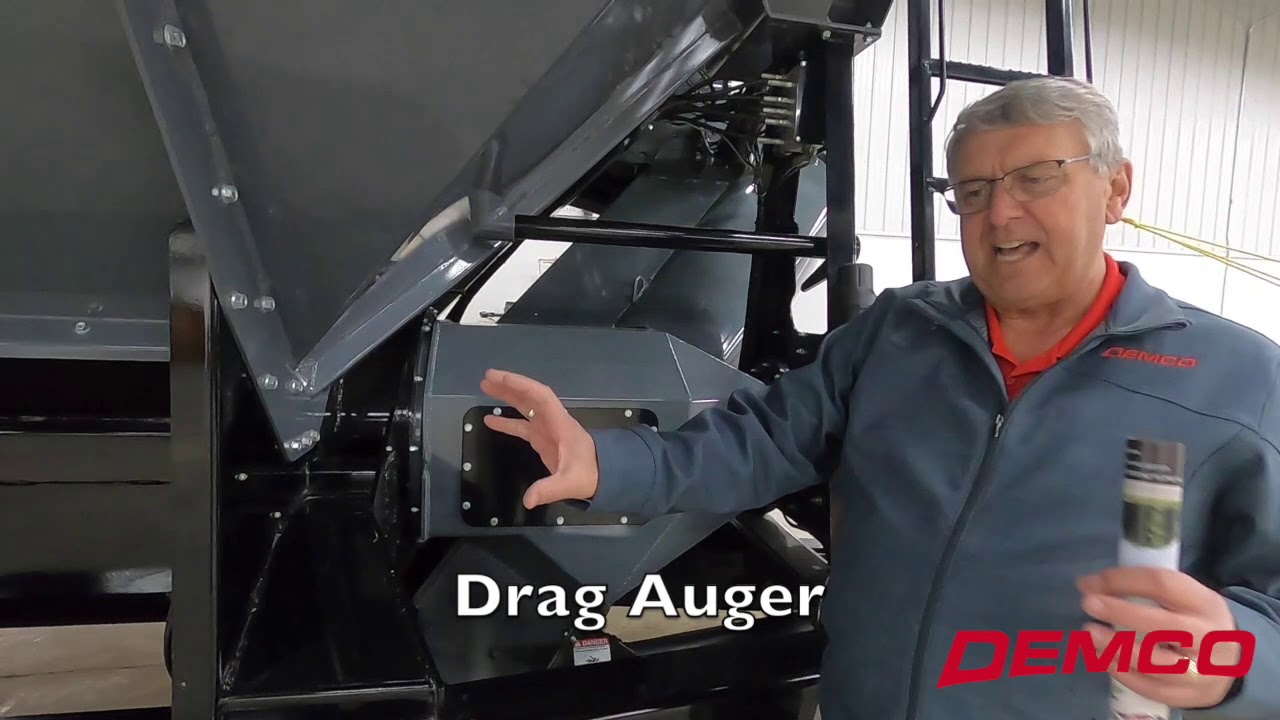

• 20” horizontal drag auger
• UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear and faster conveying
• Forward reach auger for optimum operator visibility
• Forward reach auger adjusts vertically from 11’8” to 15’7” to help prevent grain spilling
• Auger folds within the width of the box for compact transporting and storage
• Grain viewing windows
• 10,000 lb. drop-leg tongue jack with separate storage position provides tighter turning radius
• Hand wheel operated clean-out door at bottom of auger for easy post season cleanout
• Reflective decals & LED light for high visibility
• Narrow transport width – 12’2”
• Low side cart height ONLY 11’ for better clearance
• Low center of gravity for sidehill stability
• 6 lever operated doors for trough cleanout
• Ergonomic pendant operates “1 touch” auger fold, adjustable spout, unload auger height adjust, and drag auger door
• Ergonomic pendant requires 1 remote outlet
• Roll tarp
• 5-point scale system (monitor not included)
• Camoplast Trailed Track System - Reduces ground pressure by 30-80% versus tires, reduces the number of contact points, increases mobility and field access especially in softer footing conditions, and maximizes the performance potential of the large capacity carts.

NOTE: Demco grain carts are not to be towed down the road loaded

OPTIONS

- Electric roll tarp

- Auto gate shutoff for drag auger doors (requires the wireless scale monitor)
