ID # 14478694

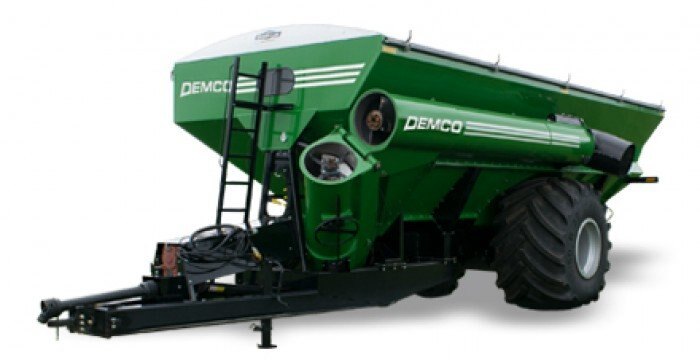

Demco 1322 Grain Cart

  • Demco 1322 Grain Cart
  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
With a capacity of 1,300 + bushels, 20” horizontal drag auger, and a 22” unload auger that has height adjustment, the model 1322 grain cart will kick your harvest into high gear.
Features
  • 1 ¾ - 1000 RPM PTO
  • Automatic reset “cut-out” clutch with overrunning clutch to protect auger driver and tractor PTO
  • PTO driven drivetrain. Gearbox includes 2 output PTO shafts (1 for
  • Horizontal auger and 1 for vertical auger). NO Pulleys or Belts!
  • Adjustable austempered cast hitch, fits category 4 or 5 hammer strap tractor drawbar
  • 22'' diameter vertical auger with 3/8” flighting and Posi-Drive connection
  • 20'' horizontal drag auger
  • UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear and faster conveying
  • Forward reach auger for optimum operator visibility
  • Forward reach auger adjusts vertically from 11’8” to 15’7” to help prevent grain spilling
  • Auger folds within the width of the box for compact transporting and storage
  • Grain viewing windows
  • 10,000 lb. drop-leg tongue jack with separate storage position provides tighter turning radius
  • Hand wheel operated clean-out door at bottom of auger for easy post season cleanout
  • Reflective decals & LED light for high visibility
  • Narrow transport width – 12’2''
  • Low side cart height ONLY 11’ for better clearance
  • Low center of gravity for sidehill stability
  • 6 lever operated doors for trough cleanout

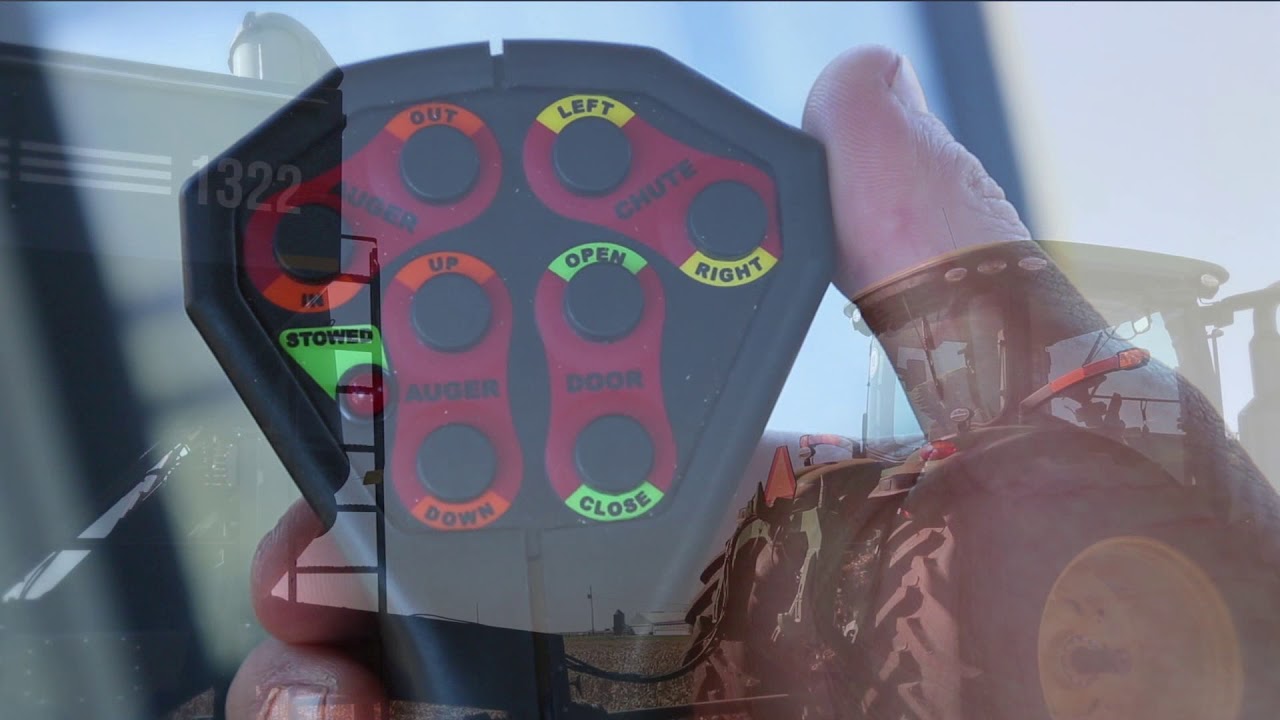

  • Ergonomic pendant operates “1 touch” auger fold, adjustable spout, unload auger height adjust, and drag auger door
  • Ergonomic pendant requires 1 remote outlet
  • Roll tarp
  • 5-point scale system (monitor not included)
  • Optional electric roll tarp
  • Optional auto gate shutoff for drag auger doors (requires the wireless scale monitor)
  • Bushel capacity: 1122 - 1100+ bushels 1322 - 1300+ bushels
  • Bushel capacity measured with #2 corn at 15% moisture content (56 lb. test
    weight)



Specifications
Model
1322 Grain Cart
Category Name
Agriculture
Year
2019
Sale Type
New
Manufacturer
Demco
Capacity
1330
Vertical Unload Auger
22''
Horizontal Drag Auger
20''
Unloading Time (bu/min )
600
Spindle Size
5 1/2
Tractor HP Required
275
Hub Size
10 bolt or 20 bolt
Tread Width
12’2''
Tongue Weigth Empty
4120 lbs
Tongue Weight Loaded
6000 lbs.
Total Weight- Wheels/Tires & Tarp
24,460 lbs.
Rear Ground Clearance
2’10''
