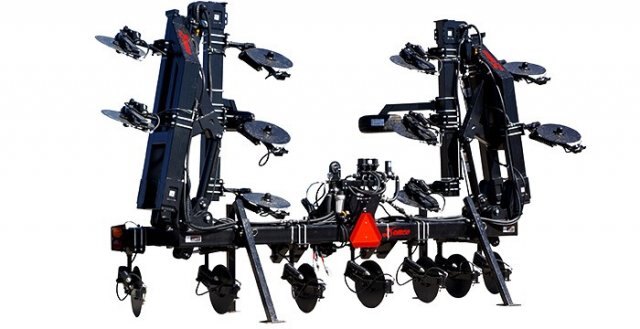

Demco 60’ 3 Point Fertilizer Toolbar

Videos
Call for Price
Overview

Built with Strength to Last

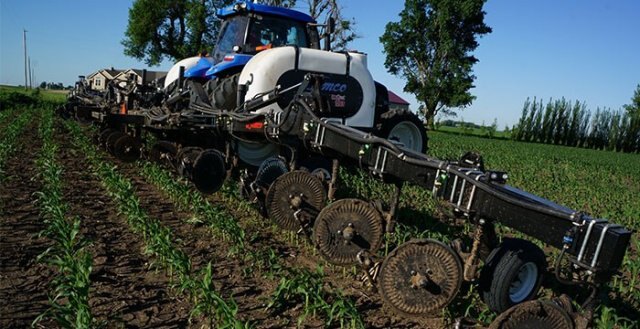

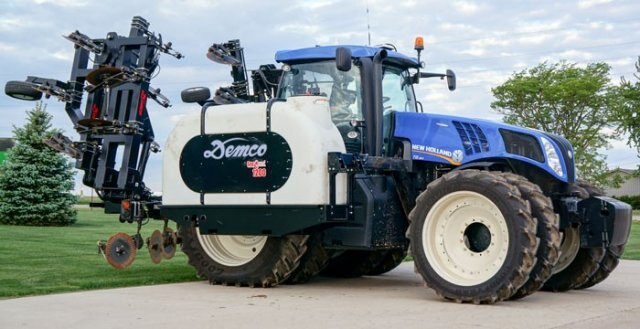

Our 60’ 3 Point Mounted Toolbar is built with strength to last and features to perform for you in the field.  Paired with our SideQuest saddle tanks, the 60’ 3 point toolbar is a very effective and efficient way to apply your fertilizer when your crop needs it.

  Features
  • Double bar design provides maximum strength.
  • Can fold to 40’ by folding the outer wings.
  • Wing “kick-up” feature raises outer wings 16 degrees to avoid crop damage when turning at the end of the field.
  • Hydraulic down pressure keeps the coulters in the ground for precise depth control and can be adjusted without the need of tools.
  • Built-in flex allows inner wing to move 8 degrees above & beyond horizontal.
  • Separate hydraulic blocks for wing “kick-up” and folding cylinders prevent  the coulters from crashing into the ground when unfolding the bar.
  • Center linkage with 2 Cylinders – one for folding and one for wing “kick-up”.
  • 60 mesh feeder line filters.
  specs
  • Four 20.5 x 8” 10 ply gauge wheels
  • 2” plumbing supply line, 1 ½” pressure line, ¾” feeder line, & 3/8” from check valve to coulter
  • Transport height of 13’ 6”
  • Transport width of 19’ 7” (w/ 30” coulter spacing)
  • Toolbar weight without coulters – 6,000 lbs
  • Coulters add approximately 100 lbs each



Specifications
Model
60’ 3 Point Fertilizer Toolbar
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Demco
