ID # 13718970

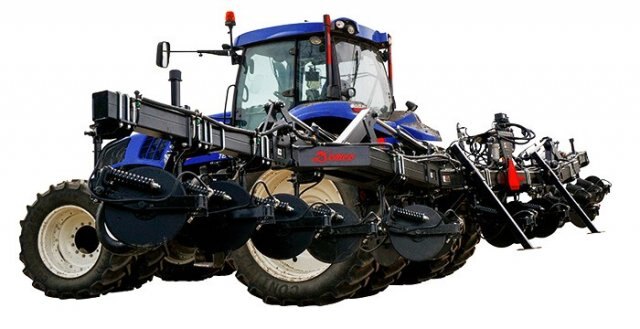

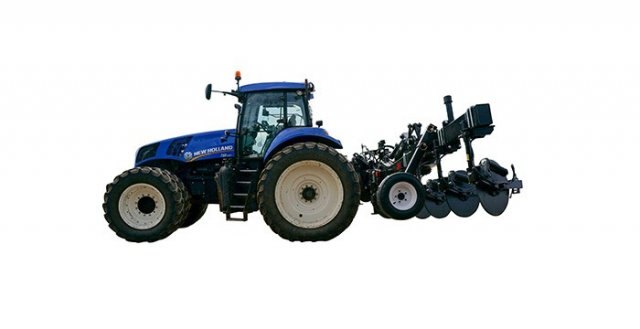

Demco 40’ 3 Point Fertilizer Toolbar

  • Demco 40’ 3 Point Fertilizer Toolbar
  • Demco 40’ 3 Point Fertilizer Toolbar
  • Demco 40’ 3 Point Fertilizer Toolbar
  • Demco 40’ 3 Point Fertilizer Toolbar
  • Demco 40’ 3 Point Fertilizer Toolbar
  • Video Button Hqdefault
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Excellent Performance for Side-Dressing

The Demco 40’ 3 point mounted fertilizer toolbar is built with high quality and features for you to get the job done.  With our Saddle Tank Systems and Lil’ Thumper Ground Driven Pumps, we are no stranger to fertilizer equipment.

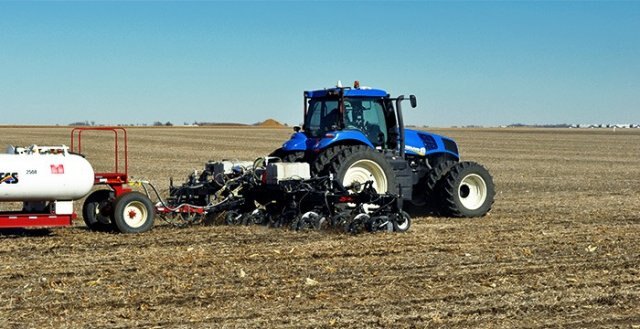

Our SideQuest Saddle Tank Systems are the perfect fit for our 40’ 3 point fertilizer toolbar.  This setup will provide you with good capacity for side-dressing, with excellent visibility in the field, and superior maneuvering which will minimize crop damage.
  Features
  • Bar uses a center linkage with two cylinders attached. One cylinder is for folding and the second is for wing “Kick Up”. This feature “kicks” the wings up 8 degrees to avoid knocking crops down when turning on headlands.
  • The “Kick Up” cylinder and “Folding” cylinder are on two separate hydraulic blocks so when the tool bar is unfolded the bar will be in the “Kicked” up position. This feature prevents the coulters from crashing into the ground.
  • Hydraulic down pressure to keep coulters in the ground. Down pressure can easily be adjusted without the use of tools.
  • The 40' bar has built in flex that allows the inner wing to move 8 degrees above and below horizontal.

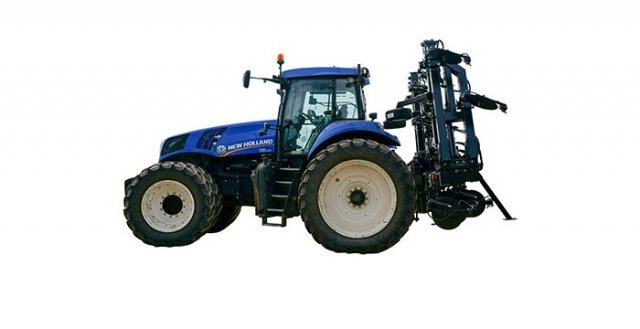

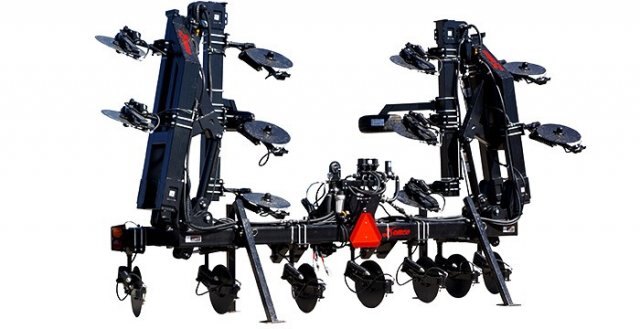

  • The bar can be folded from 40' to 30' by folding the outer wings.
  • Category “3” or “4” rear mount brackets may be used with “Quick Attach” three point hookup.
  • Transport width - 19' 7"
  specs
  • Transport width is 19’ 7”.
  • Weight is 3,992 lbs (without coulters).



Specifications
Model
40’ 3 Point Fertilizer Toolbar
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Demco
