Overview

Designed by Grain Harvesters

Maurer Manufacturing is the leader in the industry for steel grain hopper trailers. Designed for the grain harvester by the grain harvester, our steel grain trailer is known as the work horse in the industry.

Our heavy wall tubular steel frame has been designed to minimize twisting.  Hopper and wall skins are 14 gauge steel to provide the durability that our customers demand.  Our standard 66” side walls provide a full view into the hopper from the combine cab.  Maurer’s exclusive horizontal rib wall construction significantly reduces air drag and rock chip damage which equates to fuel savings and extended paint life.
  Features
  • 3-leaf heavy duty SAF Holland spring suspensions
  • 22.5K Arvin Meritor axles with Wabco ABS brakes (single axle) and 10 bolt hub piloted rims
  • Holland Atlas 55 2-speed drop leg landing gear (24’ 28’ & 30’ trailers)
  • Holland Atlas 55 2-speed landing gear (34’ – 42’ trailers)
  • Full center dividers on trailers 30’ and up
  • Rubber mounted LED lighting & sealed wiring system, 7 way receptacle by Trucklight
  • Color coded brake lines
  • Diamond Vogel polyurethane primer and paint (standard color white)
  • Undercoated with XRC2001 synthetic rubber coating
  • Aluminum ladders (front & rear)
  • Ladder rungs on inside of trailer
  • Hopper sight windows
  • Shur-Co manual roll tarp (Black, White, Red, Blue)
  • Easy off tarp stops
  • Roll tube deflectors
  • Maurer vinyl trailer graphics
  • Anti-sail Mudflaps (Maurer logo)
  • D.O.T. approved conspicuity tape
  • Manifest Holder

Design and Performance Characteristics

  • 66” Side walls for full view into hopper from combine cab
  • Inverted horizontal ribs for easier pulling and less rock chipping
  • 3” x 6” x 1/4” Heavy wall tubular steel to minimize twisting
  • Hopper and wall skins constructed of 14 ga steel
  • 2” x 2” Wall upright stabilizers constructed of 11 ga steel
  • 3” x 4” Top rail constructed of 11 ga steel
  • 30” x 20” Hopper opening

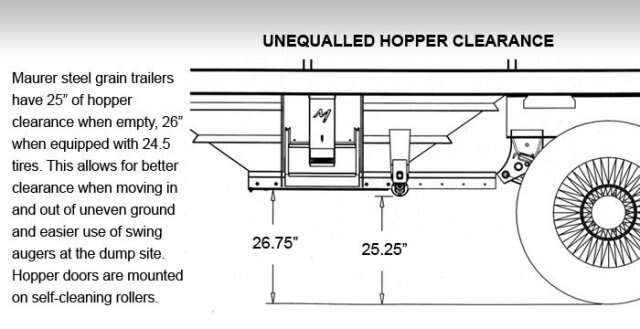

  • 25” Hopper clearance
  • 98” Overall width
  specs

24' STEEL GRAIN TRAILER

  • Height-Ground to Top Rail - 9.6"
  • Number of Hoppers - 1
  • Hopper Clearance Empty (Approx.) - 25"
  • New 22,500# Axles - 1
  • Cubic Feet - 810
  • Leveled Bushels (Approximate) - 695
  • Heaped Bushels (Approximate) - 740
  • King Pin to Landing Leg Clearance – 83”
  • King Pin Setting – 15”
  • Hopper Slope - 35
  • Floor Slope - 28
  • Weight Air-ride - 6,840
  • Weight Spring ride – 6,600

28' STEEL GRAIN TRAILER

  • Height-Ground to Top Rail - 9.6"
  • Number of Hoppers - 1
  • Hopper Clearance Empty (Approx.) - 25"
  • New 22,500# Axles - 2
  • Cubic Feet - 855
  • Leveled Bushels (Approximate) - 715
  • Heaped Bushels (Approximate) - 765
  • King Pin to Landing Leg Clearance – 87”
  • King Pin Setting – 15”
  • Hopper Slope - 35
  • Floor Slope - 28
  • Weight Air-ride - 9,240
  • Weight Spring ride – 9,000

30' STEEL GRAIN TRAILER

  • Height-Ground to Top Rail - 9.6"
  • Number of Hoppers - 2
  • Hopper Clearance Empty (Approx.) - 25"
  • New 22,500# Axles - 2
  • Cubic Feet - 1013
  • Leveled Bushels (Approximate) - 815
  • Heaped Bushels (Approximate) - 870
  • King Pin to Landing Leg Clearance – 99”
  • King Pin Setting – 15”
  • Hopper Slope - 35
  • Floor Slope - 28
  • Weight Air-ride - 10,040
  • Weight Spring ride -9,800

34' STEEL GRAIN TRAILER

  • Height-Ground to Top Rail - 9.6"
  • Number of Hoppers - 2
  • Hopper Clearance Empty (Approx.) - 25"
  • New 22,500# Axles - 2
  • Cubic Feet - 1152
  • Leveled Bushels (Approximate) - 922
  • Heaped Bushels (Approximate) - 985
  • King Pin to Landing Leg Clearance – 80”
  • King Pin Setting – 18”
  • Hopper Slope - 35
  • Floor Slope - 35
  • Weight Air-ride - 10,440
  • Weight Spring ride -10,200

36' STEEL GRAIN TRAILER

  • Height-Ground to Top Rail - 9.6"
  • Number of Hoppers - 2
  • Hopper Clearance Empty (Approx.) - 25"
  • New 22,500# Axles - 2
  • Cubic Feet - 1191
  • Leveled Bushels (Approximate) - 922
  • Heaped Bushels (Approximate) - 985
  • King Pin to Landing Leg Clearance – 98”
  • King Pin Setting – 24”
  • Hopper Slope - 35
  • Floor Slope - 35
  • Weight Air-ride - 10,640
  • Weight Spring ride – 10,400

38' STEEL GRAIN TRAILER

  • Height-Ground to Top Rail - 9.6"
  • Number of Hoppers - 2
  • Hopper Clearance Empty (Approx.) - 25"
  • New 22,500# Axles - 2
  • Cubic Feet - 1255
  • Leveled Bushels (Approximate) - 1010
  • Heaped Bushels (Approximate) - 1100
  • King Pin to Landing Leg Clearance – 107”
  • King Pin Setting – 15”
  • Hopper Slope - 35
  • Floor Slope - 35
  • Weight Air-ride - 10,940
  • Weight Spring ride -10,700

40' STEEL GRAIN TRAILER

  • Height-Ground to Top Rail - 9.6"
  • Number of Hoppers - 2
  • Hopper Clearance Empty (Approx.) - 25"
  • New 22,500# Axles - 2
  • Cubic Feet - 1290
  • Leveled Bushels (Approximate) - 1035
  • Heaped Bushels (Approximate) - 1120
  • King Pin to Landing Leg Clearance – 95”
  • King Pin Setting – 18”
  • Hopper Slope - 35
  • Floor Slope - 31
  • Weight Air-ride - 11,240
  • Weight Spring ride – 11,000

42’ STEEL GRAIN TRAILER

  • Height-Ground to Top Rail - 9.6"
  • Number of Hoppers - 2
  • Hopper Clearance Empty (Approx.) - 25"
  • New 22,500# Axles- 2
  • Cubic Feet - 1324
  • Leveled Bushels (Approximate) - 1060
  • Heaped Bushels (Approximate) - 1135
  • King Pin to Landing Leg Clearance – 90”
  • King Pin Setting – 24”
  • Hopper Slope - 35
  • Floor Slope - 35
  • Weight Air-ride - 11,440
  • Weight Spring ride – 11,200



Specifications
Model
Steel Grain Trailers
Category Name
Trailers
Year
2017
Sale Type
New
Manufacturer
Demco
