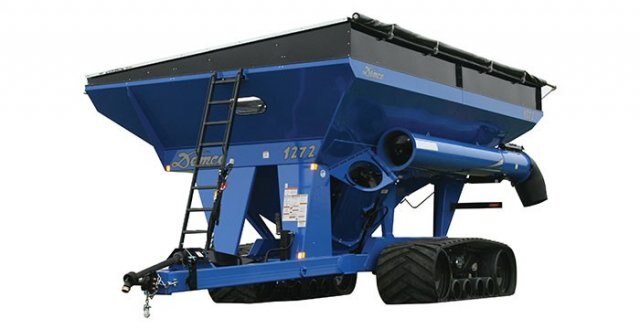

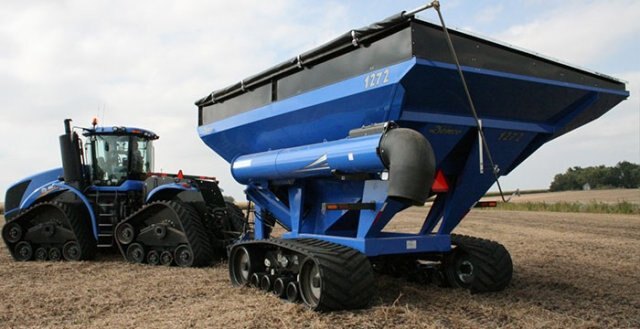

Demco 1272 Grain Cart

  • Demco 1272 Grain Cart
  • Demco 1272 Grain Cart
  • Demco 1272 Grain Cart
  • Demco 1272 Grain Cart
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Operator Friendly Features

The Demco model 1272 is one of our “next generation” grain carts.  With a capacity of 1,270 + bushels and a 20” unload auger, this grain cart is equipped to effectively and efficiently bring in your harvest.

Our Posi-Drive auger coupler, UltraFlyte™ auger flighting, automatic reset cut-out clutch, L.E.D. lights, and forward reaching corner auger are high quality features that come standard with this grain cart.  Along with these features, our durable construction, high quality paint, and operator friendly features will make this grain cart worth your investment.

 Features
  • 1000 RPM PTO
  •  Hydraulic drive (35 GPM minimum oil flow required). - See more at: http://demco-products.com/agricultural-products/grain-handling-equipment/grain-carts/1272-grain-cart/#sthash.NfrQ2svd.dpuf
  •  Automatic reset “cut-out” clutch with overrunning clutch to protect auger drive and tractor PTO
  •  20" diameter balanced auger with 3/8" flighting and Posi-Lock connection.
  •  UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear and faster conveying.
  •  Auger positioned for operator visibility.
  •  Auger folds within the width of the box for compact transporting and storage.
  •  Grain viewing windows.
  •  Welded box construction with silicone sealed seams resists rust and corrosion.
  •  7000 lb. drop-leg tongue jack with separate storage position provides tighter turning radius.
  •  Hand wheel operated clean-out door at bottom of auger for easy post season cleanup.
  •  LED Tail, flasher/turn signal lights and auger spotlight for nighttime operation.
  •  Transport width with single wheels: 12'
  •  Transport safety chain.
  •  Adjustable auger spout.
  •  Optional roll top tarp.
  •  Optional ergonomic pendant control.
  •  Optional wireless auto weighing system.
  •  (For details go to www.agscales.com)
 Specifications
  •   Capacity- 1270+ Bushels
  •  Balanced Auger Size- 20"
  •  Unloading Time- 2 1/2 mintues
  •  Spindle Size-
  •  Tractor HP Required- 200+
  •  Hub Size- 10 Bolt – 13.19”
  •  Tread Width (Standard)- 112”
  •  Tread Width (Optional)- NA
  •  Tongue Frame- 4” x 10”
  •  Tongue Weight- (Empty)- 1750 lbs
  •  Tongue Weight- (loaded)- 6000 lbs
  •  Roll Top Tarp- Optional
  •  Scale- Optional
  •  Weight/Wheels & Tires- 20,500 lbs
  •  Physical Size/Auger Extends to Side- 9’7””
  •  Physical Size/Box Width (Transport Width)- 14' 5"
  •  Physical Size/Height, Low Side- 11' 3"
  •  Physical Size/Axle Ground Clearance- 16”
  •  Physical Size/Auger Extend to Front- 4' 4"
  •  Physical Size/Box Length- 24’1”
  •  Physical Size/Box Height (High Side)- 12’ 5”
  •  Physical Size/Total Length- 30' 10"
  •  Physical Size/Axle to Tongue Length- 19' 2"
  •  Physical Size/Drawbar/Tongue Height- 20”
  •  Physical Size/Auger Clearance Height- 13’ 9”







Specifications
Model
1272 Grain Cart
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
Demco
Roll Top Tarp
Optional
