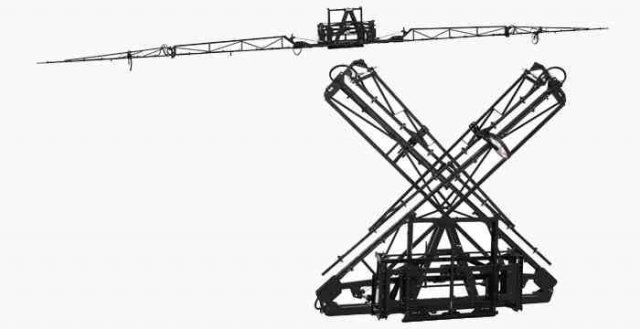

• The hydraulic X-fold boom requires two sets of remote outlets and has auto level ride and shock-spring flotation.
• Spring loaded cable ride for cushioning and less swing.
• Hydraulic boom wing leveling.
• Wings fold independently.
• Outer wing breakaway.
• Easy access to 3-point pins and hydraulic hookups.
• Available in three versions: 3-point tractor mount, trailer mount or rear mounted tank unit.
• Transport width: 10' 8"
• Transport height: 11' 9" (at a 20" spraying height)
• All booms are available with 3/4" high volume plumbing and TeeJet® drip free diaphragm check nozzles with stainless steel boom and hose clamps spaced at 20".
• Trailer mounts include hydraulic height adjuster (24" travel).

NOTE: Factory setup is standard. Wings may be removed for shipping.
