• The 1050 gallon polyethylene tank has a 16" flip-top lid and 2 high volume jet agitators. It's molded-in trough drains spills to rear of sprayer. The 100 gallon 2 stage sump provides optimum  tank drainage and decreases sloshing.
• External liquid site gauge
• 120 gallon rear mounted rinse tank
• 2 1⁄2 gallon hand wash tank
• ¼" steel-formed frame with 30" ground clearance, reducing crop damage.
• Fold-away ladder provides easy access to the large work platform, for added safety when filling tank.
• One of the shortest “hitch pin to axle” lengths in the industry - 140"
• 7000 lb. tongue jack
• Large storage compartment conveniently located for storing extra nozzles, clamps, etc.
• Single tube hitch frame allows for improved turning. The cast hitch can be adjusted vertically in 1 1⁄2" increments.
• 13.6 x 38 bias tires or 320 / 90R46 radial tires.
• Pump and plumbing are center mounted allowing for shorter hoses and improved pump priming.
• 50 mesh main filter and 80 mesh feeder line filters prevent tip plugging.
• Centrally located controls for convenient valve operation
• 160 lb. glycerin-filled gauge
• 2" quick couplers for bottom filling tanks
• The hydraulic front fold booms feature a nitrogen charged accumulator system combined with leveling linkage and shock absorbers to soften the ride. Live hydraulic control block requires only one set of remote outlets to perform all boom functions.
• The Hydraulic pendant/block can be used with open or closed center tractor hydraulic systems.
• Booms feature independent wing fold, hydraulic height adjust, wing leveling and outer wing breakaway.
• Boom folds to a transport width of 12'.
• Booms are available with 3/4" high volume plumbing and TeeJet® diaphragm check nozzles spaced at 20".
• Wet boom plumbing offers a choice of either single or triple drip free diaphragm check nozzles.
• Light system consists of flasher/turn signal and taillights for added road safety.

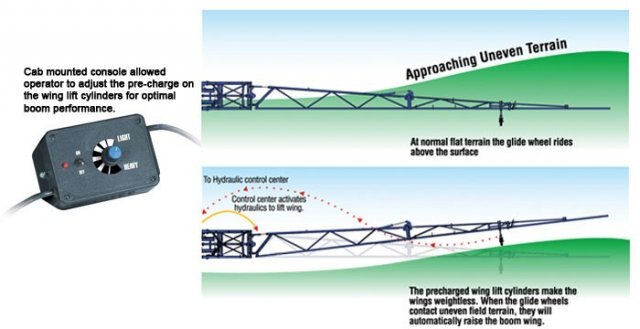

• Unique hydraulic glide suspension system makes the boom wings weightless. The guide wheels activate the hydraulic system and automatically adjust for uneven terrain. Guide wheels have puncture proof tires. (optional).

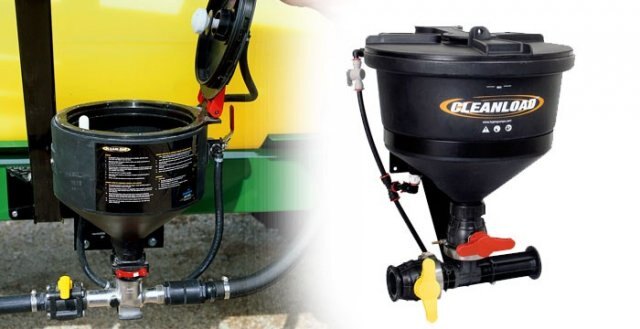

• 7 gallon chemical eductor (optional)
• 33 gallon foam marker (optional)

NOTE: Sprayer is less spray tips. Factory setup is standard. All sprayer plumbing is tested to 90 PSI.
