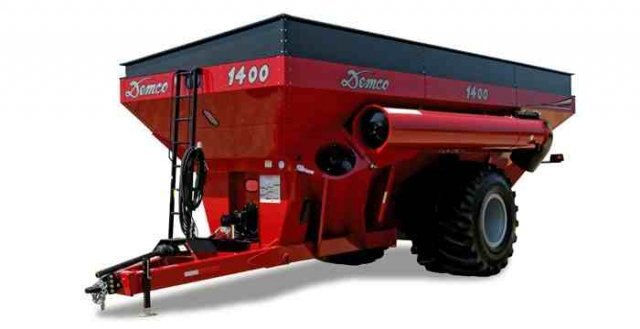

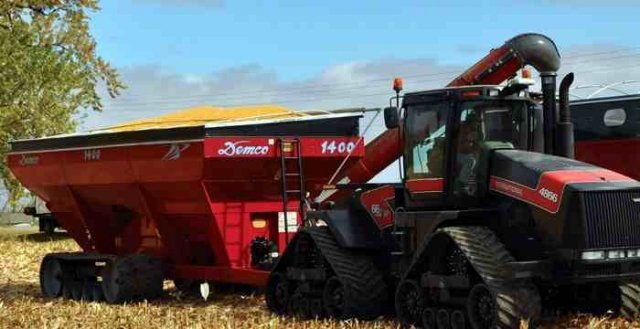

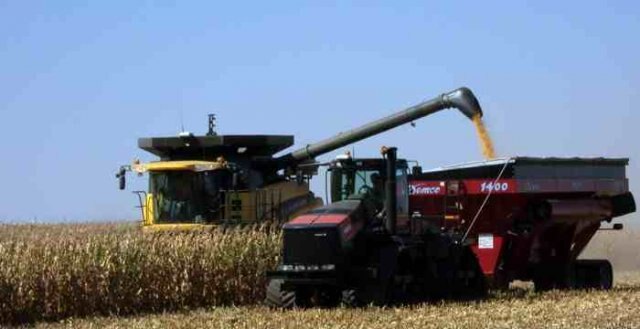

Demco 1400 Grain Cart

  • Demco 1400 Grain Cart
  • Demco 1400 Grain Cart
  • Demco 1400 Grain Cart
  • Demco 1400 Grain Cart
  • Demco 1400 Grain Cart
  • Demco 1400 Grain Cart
  • Demco 1400 Grain Cart
  • Demco 1400 Grain Cart
  • Demco 1400 Grain Cart
  • Demco 1400 Grain Cart
  • Demco 1400 Grain Cart
  • Demco 1400 Grain Cart
  • Demco 1400 Grain Cart
  • Video Button Hqdefault
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Unmatched in the Industry.

The Demco 1400 grain cart is loaded with features which provide operator convenience & comfort, and help make your harvest operation efficient and smooth.

Unlike other large capacity grain carts, the Demco 1400 has a corner auger design providing excellent visibility.  This grain cart has a hydraulic drive drag auger which eliminates the belts & pulleys that other brands have.  Demco’s 1400 grain cart is a large capacity grain cart unmatched in the industry with convenient features, first-rate quality, and excellent efficiency for your harvest operation.
 Features

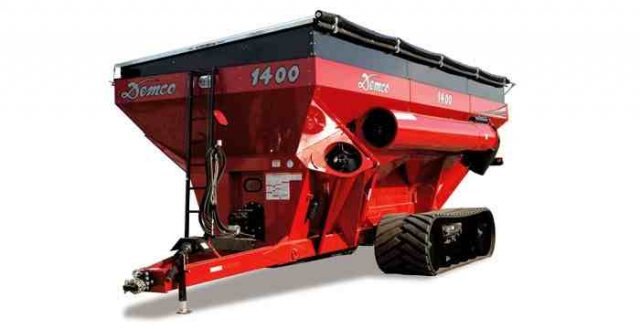

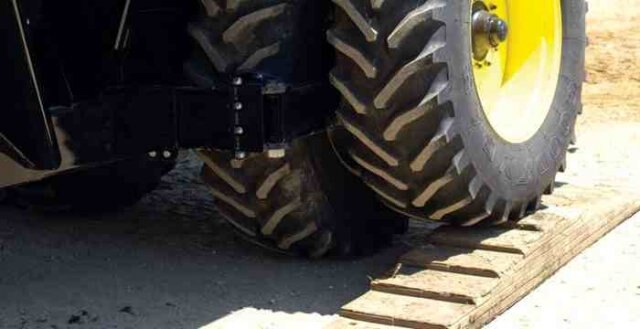

  • Available with singles, oscillating duals or tracks
  • Modular box construction with silicone sealed seams

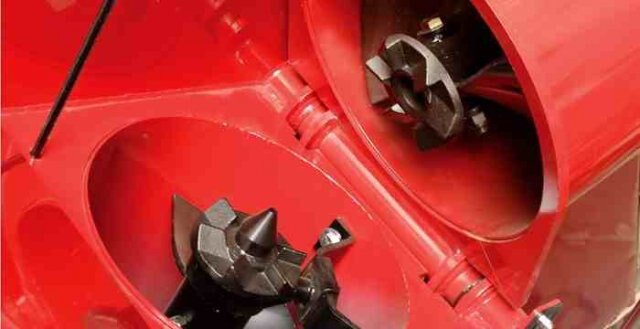

  • 22" diameter computer balanced discharge auger with Posi-Drive connection

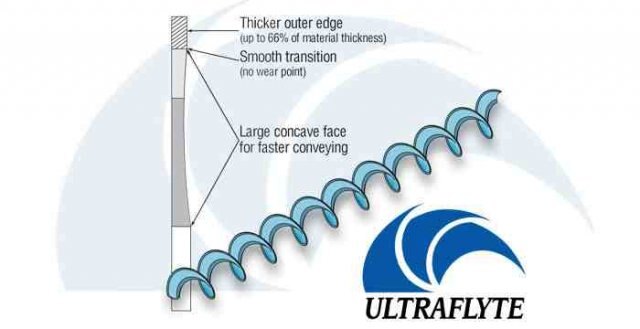

  • UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear life and faster conveying.
  • Adjustable spout with end delivery for even flow unloading
  • Forward positioned auger for optimum in-cab visibility
  • Adjustable austempered cast hitch, fits category 3 or 4 hammer strap tractor drawbar
  • 30” hydraulic controlled flow gate

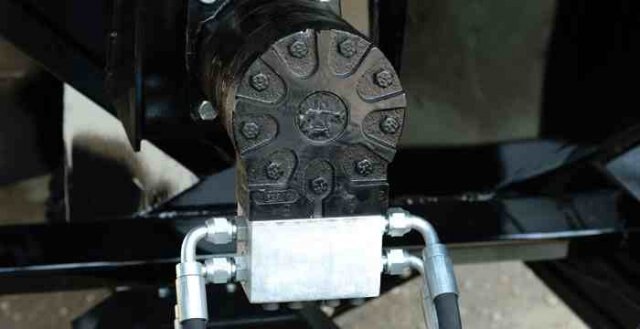

  • Hydraulic drive drag auger (35-40 GPM, 2200 psi requires 2 remote tractor outlets)
  • 1000 RPM PTO, 1.75"-20 spline - for unloading auger

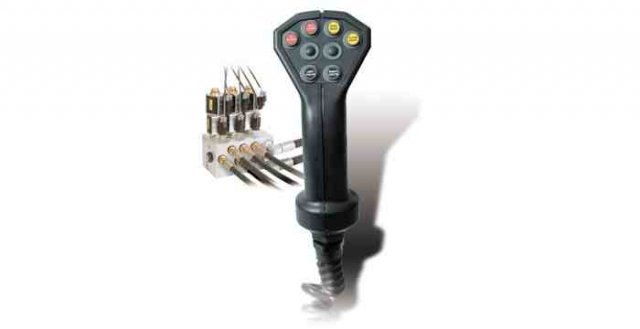

  • Pendant grip control & hydraulic block - 1 remote outlet performs 3 cart functions (auger fold, adjustable spout & auger flow gate)
  • Automatic reset “cut-out” clutch with overrunning clutch to protect auger drive and tractor PTO
  • Tail, flasher/turn signal lights and halogen auger spotlight for nighttime operation

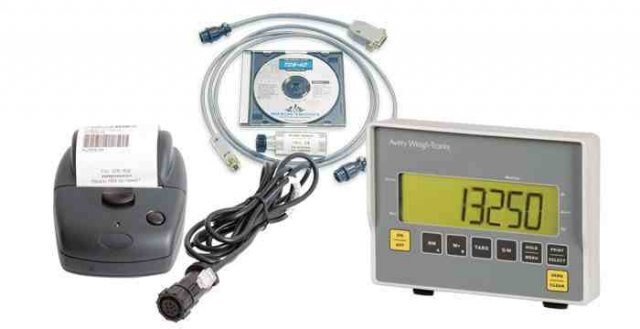

  • Weigh scale kit and console with printer port
  • Grain viewing windows
  • Transport safety chain.
  • Optional roll top tarp.

Specs

1400 Bushels With Duals

  • Capacity- 1400 Bushels With Duals
  • Balanced Auger Size- 22”
  • Unloading Time- 2.5 minutes
  • Spindle Size- 5 ½”
  • Tractor HP Required- 275
  • Hub Size- 10 Bolt 13.19”
  • Width of Tire/Track- 144”
  • Tongue Frame- 4”x10”
  • Tongue Weight- (Empty)- 2500 lbs
  • Tongue Weight- (loaded)- 6000 lbs.
  • Roll Top Tarp- Optional
  • Scale- Standard
  • Weight/Wheels & Tires- 17200 lbs
  • Physical Size/Auger Extends to Side- 10’ 2”
  • Physical Size/Box Width (Transport Width)- 11’
  • Physical Size/Height, Low Side- 11’ 2”
  • Physical Size/Axle Ground Clearance- 17”
  • Physical Size/Auger Extend to Front- 7’ 8”
  • Physical Size/Box Length- 28’ 9”
  • Physical Size/Box Height (High Side)- 11’ 11”
  • Physical Size/Total Length- 33’ 1”
  • Physical Size/Axle to Tongue Length- 20’ 2”
  • Physical Size/Drawbar/Tongue Height- 21”
  • Physical Size/Auger Clearance Height- 14’ 6”
  • Physical Size/Tread Width- 60” inner duals 120” outer dual

76x50 Singles

  • Capacity- 76x50 Singles
  • Balanced Auger Size- 22”
  • Unloading Time- 2.5 minutes
  • Spindle Size- 5 ½”
  • Tractor HP Required- 275
  • Hub Size- 10 Bolt 13.19”
  • Width of Tire/Track- 158”
  • Tongue Frame- 4”x10”
  • Tongue Weight- (Empty)- 2500 lbs
  • Tongue Weight- (loaded)- 6000 lbs.
  • Roll Top Tarp- Optional
  • Scale- Standard
  • Weight/Wheels & Tires-

Tracks

  • Capacity- Tracks
  • Balanced Auger Size- 22”
  • Unloading Time- 2.5 minutes
  • Spindle Size-
  • Tractor HP Required- 275
  • Hub Size-
  • Width of Tire/Track- 152”
  • Tongue Frame- 4”x10”
  • Tongue Weight- (Empty)- 2500 lbs
  • Tongue Weight- (loaded)- 6000 lbs.
  • Roll Top Tarp- Optional
  • Scale- Standard
  • Weight/Wheels & Tires-





Specifications
Model
1400 Grain Cart
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
Demco
Roll Top Tarp
Optional
Width Of Tire/Track
144”
