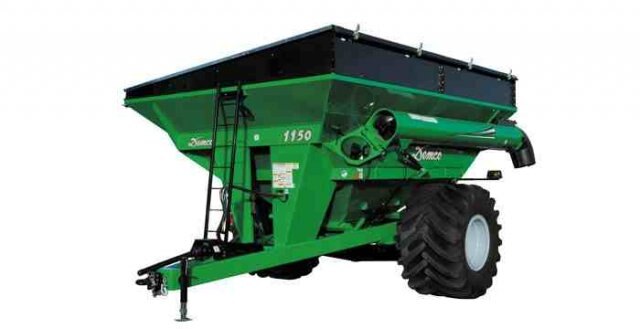

Demco 1150 Grain Cart

  • Demco 1150 Grain Cart
  • Demco 1150 Grain Cart
  • Demco 1150 Grain Cart
  • Demco 1150 Grain Cart
  • Demco 1150 Grain Cart
  • Demco 1150 Grain Cart
  • Demco 1150 Grain Cart
  • Demco 1150 Grain Cart
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Providing First-Rate Cleanout.

Demco grain carts are loaded with features which provide operator convenience & comfort, and help make your harvest operation efficient and smooth.

From our slope providing first-rate cleanout, to our POSI-Drive auger coupler, to our auger’s forward reach, visibility, & clearance, to our UltraFlyte auger flighting – we have dynamic features to meet your needs.  Our 1150 grain cart also comes with our adjustable auger spout as standard equipment providing you with more convenience and precise unloading.  The durable construction of our grain carts provides the high quality you can count on from Demco.  To this end, we have cut no corners with our 1150 grain cart coming standard with 35,000 lb. ductile iron hubs.
 Features

  • 1000 RPM PTO
  • Hydraulic drive (35-40 GPM minimum oil flow required).
  • Automatic reset “cut-out” clutch with overrunning clutch to protect auger drive and  ractor PTO
  • 18" diameter balanced auger with 3/8" flighting and Posi-Lock connection.

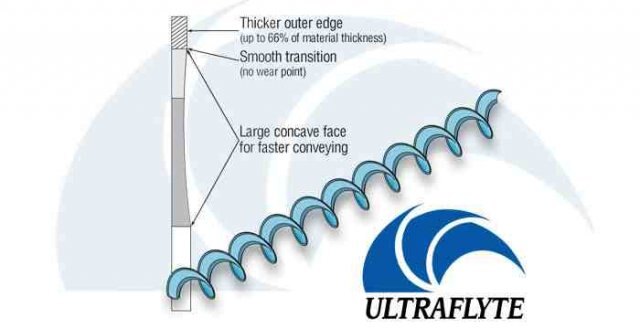

  • UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear and faster conveying.
  • 30" hydraulic controlled flow gate.
  • Auger positioned for operator visibility.
  • Auger folds within the width of the box for compact transporting and storage.
  • 1 grain viewing window.
  • Welded box construction with silicone sealed seams resists rust and corrosion.
  • 7000 lb. drop-leg tongue jack with separate storage position provides tighter turning radius.
  • Hand wheel operated clean-out door at bottom of auger for easy post season cleanup.
  • Tail, flasher/turn signal lights and halogen auger spotlight for nighttime operation.
  • Available with 120" fixed or 120" - 144" adjustable axle tread width.
  • 22,500 lb. Ductile Iron Hubs
  • Transport width with single wheels set on 120" centers: 12' 9"
  • Transport safety chain.
  • Adjustable auger spout.
  • Optional roll top tarp.

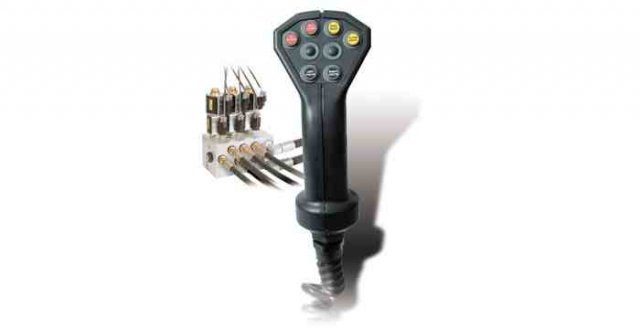

  • Optional ergonomic pendant control
 Specifications
  •  Capacity- 1100+ Bushels
  •  Balanced Auger Size- 18”
  •  Unloading Time- 3 ½ minutes
  •  Spindle Size- 5 ½”
  •  Tractor HP Required- 175+
  •  Hub Size- 10 Bolt – 13.19”
  •  Tread Width (Standard)- 147”
  •  Tread Width (Optional)- NA
  •  Tongue Frame- 4”x10”
  •  Tongue Weight- (Empty)- 1160lbs
  •  Tongue Weight- (loaded)-NA
  •  Roll Top Tarp- Optional

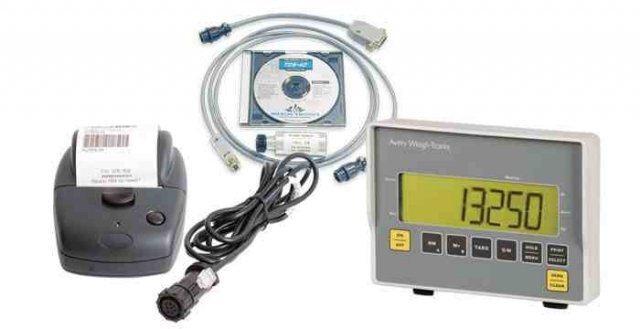

  •  Scale- Optional
  •  Weight/Wheels & Tires- 14000 lbs
  •  Physical Size/Auger Extends to Side- 9’5””
  •  Physical Size/Box Width (Transport Width)- 14’ 5”
  •  Physical Size/Height, Low Side- 11’  5”
  •  Physical Size/Axle Ground Clearance- 16 ½ “
  •  Physical Size/Auger Extend to Front- 7’6”
  •  Physical Size/Box Length- 20’1”
  •  Physical Size/Box Height (High Side)- 12’ 9”
  •  Physical Size/Total Length- 25’ 11”
  •  Physical Size/Axle to Tongue Length- 15 3”
  •  Physical Size/Drawbar/Tongue Height- 18”
  •  Physical Size/Auger Clearance Height- 14’ 9”





Specifications
Model
1150 Grain Cart
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
Demco
Roll Top Tarp
Optional
