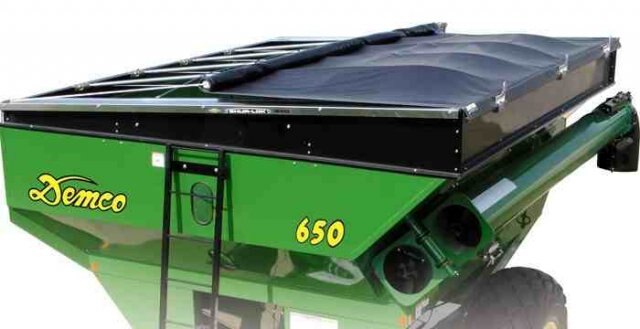

Demco 650 Grain Cart

  • Demco 650 Grain Cart
  • Demco 650 Grain Cart
  • Demco 650 Grain Cart
  • Demco 650 Grain Cart
  • Demco 650 Grain Cart
  • Demco 650 Grain Cart
  • Demco 650 Grain Cart
  • Demco 650 Grain Cart
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Harvest Operation Efficient & Smooth.

Demco grain carts are loaded with features which provide operator convenience & comfort, and help make your harvest operation efficient and smooth.

From our slope providing first-rate cleanout, to our POSI-Drive auger coupler, to our auger’s forward reach, visibility, & clearance, to our UltraFlyte auger flighting – we have dynamic features to meet your needs.  The durable construction of our grain carts provides the high quality you can count on from Demco.
- See more at: http://demco-products.com/agricultural-products/grain-handling-equipment/grain-carts/650-grain-cart/#sthash.x70WcUaZ.dpuf
 Features

  • 1000 RPM PTO
  • 14" diameter balanced auger with 5/16" flighting and Posi-Lock connection.

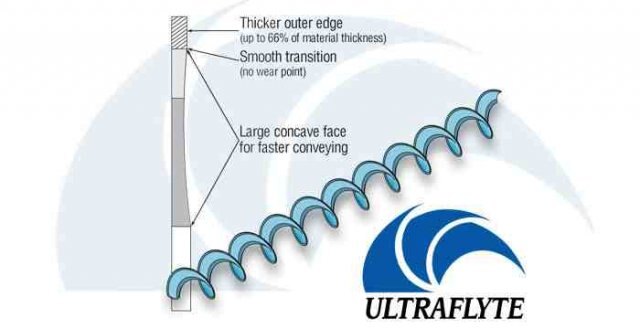

  • UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear and faster conveying.
  • Automatic reset “cut-out” clutch with overrunning clutch to protect auger drive and tractor PTO
  • Available with hydraulic drive. (15-25 GPM minimum oil flow required.)
  • 30" hydraulic controlled flow gate.
  • Auger positioned for operator visibility.
  • Auger folds within the width of the box for compact transporting and storage.
  • 2 grain viewing windows.
  • Welded box construction with silicone sealed seams resists rust and corrosion.
  • 7000 lb. drop-leg tongue jack with separate storage positions provides tighter turning radius.
  • Hand wheel operated clean-out door at bottom of auger for easy post season cleanup.
  • Tail, flasher/turn signal lights and halogen auger spotlight for nighttime operation.
  • Available with 120" fixed or 120" - 144" adjustable axle tread width.
  • Transport width: 12' 9".
  • Rear mounted SMV sign is standard
  • Transport safety chain.
  • Optional roll top tarp.
  • Optional adjustable auger spout
  • Optional ergonomic pendant control

NOTES ON HYDRAULICS: A standard grain cart requires two hydraulic remotes. The optional adjustable spout requires an additional hydraulic remote. Additional 15 - 25 GPM oil flow is required for hydraulic unloading drive.
  Specifications
  •  Capacity- 650 Bushel
  •  Balanced Auger Size- 14”
  •  Unloading Time- 3 minutes
  •  Spindle Size- 4 ½”
  •  Tractor HP Required- 150+
  •  Hub Size- 10 Bolt – 13.19”
  •  Tread Width (Standard)- 120”
  •  Tread Width (Optional)- 102-144
  •  Tongue Frame- 4”x10”
  •  Tongue Weight- (Empty)- 1190lbs
  •  Tongue Weight- (loaded)- 2600lbs
  •  Roll Top Tarp- Optional
  •  Scale- Optional
  •  Weight/Wheels & Tires- 7560 lbs
  •  Physical Size/Auger Extends to Side- 7’7”
  •  Physical Size/Box Width (Transport Width)- 11’ 11”
  •  Physical Size/Height, Low Side- 10’ 11”
  •  Physical Size/Axle Ground Clearance- 18”
  •  Physical Size/Auger Extend to Front- 7’1”
  •  Physical Size/Box Length- 14’
  •  Physical Size/Box Height (High Side)- 11’9”
  •  Physical Size/Total Length- 20’
  •  Physical Size/Axle to Tongue Length- 13’ 6”
  •  Physical Size/Drawbar/Tongue Height- 22”
  •  Physical Size/Auger Clearance Height- 14’
