Challenger 9200 Series Sickle Bar Headers

Call for Price
Overview
Top of the Stack

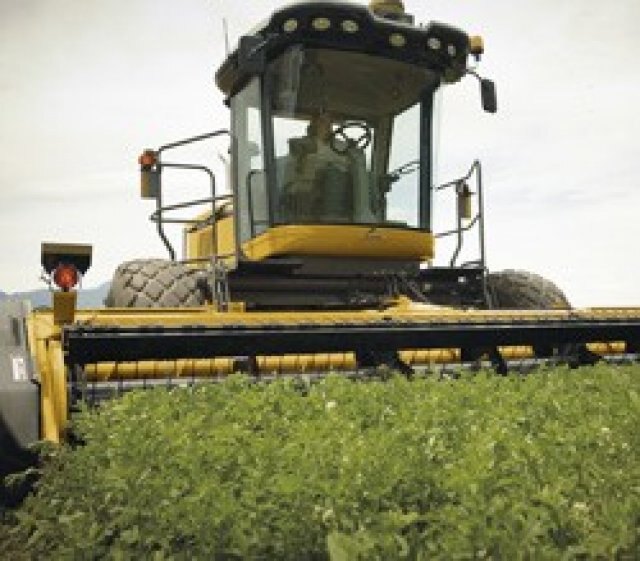

9200 Series Sickle Bar Headers


Leave it to the company that invented the sickle bar header to provide the smooth, clean cut you demand. Available in 14-, 16- and 18-foot cutting widths, Challenger’s 9226 header features our trademark dual augers, along with a double sickle and a single pair of conditioner rolls. The 9246 model boasts our exclusive TwinMax™ Advanced Conditioning System, which features two pairs of independently controlled, steel-on-steel conditioner rolls for quicker drying, higher nutrient retention and simply better hay in every bale. Our hydraulic roll tensioning system featured on all sickle bar headers maintains consistent conditioner roll pressure for effective crimping and the highest quality hay.
  Specifications

Model Header Width ft (m) Conditioners Conditioner
Type
Swath Width
in (m)
Sickle Stroke s/Min Roll Tension
9226 14 (4.3) 2 Steel on Steel or Rubber on Steel 40 – 96 (1 – 2.4) 920 Hydraulic
9226 16 (4.9) 2 Steel on Steel or Rubber on Steel 40 – 96 (1 – 2.4) 920 Hydraulic
9226 18 (5.5) 2 Steel on Steel or Rubber on Steel 40 – 96 (1 – 2.4) 920 Hydraulic
9246 Twin Max 14 (4.3) 4 Steel on Steel 40 – 96 (1 – 2.4) 920 Hydraulic
9246 Twin Max 16 (4.9) 4 Steel on Steel 40 – 96 (1 – 2.4) 920 Hydraulic





Specifications
Model
9200 Series Sickle Bar Headers
Category Name
Agriculture
Year
2019
Sale Type
New
Manufacturer
Challenger
Documents
