Case IH Seedbed Conditioners

Call for Price
Overview

ADDITIONAL CONDITIONING WITHOUT ADDITIONAL TIME

The Crumbler® 110 and 160 from Case IH provide the added benefit of seedbed preparation without an added pass across the field. They are the ideal tools to enhance the performance of Case IH primary tillage implements.
  Available Models
Models Working Width,  ft. (m) Transport Width,  ft. (m)
Crumbler 110 13–50 (3.8–15.2) 13–21 (4–6.4)
Crumbler 160 15, 17–25 (4.6, 5.3–7.6) 15, 13  (4.6, 4.0)
  Features

FEATURES AND ADVANTAGES

The attachable Case IH Crumbler® seedbed finisher provides the final touch for thorough seedbed preparation.

  • Combines primary tillage tools or the Tiger-Mate® 200 field cultivator with secondary tillage in one pass
  • Creates an excellent seedbed of firm, fine soil covered by loose, coarse soil

Functions

  • Reduces clod size
  • Improves seedbed levelness
  • Provides 110 lbs./ft. (50 kg/m) of down-pressure to create an ideal seedbed
  • Knocks soil off old root crowns and roots of existing weeds for additional weed control
  • Soil is firmed to reduce air pockets and evaporation
  • Chemical incorporation is enhanced to reduce “hot spots”

Sizing Options

Seventeen sizes, from 12.5–50 ft. (3.8–15.2 m), allow you to match a Crumbler with an appropriately sized field cultivator or disk harrow.

FEATURES AND ADVANTAGES

Attaching the Crumbler® 160 behind your Case IH primary tillage implements, including offset disks and disk rippers, makes one-pass primary tillage and seedbed preparation possible.

  • Breaks up clods, knocks soil off crown roots and smoothes soil after primary tillage
  • Saves time, fuel and tractor engine hours
  • Promotes higher yields by creating more ideal seedbed conditions
  • Makes it possible to complete seedbed preparation in the fall

Proven Performance

Performance research shows that the Crumbler 160 works in the fall to provide high-quality seedbed conditions by:

  • Reducing clod size by up to 46%
  • Creating smoother valleys by up to 45%
  • Improving fall seedbed levelness by up to 55%
  • Reducing air pockets in tilled soil

The Crumbler 160 consistently exerts approximately 160 lbs./ft. (240 kg/m) of ground pressure.


Varied Widths

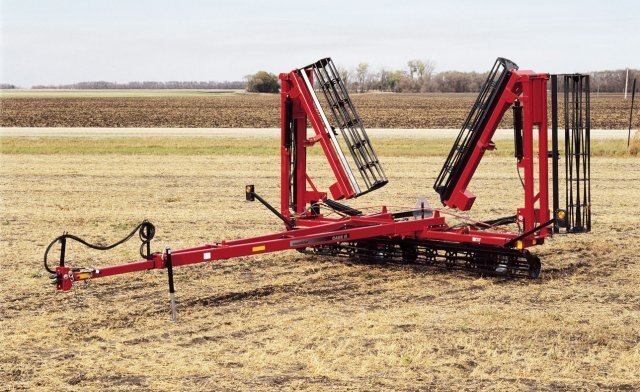

The Crumbler 160 is available in 15-,  17.5-, 20-, 22.5- and 25-ft. (4.6-, 5.3-, 6.1-, 6.9- and 7.6-m) widths. The four larger models fold to a narrow 13.5-ft. (4.1-m) transfer width.

Heavy-Duty Construction

The Crumbler 160 is constructed with rough terrain and varied soil conditions in mind. It features:

  • A mainframe and wings constructed of 6-x-4-in. (152-x-102-mm) steel tubing

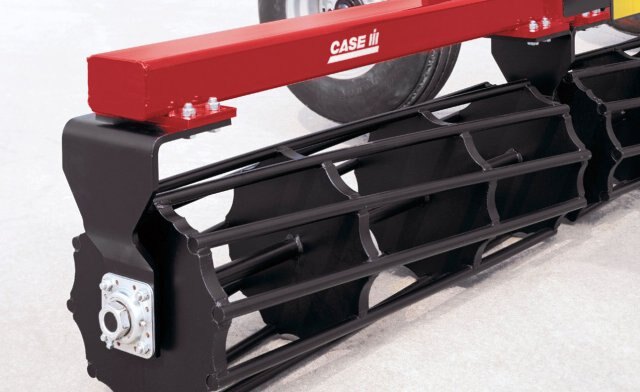

  • 16-in. (41-cm)-diameter reels with 10 1-in. (25-mm)-diameter solid bars
  • 3,000 psi (211 kg/cu cm) hydraulic cylinders and hoses with ISO couplers
  • 9.5L x 15 eight-ply, tubeless-rim implement tires
  • Replaceable hubs and spindles
  • Large, heavy bearings
  • Rigidly mounted reels

Unique Features

Other unique features of the Crumbler 160 include:

  • A pull frame with telescoping tongue
    • Easily attaches to the rear hitch on primary tillage machines
  • Warning and tail lights
  • An SMV emblem
  • A safety chain
  • A parking stand



Specifications
Model
Seedbed Conditioners
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Case IH
