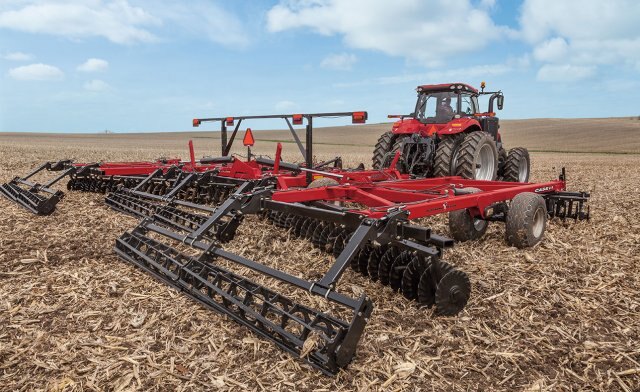

Case IH True-Tandem™ 335 VT

  • Case IH True Tandem™ 335 VT
  • Video Button Hqdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

A true all-purpose Vertical Tillage tool for Fall and/or Spring use.

Till up the remains of your most recent crop, and prep the soil terrain for your next one, with the Case IH True-Tandem™ 335 VT. It’s a fast and efficient way to cover a lot of acres, manage residue and level the soil in either the spring or fall.
  Available Models
Models Working Width No. Blades Blade Spacing, in. (mm)
22 ft. 2 in. (6.8 m) 68 7.5 (191)
24 ft. 7 in. (7.5 m) 84 7.5 (191)
28 ft. 2 in. (8.5 m) 94 7.5 (191)
31 ft. 8 in. (9.7 m) 100 7.5 (191)
34 ft. 8 in. (10.6 m) 114 7.5 (191)
42 ft. 5 in. (12.9 m) 142 7.5 (191)
  47 ft. 2 in. (14.4 m) 158 7.5 (191)
  Features

Built with Agronomic Design features throughout

New components also reduce maintenance for more uptime and productive seedbed preparation.

Helping residue work for you

The True-Tandem 335 VT slices through tough residue, partially mixes with soil and anchors it to the soil,  These actions speed the decomposition process of residue which contains valuable nutrients for the next season’s crop.

Larger tires = less compaction

Larger tire option means a larger footprint and less root-inhibiting compaction in the field due to wheel tracks.

Perfect blade size

Blades are 20 in. diameter which is the perfect size for the machine.  Smaller than some competitors’  22” blades, there is more edge speed in the field to loosen and toss soil up and out to level, filling smaller ruts and valleys.

Reduce the number of clods

Double formed bar reel with active hydraulics rolling basket breaks up clods and conditions the field.  Reduction in the number of clods leads to a much better seedbed.  Active hydraulics mean constant downpressure, adjustable from the front of the machine.  The reel also may be positioned in float mode, or raised entirely in wet corners of the field.

Obtain a smooth seedbed

Front and rear sets of blades are indexed exactly to create a smooth seedbed.

End with a superior finish

Factory-set 18 degree blade angle is perfect  for a superior finish.  The angle matches with the blade concavity to leave a level seedbed and virtually no horizontal compaction layer (unlike competitive units) since the blade does not ride on the back side.

The best line of vertical tillage tools just got better

Thanks to this workhorse’s combination of Agronomic Design features and rugged components, producers can take on heavy residue, uneven ground and rocky conditions.

Dual Season Use

A true all-purpose Vertical Tillage tool for Fall and/or Spring use.  Dual season use brings extra value to the 335VT.

More passes in less time

Operating speed of 7 - 9 mph means more acres covered in less time than conventional tillage passes.

Narrow Transport

Improved more narrow transport dimensions means less time traveling from field to field.

Reduced maintenance time

Greaseless walking tandem bearings and greaseless rolling basket bearings means less time spent in maintenance. There are 21 fewer grease points than the prior model.

Optimal Operating depth

Operating depth of 2.5 – 3 inches maximum allows higher speed and more acres per day, all with less draft and fuel than other tillage solutions.

The best line of vertical tillage tools just got better

The True-Tandem 335 VT solidifies the leadership legacy of Case IH vertical tillage tools with even more durable components.

LED Lights

LED lights are brighter and last longer than incandescent lamps.

Class 3 powder coat paint

The Class 3 powder coat paint finish retains color longer and is more resistant to scrapes and scratches.

Stubble-resistant tires

Stubble-resistant tire option means less chance of tire damage in tough field conditions.

Durable blades

Blades are 20 in. diameter, .256”  thick for less bending and breaking.

Earth Metal Blades

Earth metal blades provide increased durability. Earth metal differs from conventional blades in that it does uses new steel and other alloys resulting in a much tighter tolerance for the resulting alloy. Earth Metal is also an improved process which includes quenching the blade while still in the die. This results in a blade that holds its shape better and is much more ductile and resistant to breaking or bending.

Rigid Scrapers

Scrapers are rigid, and stay in position.  The formed-channel spool scrapers are stronger and have limited rotation so they stay in place.



Specifications
Model
True-Tandem™ 335 VT
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Case IH
