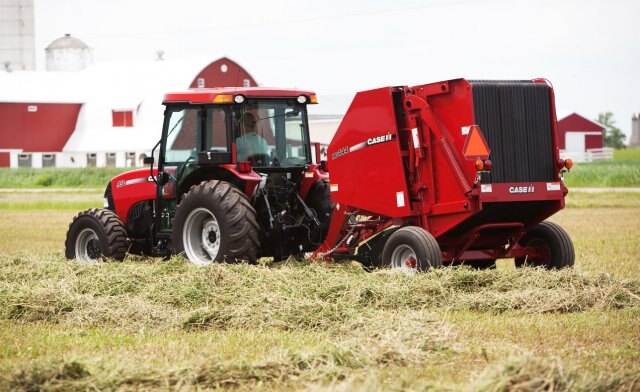

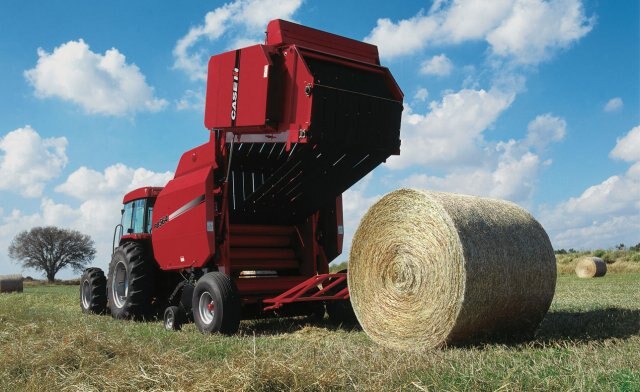

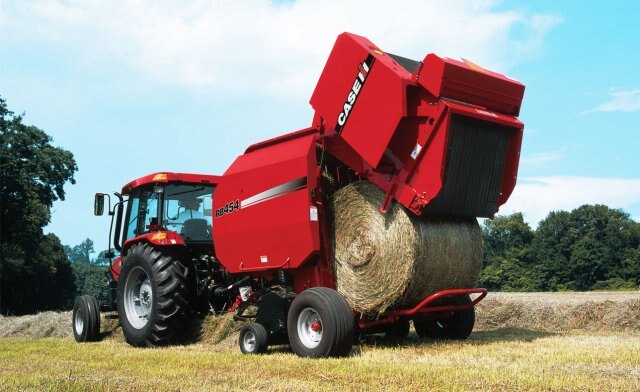

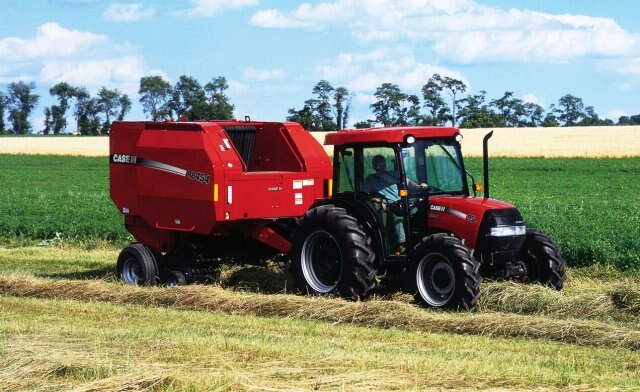

Case IH RB 4 Series Round Balers

  • Case IH RB 4 Series Round Balers
  • Case IH RB 4 Series Round Balers
  • Case IH RB 4 Series Round Balers
  • Case IH RB 4 Series Round Balers
  • Case IH RB 4 Series Round Balers
  • Case IH RB 4 Series Round Balers
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
DENSE, UNIFORM BALES

Case IH RB 4 Series round balers consistently build dense round bales, even in varying crop and field conditions. Choose from five models, known for wide pickups, durable belts and rolls, and the ability to custom-build round bales.
  Available Models
Models Bale Width,
ft. (m)		 Bale Diameter,
ft. (m)		 PTO Required,
hp (kW)
RB444 3.9 (1.2) 2.5–4 (0.76–1.2) 40 (30)
RB454 3.9 (1.2) 3–5 (0.9–1.5) 60 (45)
RB454 Silage 3.9 (1.2) 3–5 (0.9–1.5) 65 (48)
RB454 Rotor Cutter 3.9 (1.2) 3–5 (0.9–1.5) 100 (75)
RB455A 3.9 (1.2) 3–5 (0.9–1.5) 40 (30)
RB464 3.9 (1.2) 3–6 (0.9–1.8) 70 (52)
RB554 5.1 (1.6) 3–5 (0.9–1.5) 70 (52)

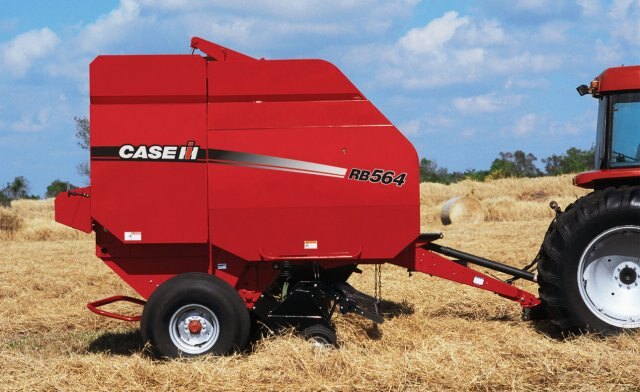

RB564 5.1 (1.6) 3–6 (0.9–1.8) 80 (60)
  Features

DH3 Draper Header

Cover more ground.

Size Matters for Windrows

RB 4 Series round baler pickups are substantially wider than the bale chamber. This allows them to pick up the widest windrows and pack more crop into the sides of the chamber for firm bales.

More tines grab more hay
        Tines vary from 72 on the RB444 to 144 on the RB554 and RB564
The low-profile design allows the pickup to float over ground contours
The pickup’s forward location allows you to view windrows feeding and crop flowing evenly into the bale chamber
Long, large diameter augers on wide pickups ensure smooth crop flow
Pickups are protected from overload with a slip or ratchet clutch

DH3 Draper Header

Consistency when you need it.

Dense & Uniform Bales

RB 4 Series round balers use the combined action of low-profile, chevron-patterned belts and sturdy all-steel rolls to form dense, uniform bales.

Endless three-ply chevron belts eliminate lacing maintenance
The adjustable hydraulic belt tensioning system puts density control at your fingertips (N/A on RB444), and the front pressure gauge allows density monitoring

The floor roll starts the bale formation process by moving the crop from the pickup to the belts and into the core cavity.

The powered floor roll carries a large portion of bale weight inside the chamber, reducing belt stress
The forming rolls help curl the crop and quickly starts an edible core
The variable bale chamber allows you to customize bale diameter

DH3 Draper Header

Precise Packaging

Consistent twine placement

    The electronic-controlled twine wrap system ensures consistent twine placement, automatically starts the twine wrapping process, and has a full-bale alarm to alert you to stop forward motion and an in-cab monitor to alert you when the tying cycle is complete
    An optional electronic-controlled twine/mesh wrap system is available with the press of a button on RB454 Silage, RB454 Rotor Cutter Silage, RB464 and RB564
    The RB444 tying system features a fast, electric, single-arm twine system that applies two strands of twine at once, an adjustable twine guide and a full-bale light that alerts you when it’s time to activate the twine arm

DH3 Draper Header

Controls at the touch of a finger

Adjust on the fly

Make bale size adjustments on the go
Tying and wrapping controls allow for the adjustment of tying/wrapping patterns
The tailgate latch indicator alerts you when to start baling after a bale is ejected
The electronic bale counter provides daily and total bale counts
Bale-shape indicator:
        Standard on all models, except the RB444
        Uses visual bar graphs and audible signals to indicate which side of the bale   needs more hay
        Guides your driving pattern so the chamber is evenly filled

DH3 Draper Header

Special Silage Features

Reduce Drydown time

RB454 Silage and RB454 Rotor Cutter Silage drastically reduce time spent waiting for drydown by allowing you
to make high-quality forage without a silo. Numerous special features make these balers ideal for your forage needs.

Special Silage Features Include:

4x5-ft. (1.2x1.5-m) bales
The ability to turn crops with up to 65% moisture content into round-bale silage
Dual-cam pickup with large-diameter augers, angled feed floor, heavy-duty frame
Heavy-duty feeder with two positions specifically for silage baling
Belts designed to eliminate the need for lacings for better durability in wet silage
A rubber backwrap roll that prevents sticky crop buildup

RB454 Rotor Cutter Silage has a large-diameter rotor to pull crop over 15 stationary knives and cut as short as 2.6 in. (0.76m) for better haylage and less wasted dry hay.
Specifications
Model
RB 4 Series Round Balers
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Case IH
