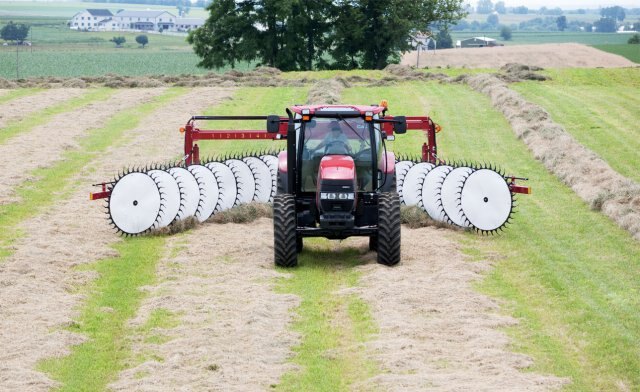

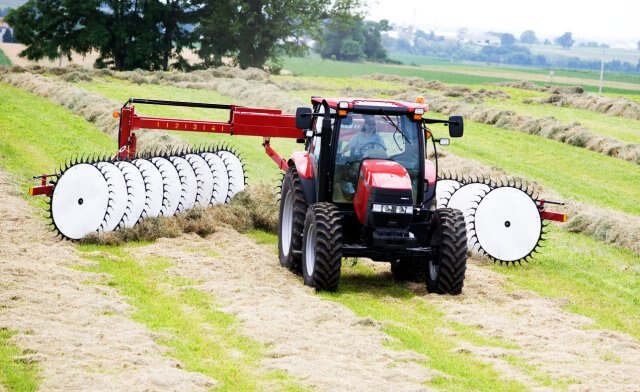

Case IH Wheel Rakes

  • Case IH Wheel Rakes
  • Case IH Wheel Rakes
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
MOVE MORE HAY, FASTER

17 ft. 5 in. to 30 ft. 10 in. (5.3 to 9.4 m) Raking Width
Built to handle high capacities, Case IH WR and WRX Series wheel rakes are available in working widths up to 30 ft. 10 in. (9.4 m) wide. Featuring quick, simple adjustments that can be made without removing or adding any components, WR and WRX wheel rakes make it easier for operators to build windrows perfectly matched for crop and field conditions. Heavy-duty construction ensures season after season of durability.
  Available Models
Models Max. Raking Width No. of Wheels
WR401 HD 30 ft. 3 in. (9.2 m) 17
WR102 24 ft. 6 in. (7.5 m) 8, 10 or 12
WRX201 20 ft. 4 in. (6.2 m) 8 or 10
WRX301 30 ft. 10 in. (9.4 m) 12, 14 or 16
  Features

WR Series wheel rakes

Case IH WR Series wheel rakes sport durable, heavy-duty frames built to handle high capacities and tough, uneven terrain.

The generous rake arm clearance accommodates higher-volume raking
Rake sections float over uneven terrain without hang ups

DH3 Draper Header

WR401 HD Wheel Rakes

Built for the rigorous demands of hay growers who require high-speed, high-volume, flat-land raking:

Operating speeds as high as 15 mph (24 kph)
        No need for a center kicker wheel, so you can drive faster
A raking capacity up to 30 ft. 3 in. (9.2 m) wide
The offset design turns all the crop, ensuring uniform crop drydown
60-in. (1.5-m) rake wheels are constructed with:
        Heavy iron gussets for superior strength
        UV-treated poly wind panels
        An over-center wheel stop to keep wheels in proper position
        Torsional dampening springs for flotation
Off-set walking beam tandem wheels allow the machine to follow ground contours and maintain consistent tine height
        Helps unit travel smoothly over wheel tracks or irrigation borders
The hydraulic hose routing is protected by rubber conduit on the telescoping frame to keep hoses from pinching and binding

DH3 Draper Header

WR101 Deluxe Carted Wheel Rakes

Built compact for easy maneuvering in hilly terrain and smaller fields:

High-frame carted design ensures unobstructed crop flow
Available in three raking widths from 19 ft. to 25 ft. 7 in. (5.8–7.8 m)
Choose from 8, 10 or 12 rake wheels
Produce windrows from 3 ft. to 6 ft. 7 in. (0.9–2 m) wide
55-in.(140-cm)-diameter raking wheels use 40 equally spaced tines to gently pick up and move crop to build fast-drying windrows
Strong frame made of structural tubular metal
Equipped with 15-in. (38-cm) tires for stability and durability
Rake arm flotation suspension for cleaner raking with less soil gouging and longer tine life
Easily handles rough, uneven terrain thanks to:
        A rake arm shock absorber system
        Oscillating raking wheel holders that enable the machine to adapt to bumpy fields
        Adjustable pressure spring suspension that allows wheels to work at the correct load and hug the ground

DH3 Draper HeaderQuickly and easily adjust Case IH WR Series wheel rakes without removing or adding components

adjust the raking beam angle based on conditions

Adjust the raking beam angle to form loose windrows for more airflow or a tighter windrow
if conditions are dry or windy
Raise or lower raking wheels independently with a master switch (WR401 model)
In tight spaces or when finishing up a field, rake with only one side of the wheel rake (WR101 model only)
Hydraulically adjust rake arms so windrow widths are matched to crop and field conditions (WR401 model)

DH3 Draper HeaderCase IH WR101 deluxe carted rakes can be quickly and easily changed from transport to raking and back again.

easy transport

Rake folds on top of cart for easy transport
In the field, you simply push a lever and the rake wheels lower
Wheels fold back up for transport with the pull of a lever
Specifications
Model
Wheel Rakes
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Case IH
