Overview

HIGH-QUALITY SMALL-GRAIN HARVESTING

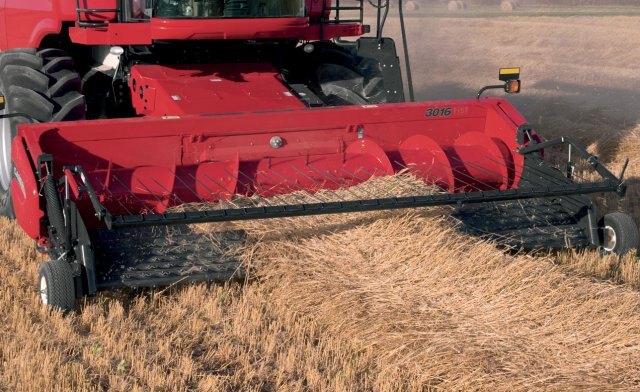

Case IH 3016 belt-type and rake-up pickup heads for Axial-Flow® combines are made to harvest cereal grains, beans, peas, lentils, canola or grass seed.
  Available Models
Models Type Pickup Width, ft. (m)
Belt, Pickup 15 (4.6)
Grass Seed Special 12 (3.7)
  Features

Smooth Pickup

The 3016 pickup head features:

  • An integrated seed dam between the rear picking belt roller and floor — prevents grain/header loss with no need for a rubber seal
  • A fully welded mainframe — 6 in. x 6 in.
  • A heavy-duty, fully welded auger — floating 26-in. (660-mm) diameter with deep flighting
  • Double V pattern retractable auger fingers with patented rubber retaining system — prevents finger from being ingested into the combine and allows for easy finger replacement
  • A heavy-duty RC 80 auger drive chain
  • A rear wind guard — in-cab, hydraulic height adjustment with single-handle, manual-pitch adjustment
  • Fixed gauge wheels with height adjustment allows for optimum picking
  • Flexing pickup frame — allows up to 12 in. of flex within the picking frame
  • Plastic teeth on the pickup belt for gentle handling of crop
  • A two-stage delivery unit — has a pickup belt and transfer belt to optimize pickup and transfer of crop
  • No daily service points required

Small Grain Configuration

  • 15-ft. header width, 14-ft.–11.5-in picking width
  • 3-section (5 ft. each) belts for pickup and transfer

Grass Seed Special

  • 12-ft. header width, 11-ft.-11 in. picking width
  • One 12-ft. belt for pickup and transfer

Optional

  • In-cab hydraulically suspended pickup — provides ultimate flotation when combined with the lateral flexing of the picking frame while maintaining consistent ground pressure
  • Castor gauge wheels optional on both the 12-ft. grass seed configuration and 15-ft. small grain configuration — provides enhanced tracking in turns and eliminates ground scuffing while reducing frame stress
  • Auxiliary front wind guard — for use in short crops, which tend to bunch or roll in front of the picking belt



Specifications
Model
Pickup Heads
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Case IH
