ID # 13326658

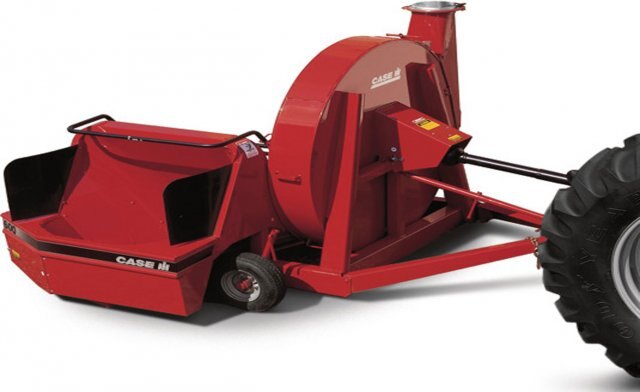

Case IH Forage Blower

  • Case IH Forage Blower
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
HIGH-SPEED PERFORMANCE

The Case IH Model 600 forage blower quickly fills silos up to 100 ft. (30.5 m) tall. The direct-feeding auger quickly moves material from the 37-in. (940-mm)-wide hopper. The high-speed, 12-in. (305-mm)-diameter feed auger smoothly and evenly delivers crop to the blower without bridging or plugging.
  Available Models
Model Min. Tractor PTO Required, hp (kW) PTO, rpm Blower Drive
600 60 (40) 540 Direct PTO
  Features

DH3 Draper Header

High Speed

direct-feeding auger

The high-speed, direct-feeding auger is positioned at a 30-degree angle to the blower
Quickly moves material from the 37-in. (940-mm)-wide hopper
Smoothly transitions material from hopper to blower
Breaks up crop slugs and eliminates plugging

High-speed, 12-in. (305-mm)-diameter feed auger

Smoothly and evenly delivers crop to blower
No bridging or plugging of the blower

DH3 Draper Header

keeps material moving

paddle tip speed of 8,460 ft. per minute

The 60-in. (1,524-mm)-diameter blower fan has a paddle tip speed of 8,460 ft. per minute (2,579 m/min.) to keep material moving.

Unload corn silage at speeds up to 180 tons per hour (163 mt/hr)
Unload haylage at speeds up to 110 tons per hour (100 mt/hr)

Plenty of room for maneuvering wagons into position

Wide hopper

The wide, 37-in. (940-mm) hopper extends 20 in. (508 mm) past the blower housing.
Provides ample room for maneuvering wagons into position
Easy access to the hopper speeds up unloading time
Flexible wind deflectors prevent spillage at the blower

Easily adjust the hopper height

From 20.5 in. (521 mm) to 27.5 in. (699 mm) to match the height of different wagons.

Individually adjustable wheels

Allow you to level the blower at the silo and raise it for transport.

DH3 Draper Headerproper water placement

increased blower efficiency

The Case IH Model 600 forage blower features a water inlet flange that allows for proper water placement. This increases blower efficiency by removing the plant juices that gum up the blower and housing.
Specifications
Model
Forage Blower
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Case IH
