ID # 13326653

Case IH Pull-Type Forage Harvester

  • Case IH Pull Type Forage Harvester
  • Case IH Pull Type Forage Harvester
  • Case IH Pull Type Forage Harvester
  • Case IH Pull Type Forage Harvester
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
HIGH-CAPACITY PERFORMANCE

The Case IH FHX300 pull-type forage harvester swiftly harvests crops. The 1,000-rpm driveline, heavy-duty components and wide crop heads harness big-tractor horsepower and turn it into high-capacity harvesting performance.
  Available Models
Model Windrow
Pickups, in. (m)		 Cutterhead PTO Required,
hp (kW)
FHX300 76 and 92
(1.9 and 2.3)		 12-knife 180 (134.2)
HDX10P 76 (1.9)
HDX20P 92 (2.3)
HDX3R 28 to 32
  Features

DH3 Draper Header

convert crop into high-quality feed

Provide uniform length of cut

The FHX300 has a wide, 25.5-in. (647.7-mm) throat opening to swallow even the heaviest crops. The feedrolls move material smoothly and evenly into the cutterhead.

Rugged, 21-in. (533-mm)-diameter cutterhead

12 hardened-alloy knives chop evenly and efficiently
Knives span the full width of the cutterhead
Provides uniform length of cut, converting crop into high-quality feed

DH3 Draper Header

Powerful blower moves crops quickly

Handles all types of crops

A powerful 1,000-rpm blower moves crops quickly to fill wagons and trucks fast. Works efficiently regardless of whether you’re working in wet, heavy hay or an easy-to-blow crop like corn.

DH3 Draper Header

remotely control the spout

rotate the spout 90 degrees

Electronic remote controls allow you to rotate the spout 90 degrees. The spout is easily repositioned to fill towed forage wagons or trucks to the left. From your tractor seat, you control:

FHX300 feedroll direction either forward or reverse
Basic pick up functions
The standard hydraulic tongue swing from road to field position

DH3 Draper Header

Built-in knife sharpener and reversible gearbox

Convenient adjustments make it easy to keep the FHX300 chopping at peak efficiency.

Built-in knife sharpener sharpens knives easily — no tools needed
Reversible gearbox is easy to access for fast sharpening

The shearbar adjustment is also fast and easy for optimum cutterhead performance. Feedrolls lift up for easy cleaning and inspection of shearbar and smooth roll scraper.



DH3 Draper Header

Cut lengths from 3/16 in. to 1 5/16 in.

five optional recutter screens

The FHX300 allows for precise cut-length adjustment . Control length of cut by:

Changing feedroll speed
Adding or removing knives
Using one of five optional recutter screens

Achieve a cut length from 3/16 in. to 7/16 in. (5 mm to 11.1 mm) with all 12 knives. With only four knives selected, achieve a cut length as long as 1 5/16 in. (33.3 mm).

Case IH Windrower Stop feedrolls before metal can damage the cutterhead

 How it works:

Detector stops feedrolls within a fraction of a second  — before metal can damage the cutterhead.

The sensor and electromagnet in the front lower feedroll emits a constant magnetic field between the two stainless-steel lower feedrolls.
A light and horn alert you when metal is detected, and a signal is sent to the solenoid to stop the feedrolls.
Power is shut off to an electric clutch on the reversing gearbox that shifts to neutral and stops the power to the feedroll drive.
The feedroll control switch allows you to back the material out of the feedrolls.
After metal is removed, the  detector resets automatically.

DH3 Draper Header

Maximize feed quality

save time and cost by chopping and processing in one operation

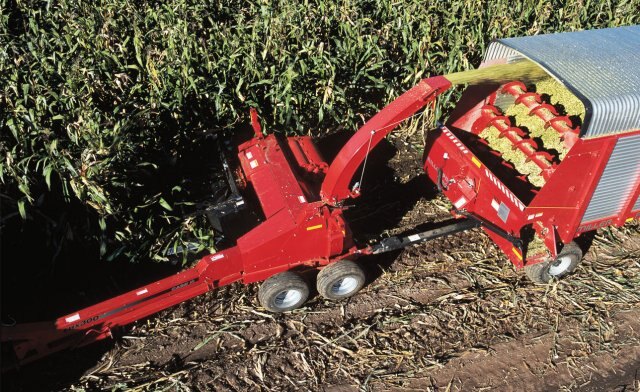

The processor maximizes feed quality in corn silage , saving time and cost by chopping and processing in one operation. By removing the material baffle and the processor drive belt, you can chop haylage.

Crop coming from the cutterhead is propelled between two 8-in. (203-mm)-diameter fluted rolls. The top roll turns 15 percent faster than the bottom roll , providing the scuffing action necessary to crack kernels and break cob pieces . This results in:

Better fermentation
More effective fiber in the ration
Feed that’s easier for livestock to digest


DH3 Draper Header

Heavy-duty gauge wheels and a floating auger

Two models available

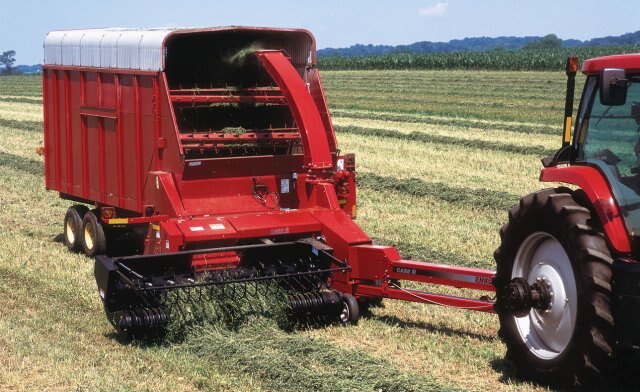

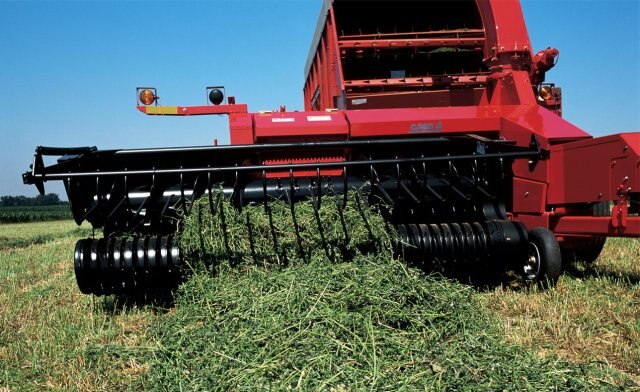

Ground-hugging HDX10P/HDX20P windrow pickups gather the entire crop.

Heavy-duty gauge wheels handle rough ground
        Wheels help the pickup rise over swells and into dips without gouging
        Open end pulls in wide windblown windrows
Two models available
        76.5 in. or 92 in. (1.94 mm or 2.34 mm) models, tine to tine
        Closely spaced pickup tines flex to gather the entire windrow
Floating auger handles heavy crop conditions
        Retractable finger feed auger feeds crop smoothly
        Auger reverses with feedrolls to easily clear plugs in case of overload

DH3 Draper Header

Grabs every stalk grown even in lodged crop conditions

Adjustable skid shoes and spring-loaded discs

Points float over ground contours
Skid shoes are adjustable to eliminate bulldozing
Gathers cornstalks planted on 28- to 32-in. (711- to 813-mm) row spacing
Gathering chains reach forward to grasp cornstalks and feed smoothly into feedrolls
Cutting discs shear corn close to the ground
        Discs are spring loaded
        Allows discs to move out of the way when an obstacle is encountered
Right- and left-hand power dividers ensure heavy crop flows into feedrolls
Specifications
Model
Pull-Type Forage Harvester
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Case IH
