TOP FERTILIZER PERFORMANCE
Case IH fertilizer application equipment combines with the root zone banding legacy of DMI to make your fertilizer investment count. Preplant, side-dress or strip-till, Case IH fertilizer applicators offer yield-boosting power by increasing nutrient uptake, minimizing runoff and delivering high returns. |
|
Available Models |
| Nutri-Placer 920 |
Preplant |
60 ft
(18.3 m) |
1,650 and 2,050 gal.
(6246 and 7760 L) |
| Nutri-Placer 930 |
Preplant |
27.5 ft. to 47.5 ft.
(8.38 m to 14.48 m) |
N/A |
| Nutri-Placer 940 |
Preplant |
60 ft. to 65 ft.
(18.3 m to 19.8 m) |
N/A |
| Nutri-Placer 2800 |
Side-dress |
17.5 ft. to 37.5 ft.
(5.3 m to 11.4m) |
850, 1,000, 1,300 gal.
(3218, 3785, 4921 L) |
| Nutri-Placer 5300 |
Preplant |
22.5 in. to 37.5 ft.
(6.86 m to 11.43 m) |
N/A | |
|
Features |
KEY FEATURES OF THE NUTRI-PLACER 920 PULL-TYPE LIQUID
FERTILIZER APPLICATOR:
Features - 23 or 25 rows for big productivity and to match 24 - row planters
- Outer wings can be folded to 15 coulters to match 16 - row planters
- High Capacity Jack Stand w/ 10" x 10" footprint
- Narrow Hitch for tight turning radius
- X-Wing Frame Fold for narrow transport width and low transport height
- Forward mounted applicator frame for easy viewing of applicator
- 5 section boom application capable
- Applicator frame mounted to parallel arms for level lifting and lowering for better fertilizer placement
- 5 section flex with active down pressure for better fertilizer placement
- Greaseless poly bushings in wing pivots for low maintenance
- Frame strength and smooth gusseting for stress relief and long toolbar life
- 3" Tank Fill easy to reach and away from any electronics
- 1650 gallon tank for more time in the field and less time filling
- Low center of gravity tank for more stability
- Front and Rear tank level sight gauge
- Wash tank conveniently mounted near product fill area.
- Hydraulic drive pump for better rate control and easier rate adjustment
- Mount provided for section and rate control valves
- High Capacity 420/80R46 tires f
|

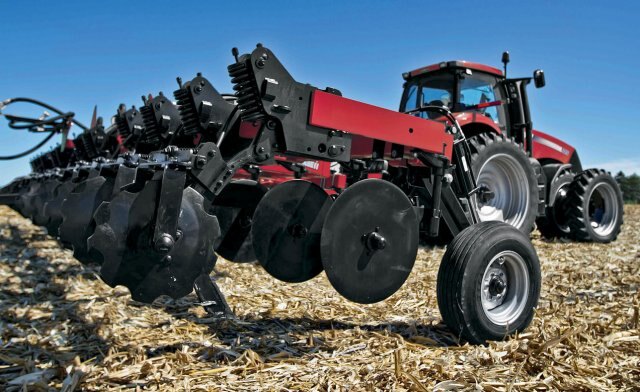

KEY FEATURES OF THE NUTRI-PLACER 930 PULL-TYPE LIQUID FERTILIZER
APPLICATOR:
Features - Heavy-duty frame for increased toolbar strength
- 3-section flex for ground contouring
- All new rear hitch for simple, reliable hook-up
- 12-, 20-, and 30-inch (38 cm, 51 cm, 76 cm) row spacing
- Hydraulic single point depth control
- Easy leveling turnbuckles for wing wheel adjustments - double fold units
- Reduced service requirements

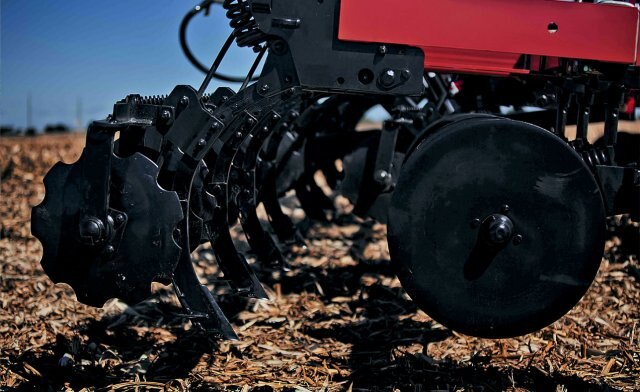

- Proven, ground-engaging components for NH3 placement

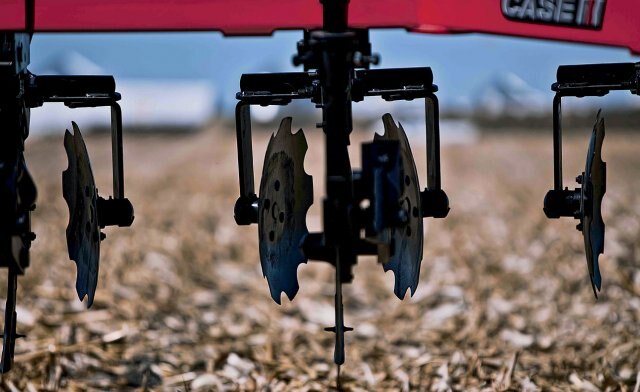

- Independent pivoting coulters
- High-clearance shank assemblies have adjustable trip pressure
- High, under-frame clearance
- Choose the shank that's right for your operation
- Standard stubble-resistant tires
|

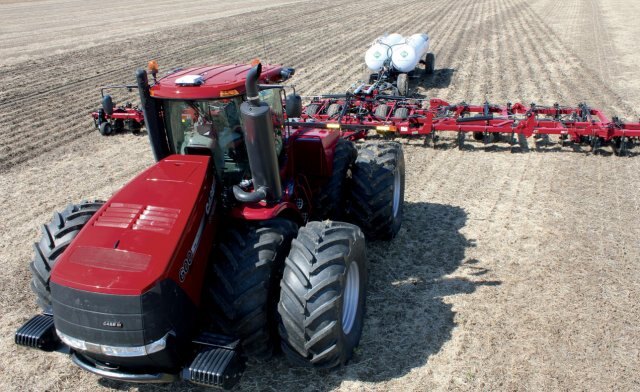

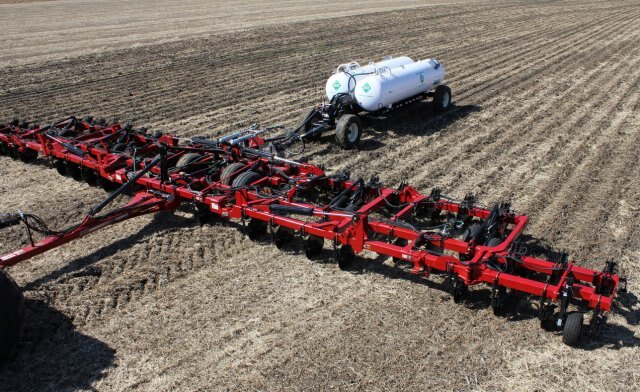

KEY FEATURES FOR THE NUTRI-PLACER 940 PULL-TYPE APPLICATOR:
Features - 7-section fold, 5-section flex frame for ground contouring
- High, under-frame clearance for residue flow
- Heavy-duty running gear
- 23% increase in width
- Matched capacity to largest tractors in the industry
- Compatible with commodity air systems
- Slim design for narrow transport; excellent roading
- Proven, ground-engaging components for NH3 retention
- Hydraulic, single-point depth control
- Independent, pivoting coulters
- High-clearance shank with adjustable holding power
- 15- and 30-inch (38 cm, 76 cm) row spacing
- All new rear hitch for simple, reliable hook-up
- Easy leveling turnbuckles for fore/aft pitch and wing wheel adjustment
- Reduced service requirements
- Heavy frame tube
|
agronomic benefits

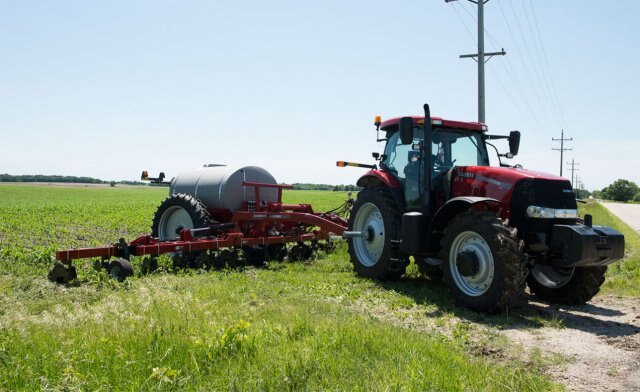

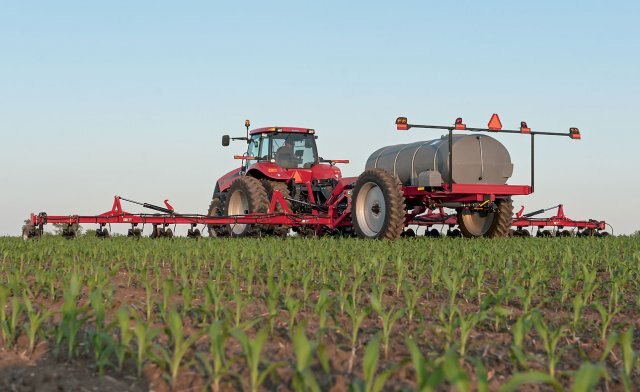

Capture the agronomic benefits of feeding the crop when it needs it most with this durable and unique Case IH side-dress fertilizer applicator. The Nutri-Placer 2800 toolbar features a unique active hydraulic system that maintains down force to keep coulters at the desired operating depth across the full width of the applicator. |
Frame/Tank
Tough and Flexible Frame - Strong and durable toolbar design, thanks to 4x8-in. (10x20-cm)-frame-and-hitch tubing with two ranks of 4x6-in. (10x15-cm)-tubing with diagonal bracing
- Wheel spacing adjusts from 62–156 in. (157–396 cm), depending on toolbar size
- Excellent visibility of toolbar (17.5–37.5-ft./ 5.3–11.4-m working widths) and ground drive system because it is mounted ahead of the tank (800-, 1,000- or 1,300-gal. / 3,218-, 3,785-, 4921-L capacity)
- Constant tongue weight maintained whether the tank is loaded or empty
- Follows ground contours up to 6 degrees down and 30 degrees up for extra clearance on turns and flexibility in the field
- Extra flotation provided by large 420/80 R46 tires
|
Hydraulic Control
Precision Depth - Competitive advantage — desired operating depth is maintained across the entire width of the toolbar, thanks to an active hydraulic system that maintains down force
- Wing coulters follow the contours at a consistent depth due to 1,000 lbs. (454 kg) of hydraulic pressure on the wing-fold cylinders
- Quick and easy wing depth adjustment to match center section depth, thanks to pin-adjust gauge wheels
|
Knives/Injectors
Customize Your Toolbar - You can get models that feature 7, 9, 11, 13 or 15 coulters at 30-in. (76-cm) spacing
- Case IH 1/4-in. (.6-cm) liquid coulter knife is cast chromium carbide to assure all liquid fertilizer is applied at knife depth
- Low-maintenance Case IH injector directs a high-pressure stream of liquid fertilizer into the coulter slot
|
Mounted Type
Nutri-Placer 5300 mounted or pull-type applicator versions can be used for both preplant and sidedress application – to band nutrients in the soil root zone for optimum fertilizer return on investment. |
Mounted Applicators - Economical alternativefor either preplant or side-dress application
- Rugged 4x6-in. (10x15-cm)-tubing frame built to handle rough field situations
- Great tractor tire clearancefor 42- or 46-in. (117- or 107-cm) tires due to 3-point hitch design
- Working widths of 22 1/2–37 1/2 ft. (6.9–11.4 m)
- Flexible coulter placementdue to full 27-in. (69-cm)-rank between front and rear bars
|
