QUALITY APPLICATION

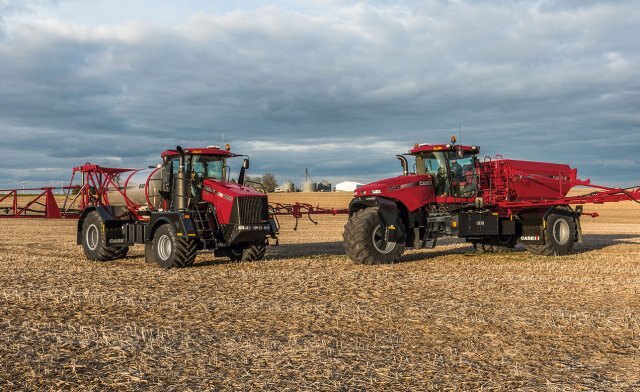

• From the big booms, big tanks, and efficient plumbing of our 610 Liquid System to the precise co-application flexibility of the 810 Flex-Air applicator you can cover more acres, more accurately
• Feature rugged suspension and boom design that ensures efficient, consistent and precise application

APPLY ADVANCED TECHNOLOGY FOR IMPROVED PRODUCTIVITY.

Built to get more out of every day and pack more productive days into every season, Titan Series floaters are ready to help you make the most of your windows of opportunity. Whether you're applying liquids, granular materials, or both, you'll be riding high in a machine that's designed to meet the needs of professional applicators. It's about rugged construction. Machines with productivity improving features, the best service and support network with the industry and a legacy of leadership that puts a premium on delivering real value.

• SCR maximizes horsepower because the system is separate from the engine
• The design leads to better fuel economy and improved engine durability
  • You still have the flexibility to choose among diesel fuel varieties and grades
• SCR meets stringent Tier 4 B/Final emission standards

MORE COMFORT MEANS MORE ACRES.

When application windows are narrow and every hour in the field counts, operator comfort is no luxury - it's absolutely essential. Comfortable operators are productive operators and they help boost your bottom line. That's why Titan Series floaters are equipped to let operators work longer with less fatigue. Ergonomic seating, easy-to-reach controls and an ultra-quiet interior are just a few of the features that help make the most out of long days in the field.

AIR-RIDE SEAT

• Adjustable for positions, ride firmness and lumbar support
• 40-degree right-hand swivel seat gives you a 180-degree full field vision
  • Less neck strain
• Instructional seat cab can be folded down when not in use to provide a mobile office with cup holders
• Sufficient room to stretch your legs
• Elevated footrest pegs provide a welcome alternative position
• Luxury Cab Option
  • Red leather operator and instructional seat
  • Leather wrapped steering wheel
  • Carpeted floor mat

CONTROL SWITCHES

• Chassis and application control switches are ergonomically placed
  • Attached to operators seat or in the headliner to the right of the operator
• Spreading and spraying controls are located on the control lever for simple one-handed operation
• Cruise control operation is performed using the switches located on the right-hand control console

APPLY ADVANCED TECHNOLOGY FOR IMPROVED PRODUCTIVITY.

Built to get more out of every day and pack more productive days into every season, Titan Series floaters are ready to help you make the most of your windows of opportunity. Whether you're applying liquids, granular materials, or both, you'll be riding high in a machine that's designed to meet the needs of professional applicators. It's about rugged construction. Machines with productivity improving features, the best service and support network with the industry and a legacy of leadership that puts a premium on delivering real value.

DURABILITY AND STRENGTH

• 4 times the life of earlier designs with high-strength, low-alloy (HSLA) cold-formed rectangular steel tubing
• Continuously welded, not bolted
• Open architecture frame design that allows for better airflow to keep engine running cool and efficient

DESIGNED FOR SOLID PERFORMANCE.

The performance and productivity of any floater rests solidly on the structural integrity of its frame. That's why 4-wheel Titan Series floaters are designed to withstand the most demanding field conditions. These sturdy frames are built of 10 x 4 x 0.375-inch rectangular cross-section steel tubing. And they're continuously welded, not just bolted together. Welded-in torsion tubes plus top and bottom doublers in key stress areas combine to form a rigid frame that withstands heavy loads and protects the mounted components from field-induced fatigue failures.

• 4040 floater offers the 340 horsepower engine
• 4540 floater offers the 410 horsepower engine
• 4030 floater offers the 330 horsepower engine
• 4530 floater offers the 400 horsepower engine
• Massive rear axle rated at 34,000 pounds with wheel end planetaries and a 2-speed air-shift rear end

DRUM BRAKES

• Spring applied, air released drum brakes for effective stopping capability
• Front 16.5 x 6-inch shoes with 30 cubic inch chambers
• Rear 16.5 x 5-inch shoes with 36 cubic inch chambers

LEAF-SPRING SUSPENSION

• Cushions the ride for operators and components
• Extends service life
• Reduces operator fatigue

• Case IH have several tire options that you can choose from to best fit your needs and floatation requirements
  • Bias Ply and Radial construction
  • Stubble guard front tire option

Tanks

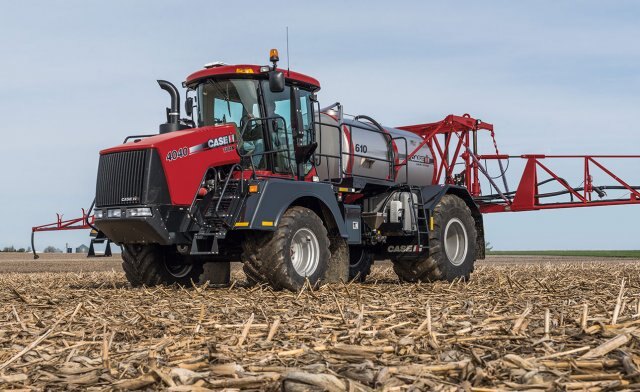

The Case IH 610 Liquid System is available in 1,800- and 2,000-gal. (6,814- and 7,571-L) capacities. The tanks are 12-gauge, 304 stainless-steel construction and feature internal baffles (one on the smaller tank and two on the larger tank) for stability.

Whichever tank size you choose, you get solid design and long-lasting stainless-steel construction. The full-length sump ensures uninterrupted product flow and complete product cleanout. Plus:

610 Liquid System Tanks

• A 2-in. (5.1-cm) removable sparge tube runs the length of the tank for total product mixing and continuous in-field agitation
• The optional fresh-water rinse system completely cleans the tank and reduces the chance of residual chemical contamination

Plumbing

The heart of any liquid application plumbing system is the pump. At the heart of the 610 Liquid System, you’ll find the hard-working, hydraulically controlled Defco 7600 pump, a proven workhorse that delivers countless hours of moving product reliably.

The Case IH 610 Liquid System is built with the demanding custom applicator in mind. The plumbing is designed to give you the best performance in the business, acre after acre:

610 Liquid System Pump

• Pulse width modulation (PWM) controls the pump speed to precisely deliver the proper rate of product per acre
• Wear on the impeller and internal pump components is reduced by running the pump just fast enough to accurately deliver product and agitate the tank
• Pump housing alignment further enhances system efficiencies and productivity

DEPENDABILITY

ACCURATE. FLEXIBLE. EFFICIENT.

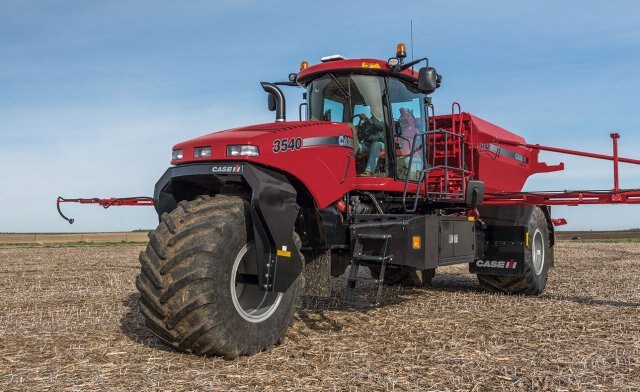

Precise and predictable product delivery is achievable with the 810 Flex-Air applicator featuring three metering gate heights to match rate requirements with field conditions and ground speeds. Dedicated tubes and adjustable deflectors ensure product application accuracy. The main bin uses an 8-inch auger, while the supplemental bins have dual 6-inch augers to feed the metering systems. Sensor-activated augers keep the product in the hopper at all times.

The Case IH 810 Flex-Air™ has a large, 287-cu.-ft. (8.1-cu.-m)-capacity bin. Because the 810 Flex-Air main bin is split, it can carry one or two different blends, allowing you to address a variety of field needs. That flexibility is what puts the “flex” in the 810 Flex-Air — the only system in the industry to offer this configuration in a single bin option.

CO-AP BINS

Case IH 810 Flex-Air applicator co-ap bins are available in 50-cu.-ft. (1.0- or 1.4-cu.-m) capacities. The bins are mounted externally of the main bin. That means main box capacity is not compromised and you get additional application flexibility. Bins are easy to access and easy to service. And the bins tip out for easy, hassle-free cleaning.

Co-ap bins for the Case IH 810 Flex-Air applicator are designed with accuracy and productivity in mind, with field-friendly features like extra-large doors that open to the center for simple loading, and the wind cover latches to make access a breeze. Plus:

• Grease banks are centralized for easy maintenance
• Internal illumination for both co-ap bins and the metering housing for easy monitoring in low-light conditions
• Three metering wheel sizes available to cover all your application needs

Mid-Mounted Booms

Case IH 810 Flex-Air mid-mounted booms are located over the chassis’ center of gravity, forming a very stable spreading platform with reduced boom hop. A parallel-linkage suspension system supports the booms, absorbs shock loads and maintains a level boom through compression springs and centering shocks.

The stable mid-mounted booms fold forward into the spreading position and fold rearward for transport, allowing for excellent visibility while traveling from field to field. They are available in two widths:

• 60 ft. (18.3 m) with 2.5- or 3-in. (63.5- or 76-mm)-diameter tubes
• 70 ft. (21.3 m) with 2.5-in. (63.5-mm)-diameter tubes

The four rear tubes on all boom widths are 3-in. (76-mm)-diameter tubes.

Product Delivery System

Product is transferred from the main bin to the product delivery hopper via an 8-in. (20.3-cm) auger and flows freely to a dual conveyor belt system located directly below the product delivery hopper. The dual conveyor belt system dedicates one conveyor to each boom, allowing for instantaneous on/off and true left/right shutoff capability.

Each conveyor has its own metering gate system with three gate-height adjustments. Vertical product dividers evenly split product flow before it drops off the conveyors into dedicated venturi tubes where it is carried out of each boom tube on a bed of accelerated air for even dispersal on the ground.

The 810 Flex-Air gives you the choice of two controller options:

• The Case IH SCS 5000, for single-product fixed or variable-rate application and data logging
• The Case IH Viper 4, for single- or multiple-product applications at fixed or variable rates
  • The Viper will perform data logging and a variety of field-mapping functions via the full-color touchscreen display

Efficient Design

Versatility

OPTIMUM CONTROL MEANS MAXIMUM EFFICIENCY.

Thoughtfully designed, well laid-out controls let operators make the most of every hour in the field. Advanced control technologies increase accuracy, minimize over- or under-applications, and get every bit of value from each drop or granule you apply. Titan Series floater control options give you a range of ways to get the very most out of your floater, and your application windows.

VIPER 4

• 12.1-inch Touch-Screen Interface
• Displays: boom status, application rate and pressure readings
• Functions as a stand-alone rate controller or it can be an integral part of guidance or mapping systems
• Available for all versions of the 810 Flex-Air Applicator and 610 Liquid System

Wide Open, Easy Access

• The front-tilt hood opens easily for access to:
  • The engine
  • Coolers
  • Daily checkpoints
• The swing-out grill (available on Titan 4040, 4540, 4030 and 4530 models) opens wide to provide hassle-free access to clean the radiator and cooling system
