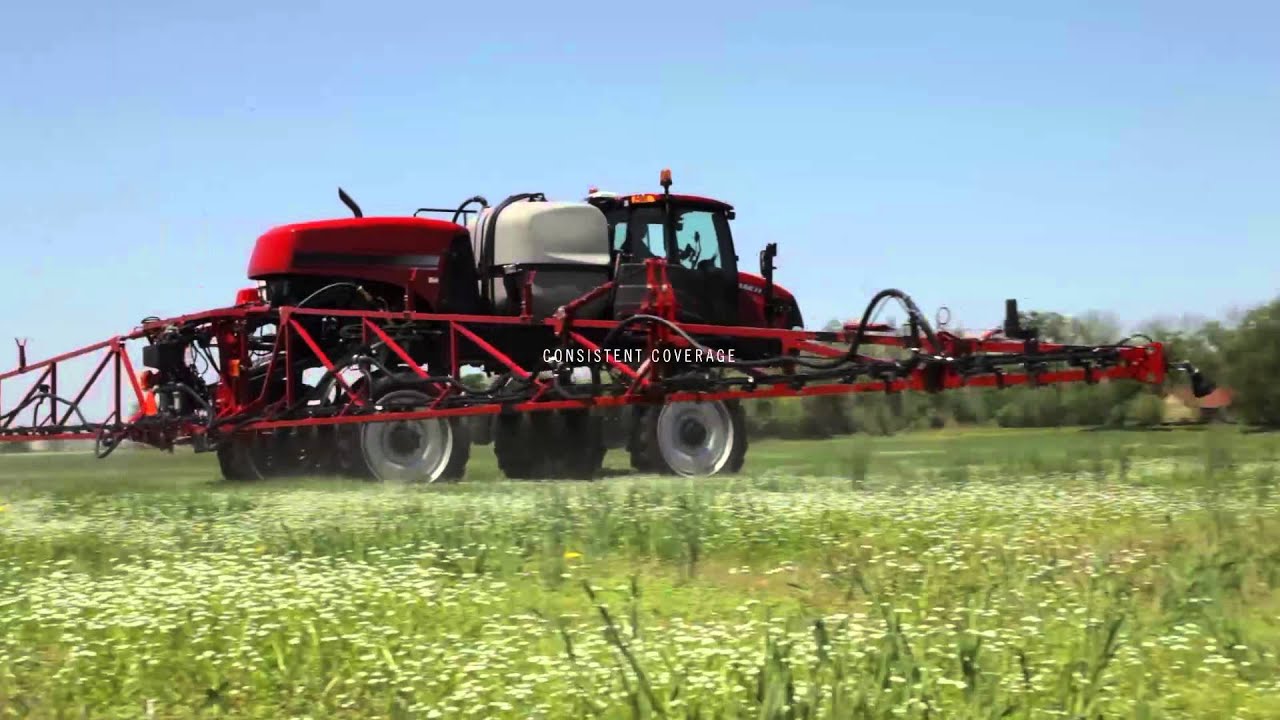

BIG-TIME FEATURES IN A RIGHT-SIZED PACKAGE

• Higher clearance than any competitive sprayer in its class – 62 inches (158 cm) with R42 tires
• Hydrostatic three-speed transmission provides smooth, reliable shifting and excellent value
• Best-in-class trailing-link suspension creates a more comfortable ride by absorbing both the vertical and lateral shocks that come with faster speeds and tougher terrain

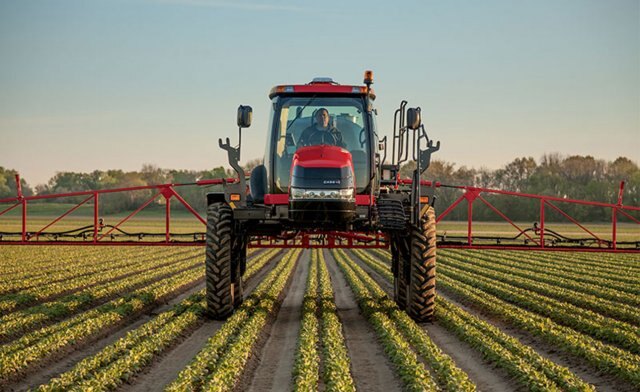

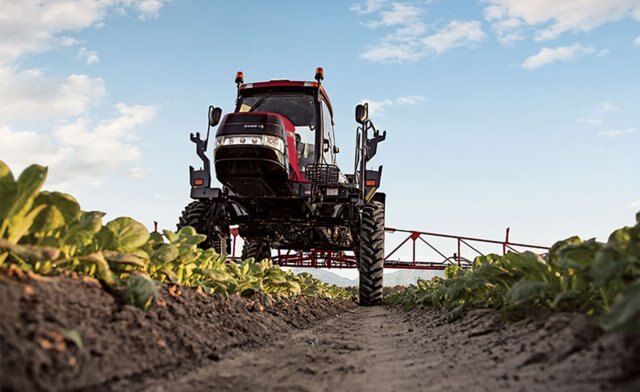

• Unique Case IH cab-forward, rear-engine design distributes weight more evenly and allows you to get into wet fields sooner
• 165-hp 6.7-liter Case IH FPT engine

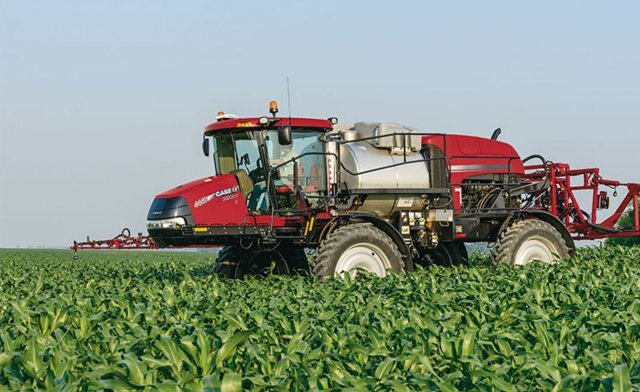

• 660-gallon mid-mount poly product tank

SPRAY WHEN YOU HAVE TO

• The cab-forward, rear-engine design provides:
  • More equal weight distribution across the machine
  • Gets you into wet fields earlier for more timely application with less rutting and soil compaction
• Optional 360-degree HID lighting adds hours to your day
• Optimum use of efficient horsepower means you can cover more acres faster

LONG HOURS WON'T FEEL SO LONG

• Surveyor cab offers:
  • Exceptional space to work in and allows the operators to stretch out their legs
  • Vast amounts of cab glass and a well-thought-out cab design offer unrestricted visibility to the front and sides
    • Helps when traveling down the field or maneuvering around obstacles
  • A gun sight on the front hood that helps you line up your pathway
  • A seat-mounted control console moves with the seat for near-effortless operation of sprayer controls
  • The AFS Pro 700 color display can be mounted on the control console or on a separate mounting bar
    • Allows for line-of-sight visibility of rate control and guidance functions

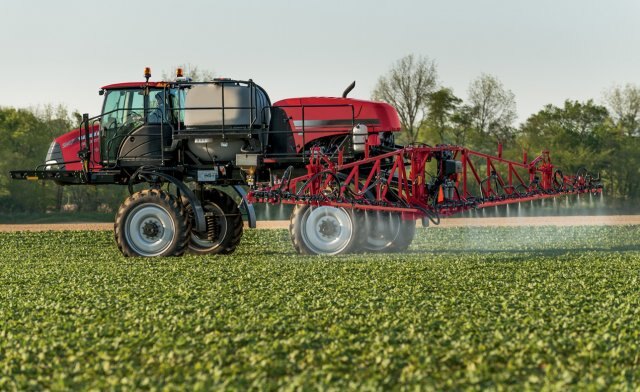

DISTINCTIVE APPEARANCE. UNMATCHED PERFORMANCE.

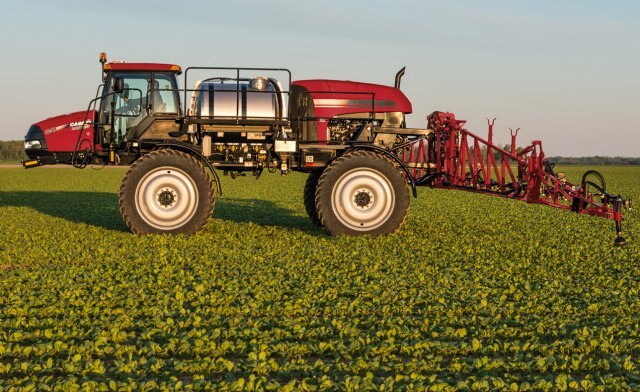

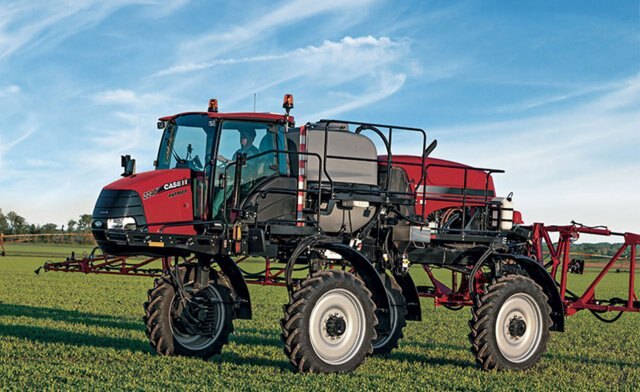

The "cab-forward, rear-engine" configuration gives Case IH Patriot sprayers their distinctive look and their performance edge. This design puts the static weight of the cab and engine over the front and rear axles. The dynamic weight of the product tank is in the center of the machine, so there is more even weight distribution between the axles when the tank is full and the booms are out. Even weight distribution allows for less rutting and soil compaction in any weather condition.

MAKE YOURSELF COMFORTABLE

• The Surveyor cab and smooth ride allow you to work longer hours with less fatigue
• Sitting a full sprayer length away from the engine means an exceptionally quiet ride

SUPERIOR SUSPENSION

• The aircraft-style trailing link suspension provides a smooth ride across any field
• Absorbs both vertical and lateral shock loads in ways no other suspension package can
• Optional active suspension is perfect to make light work of hilly terrain

EVEN WEIGHT DISTRIBUTION

• The cab-forward, rear-engine design allows the machine to provide an extremely light footprint, yet maintain powerful performance
• The even weight distribution allows you to get into the field sooner and on to the next with less rutting and soil compaction

• Constructed of welded, one-piece rectangular steel tubing
• Engineered for durability and long service life
• The rigid, low-deflection frame not only protects the cab, product tank and power plant from field loads, but also provides a stable attachment point for the sprayer's booms

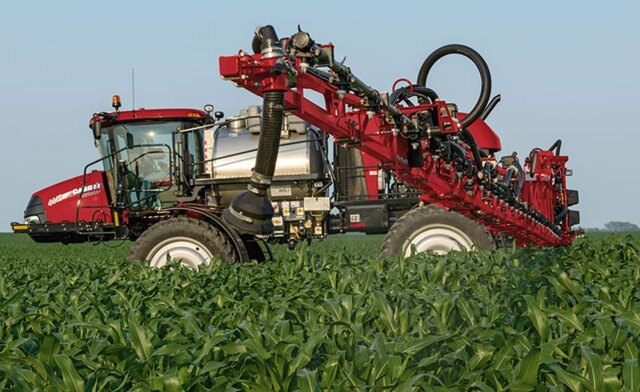

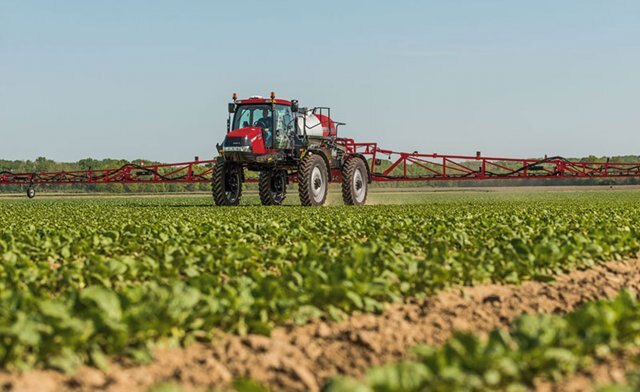

HEAVY-DUTY BOOM CONSTRUCTION

• Engineered for toughness and rigidity
• Large, rectangular tube structure and a truss-style design with fewer but larger support members are the basis for their strength and durability
• Independent right and left booms, plus full boom and boom tip breakaway features, are designed to respond to tough field stress loads

ACCUBOOM

• AccuBoom automatic boom section control automatically turns off boom sections when the sprayer enters an area that has already been sprayed and then turns the sections back on when leaving the applied area
• AccuBoom can be utilized on Patriot sprayers equipped with the Case IH Viper 4 or AFS Pro 700 rate controller and a GPS system

AUTOBOOM

• AutoBoom automatic boom height control detects changes in terrain and adjusts the booms accordingly
• This decreases operator fatigue and wear and tear on the machine and increases the accuracy and coverage of the applications
• Configure your AutoBoom system with additional ultrasonic sensors or gauge wheels to maintain a level spray platform
  • This will provide the best possible application and maximize boom life

AUTOFOLD PLUS

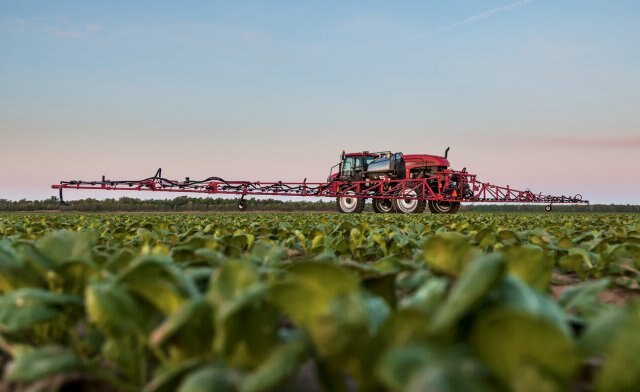

• AutoFold Plus fold/unfold feature is part of the Case IH 120 ft. (36.5 m) spray boom package
• With the touch of a switch, the inner-, mid- and outer-boom sections are completely unfolded and the center section height is lowered to its most recent setting
  • In about 30 seconds
• The return-to-height feature eliminates guesswork about boom height when moving from field to field

PARALLEL-LINK DESIGN

• Patriot booms offer greater durability and longer service life
• The parallel-link design delivers the versatility retailers and growers need with a 65-inch range for 3240/3340/4440 and a 63-inch range for 2240 of motion for spraying pre-plant, post-tassel, or anytime in between

A HIGHER LEVEL OF SPRAY TECHNOLOGY

• Realize greater control with the most accurate application system you can get
• AIM Command delivers constant product application rates and spray pressures even as your speed changes

IMPROVED DRIFT CONTROL

• Changing weather and wind can make spray patterns difficult to control
• AIM Command allows you to toggle between two pre-set spray pressures, providing "on-the-go" drift control

ELIMINATE OVER/UNDER APPLICATIONS

• Constant boom pressure and droplet size can be maintained throughout an 8-to-1 speed range
• AIM Command applications result in better coverage in every acre of the field
• This eliminates under- or over-application of chemical rates
  • Even at headlands and corners

INDEPENDENT PRESSURE CONTROL

• Constant spray pressure at the boom is maintained for the operator by the system's independent pressure control
• The AIM Command system's computer uses the sprayer's product pump to control pressure independent of application rate and ground speed

• In addition to all the benefits of AIM Command, AIM Command PRO adds critical refinements for even greater accuracy
• Turn Compensation: Different parts of boom traveling different speeds will now spray appropriate rates based on target rate
• Individual Nozzle Swath Overlap Control
  • Minimizes skips, over-spray and over-laps
  • Prevents over-application, crop damage
  • Potential chemical savings
  • Input savings in addition to AccuBoom
  • Adjustable from 0% to 100% overlap

TAKE ABSOLUTE CONTROL

Sprayer control switches are ergonomically placed - attached directly to the operator's seat. The most commonly used controls are placed on the hydrostatic control lever for one handed operation.

Cab features:

• Instructional seat
• Optima air-ride seat
• Tilt and telescoping steering column
• A-post gauges and read-outs
• AFS Pro 700 touch screen monitor (Optional)
• Wheel track adjustment (under armrest cover)
• Right-hand control console
• Hydrostatic control lever
• Climate controls

HAVE A SEAT

• The Patriot air-ride seat is adjustable for position, ride firmness and lumbar support
• On the Patriot 4440
  • An exclusive, 40-degree, right-hand swivel seat gives you a 180-degree full field of vision
  • The instructional seat can be folded when not in use to provide a convenient workstation with cup holders

CASE IH VIPER 4

• The optional Case IH Viper 4 controller is a touch-screen interface that displays boom status, application rate and pressure readings
• Can function as both a stand-alone rate controller and as an integral part of guidance or mapping systems
• Features a highly visible 12.1-inch screen

AFS PRO 700

• The optional AFS Pro 700 color display puts total control at your fingertips
• Allows you to:
  • Monitor and control both guidance functions and application rate
  • Track ground speed
  • Acres covered
  • Other variables
• Integrates seamlessly with AFS software to store, view and manage precision farming data, helping you adjust for in-field variability and improve yield potential

CASE IH SCS 5000

• The optional Case IH SCS 5000 controller provides a quick visual check of critical spraying functions such as boom and pressure readings
• A boom section switch position allows operators to focus their attention on the field

PATRIOT 4440 SPRAYER WITH 8.7-LITER ENGINE

NEW SPRAYER, NEW ENGINE

• Features an 8.7-Liter Case IH FPT engine with a base horsepower rating of 335 hp and peak horsepower of 374 hp at 2000 rpm
• Signifies a greater than 12% increase in both base and peak horsepower ratings
  • Compared to previous models
• Peak torque increases from 1,020 ft-lbs. to 1,0143 ft-lbs. at 1500 rpm
  • A greater than 5% improvement

• These in-line power plants provide optimum field efficiency and maximum horsepower to the ground in even the toughest field conditions
• The Patriot 3340 & 3330 features
  • A 6.7-Liter Case IH FPT inline 6-cylinder turbocharged, after-cooled, electronically controlled diesel engine
  • The 3340 produces 285 rated hp (309 peak)
  • The 3330 produces 250 rated hp
• The Patriot 3240 & 3230 features
  • A 6.7-Liter Case IH FPT inline 6-cylinder turbocharged, after-cooled, electronically controlled diesel engine
  • The 3240 produces 250 rated hp (270 peak)
  • The 3230 produces 220 rated hp
• The Patriot 2240 features
  • 6.7-Liter Case IH FPT in-line 6-cylinder turbocharged, after-cooled, electronically controlled diesel engine
  • 165 rated hp (173 peak)

•  Feature a parallel, cross-flow design using heavy duty variable displacement pumps and drive motors
• If a wheel slip or spin occurs, the traction assist feature provides sufficient oil to opposing wheels to power through that tough field condition

• Lightweight, easy-open hoods on the Patriot sprayer models give you unrestricted access to service items
• Allows for quicker checks or service and gets you back in the field sooner
  • Enhancing the machine's productivity
