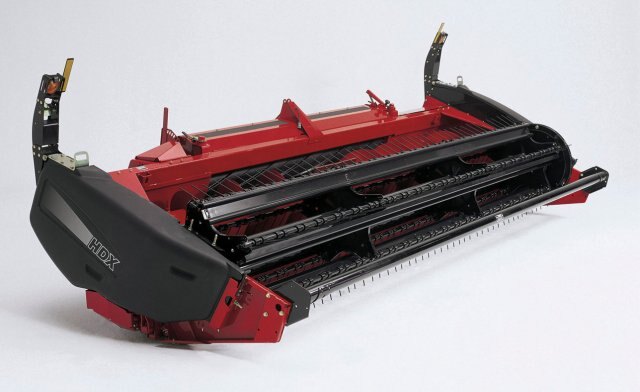

Case IH Sicklebar Headers

  • Case IH Sicklebar Headers
  • Case IH Sicklebar Headers
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
BUILT FOR HEAVY CROP CONDITIONS

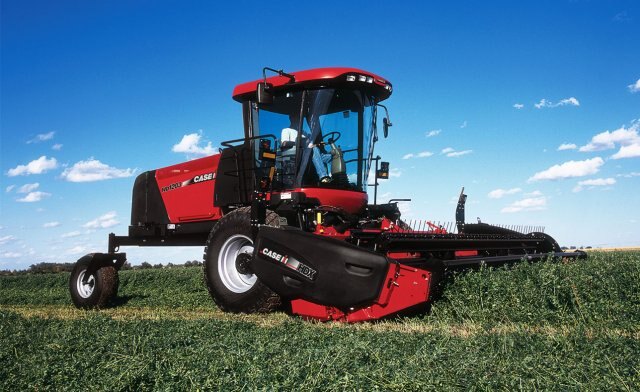

Case IH HDX 2 Series sicklebar headers use the counter-stroking action of dual sickles to shear crop cleanly while the unique floating auger keeps the crop moving smoothly to the conditioning rolls. Four models are available in cutting widths from 12 ft. 3 in. to 18 ft. 2 in. (3.73 to 5.56 m). The headers are compatible with all Case IH WD 3 Series windrowers.
  Available Models
Models Cutting Width Cut Height Range, in. (mm)
HDX122 12 ft. 3 in. (5.5 m) 1.2–6.2 (30.5–157)
HDX142 14 ft. 3 in. (4.34 m) 1.2–6.2 (30.5–157)
HDX162 16 ft. 3 in. (4.95 m) 1.2–6.2 (30.5–157)
HDX182 18 ft. 3 in. (5.56 m) 1.2–6.2 (30.5–157)
  Features

DH3 Draper HeaderMade for the toughest situations

CUTTERBED

 The Case IH HDX 2 Sicklebar Hearder uses a counter-stroking action of dual sickles to shear crop cleanly while a floating auger keeps the crop moving smoothly.

Heavy-duty wobble drives ensure long, trouble-free life
Bolt-on knife sections are standard for easy replacement
Overserrated knife sections provide long life and a clean cut
Double heat-treated range guards provide superior resistance to rock damage
The cutterbar angle adjusts hydraulically from 6 to 12 degrees below horizontal
Available stub-on-stub guards penetrate tough, tangled crops

DH3 Draper Header

UNIQUE FLOATING AUGER

HDX 2 Sicklebar Headers use a unique floating auger to keep the crop moving smoothly to the conditioning rolls.

20-in. (508-mm) auger with 5-in. (178-mm) flighting
Auger floats up to 2 in. (50.8 mm) to let slugs of material pass underneath without plugging
Auger slip clutch protects auger and drive system

DH3 Draper Header

SKID SHOES

Five Position Adjustments

Skid shoes feature five position adjustments. Combine this with the hydraulic adjustable header and you can adjust guard angle and cut height from 1.2–6.2 in. (30.5–157 mm).

DH3 Draper Header

AVAILABLE OPTIONS FOR THE WD3 AND HDX 2 SERIES

In-cab control of reel speed
In-cab control of windrow width
Header gauge wheels
Tall-crop lean bar kit
Crop dividers
Built to work in heavy crop conditions

HDX 2 Series sicklebar headers

Feature a conditioning system that is built to work in heavy crop conditions. Conditioning rolls crimp stems thoroughly for fast dry down. The roll pressure system uses a torsion bar, which allows conditioning rolls to automatically separate to clear slugs and the chevron pattern provides even windrow formation

DH3 Draper Header

Rubber-On-Rubber

Rubber-on-rubber conditioning rolls are available on all models for a thorough, gentle cleaning

DH3 Draper Header

Steel-On-Steel

Steel-on-steel rolls are available on all models except the HDX122 for tough and versatile for a wide range of demanding crops

Case IH Windrower Hi-Contact Rolls

Hi-contact rolls are available on all models except the HDX122 for complete crush of plant stem; ideal for legume-type crops

Specifications
Model
Sicklebar Headers
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Case IH
