Case IH Pull-Type Disc Mowers

  • Case IH Pull Type Disc Mowers
  • Case IH Pull Type Disc Mowers
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
SUPERIOR PRODUCTIVITY

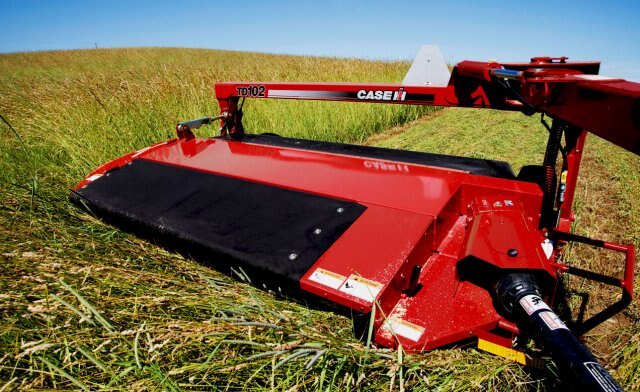

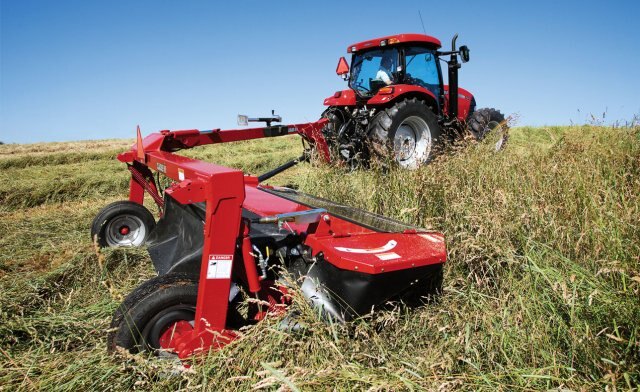

The Case IH TD102 pull-type disc mower features a smooth ride, clean cut, superior trailing ability and low transport height. It also offers easy tractor hookup using a simple clevis hitch.
  Available Models
Models Cutting
Width		 No. Disks No. Knives/
Disk		 Input
Speed
TD102 10 ft. 4 in.
(3.16 m)		 8 2 540 rpm
  Features

Single-Pass Efficiency - Stretched Superior Crop Flow

ensure quick mowing

The Case IH TD102 pull-type disc mower features a modular cutterbar design for superior crop flow that reduces streaking and ensures quick mowing.

The cutterbar is designed with:

Shock protection to minimize repair expense
        Discs protected from internal gear damage by the drive hub
Crop deflector shields located behind each end of the cutterbar to direct cut crop into a wide swath inside the tire path
Two end discs that co-rotate to provide a narrower swath
        Able to adjust swath from 60 in.–95 in. (1.5 m–2.4 m)
Left cutterbar shield is hinged for easy service access

Single-Pass Efficiency - Stretched

80-degree constant velocity joint

permit tight turns and reduce noise

Overload protection is standard
Primary PTO uses an 80-degree constant velocity joint at the tractor end to permit tight turns, reduce noise and extend service life
Standard tractor tire bumpers protect PTO driveline and tractor tires

Single-Pass Efficiency - Stretched

Adjustable from 2-10 degrees

Tilt is adjustable from 2–10 degrees using a mechanical turnbuckle.


Single-Pass Efficiency - Stretched

Easy to attach and detach, folding end shields, low transport height

simple clevis hitch

Attaching and detaching the mower from the tractor is easily accomplished with a  simple clevis hitch . The TD102 can be pulled by lighter-weight tractors , as weight is pulled versus carried on a 3-point hitch.

Transport width is just 10 ft. 10 in. (3,300 mm) when end shields are folded
Removable parking jack stand is stored on top of tongue assembly
Hydraulic tongue swing cylinder powers the unit from transport to operating position
Has a 12-in. (305-mm)-minimum cutterbar ground clearance in transport position
Hinged right-side cutterbar shield folds up for narrow transport
Safety tow chain standard
Low transport height eliminates the need for implement lights
Specifications
Model
Pull-Type Disc Mowers
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Case IH
