Patented Parallel Linkage

Parallel link maintains opener depth from the top to the bottom of its entire range of motion:

• 9 in. up and 7 in. down
• Depth is adjustable in 1/8-in. increments

Retains the angle at which the knife opener engages the ground:

• Preserves the 1- to 1.5-in. separation between seed and fertilizer bands — ideal for fertilizer availability to seed
• Preserves consistent distance between the knife and the packing wheel

Adjustable hydraulic control of packing and trip force:

• Trip force adjusts from 275–550 lbs.
• Down-pressure/packing force adjusts from 135–215 lbs.

Ultra-Low-Disturbance Opener

Patented, angled double-shoot knife opener works hand-in-hand with parallel linkage to provide:

• Precise seed and fertilizer depth placement
• Positive separation of seed and fertilizer bands
• The ability to handle dry, liquid or anhydrous ammonia fertilizer

Made of tough material:

• Carbide opener tips for prolonged wear

Single-Shank Design

The unique design delivers both seed and fertilizer on one shank:

• Uses half the number of shanks vs. competitive models that use two separate shanks to place seed and fertilizer

Advantages of fewer shanks:

• Improved residue flow
• Decreased chance of plugging and dragging
• Ideal for heavier, tougher residue common with new genetics
• Better field finish

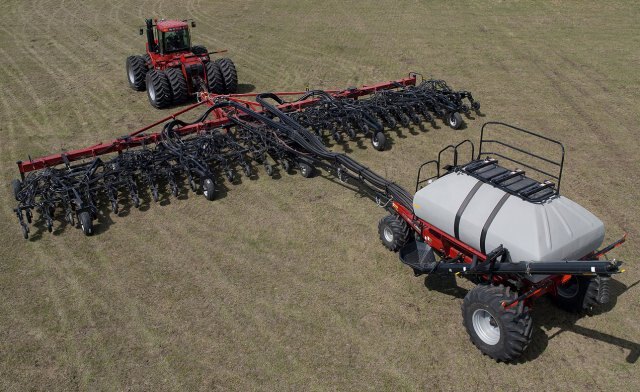

Wide Working Width

Available in three working widths to cover more acres in less time:

• 50 ft. (15.2 m)
• 60 ft. (18.3 m)
• 70 ft. (5 m)

All three working widths are:

• Available in 10- or 12-in. rows
• Capable of operating with tow-between and tow-behind air systems
