ID # 38753879

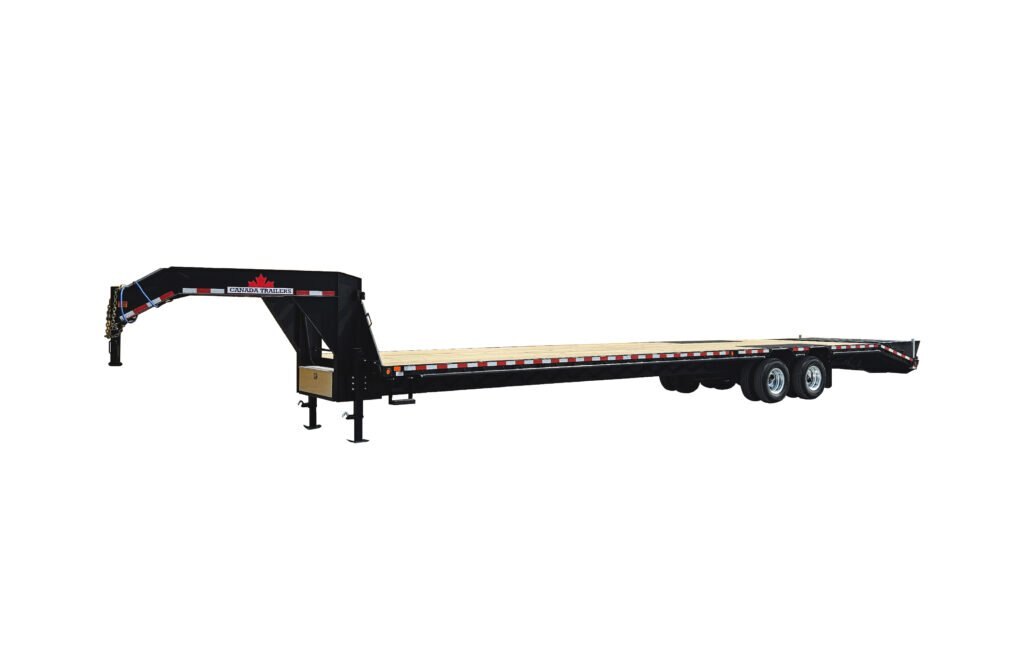

Canada Trailers GOOSENECK XD SERIES GNXD32

  • Canada Trailers GOOSENECK XD SERIES GNXD32
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Specifications
Model
GNXD32
Category Name
Trailers
Year
2025
Sale Type
New
Manufacturer
Canada Trailers
Size
102" x 384"
Weight
9,278 lbs
Payload
20,722 lbs
standard features
GVWR
30,000 lbs
JACK
12,000 lb 2 Speed Jacks
PLUG
7-Way RV Plug
AXLES
(2) 15,000 lbs Axles w/Oil Bath hubs
FRAME
12" @ 22 lbs. Wide Flange I-Beam Frame Torque Tube Crossmembers every 16" HD 1/4" Plate over Axles
RAMPS
5' Full Width Ramps
TIRES
ST215/75R15 LRH Radial
BRAKES
Electric on All Axles
FINISH
Powder Coat + Scorpion Stone Guard
LIGHTS
Sealed Beam, L.E.D.
COUPLER
Adjustable Gooseneck Coupler
TIE DOWNS
Stake Pockets & Rub Rails
BEAVERTAIL
5' Angle Iron Beavertail
ELECTRICAL
Sealed Harness System
SIDE STEPS
On Both Sides
SUSPENSION
Slipper Spring Suspension
DECK HEIGHT
36"
WINCH TRACK
Driver's Side
Loading Lights
Rear Facing w/ Remote On/Off
SPARE TIRE MOUNT
On Gooseneck
GOOSENECK LENGTH:
9'
popular options
Spare Tire
Hydraulic Brakes
