ID # 13228864

2014 Can-Am Maverick™ Max 1000R

  • 2014 Can Am Maverick™ Max 1000R
  • 2014 Can Am Maverick™ Max 1000R
  • 2014 Can Am Maverick™ Max 1000R
  • 2014 Can Am Maverick™ Max 1000R
  • 2014 Can Am Maverick™ Max 1000R
  • 2014 Can Am Maverick™ Max 1000R
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
  • Video Button Maxresdefault
Videos
Retail: $20,399 CAD
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Maverick MAX

The four-seater sport side-by-side vehicle. Get all the breakthrough technology and power of the Can-Am Maverick, with a longer wheelbase and room for four people. Get ready for the Can-Am Maverick MAX.

Highlights - Maverick MAX 1000R:

  • 29.5 in. Longer Wheelbase: With a 113.8 in. wheelbase, it provides more room than other four-person sport side-by-side vehicles - 6.4 in. more than the Polaris Ranger RZR XP 4 900.
  • Individual Grab Bars and Handhold: Instead of one long, shared grab bar, each passenger gets their own, making the ride more comfortable and ergonomically sound.



Specifications
Model
Maverick™ Max 1000R
Category Name
ATVs
Year
2014
Sale Type
New
Manufacturer
Can-Am
Color
Yellow
Engine
V-twin, SOHC, 8-valve (4 valves per cylinder)
Bore And Stroke
91 x 75 mm
Starting
Electric
Transmission
CVT, sub-transmission with high, low, park, neutral and reverse; standard engine braking
Suspension (Front)
Double A-arm, FOX PODIUM X Performance 2.0 HPG piggyback shocks with compression and preload adjustments; 14 in. (35.6 cm) travel

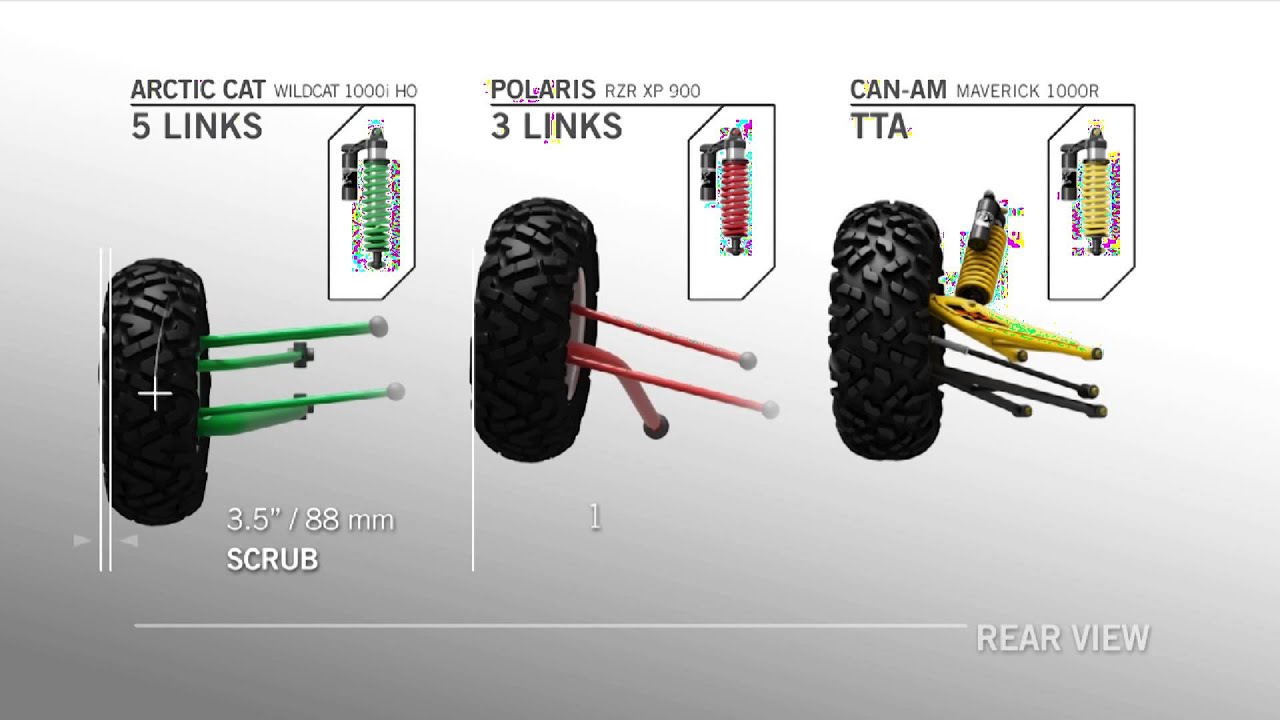

Suspension (Rear)
Torsional Trailing A-arms (TTA) independent with sway bar, FOX PODIUM X Performance 2.0 HPG piggyback shocks with compression and preload adjustments; 14 in. (35.6 cm) travel
Brakes (Front)
(2) 220 mm ventilated disc brakes with hydraulic twin-piston (32 mm) calipers
Brakes (Rear)
(2) 214 mm ventilated disc brakes with hydraulic 1-piston (32 mm) caliper
Tires (Front)
27 x 9 x 12 in. (68.6 x 22.9 x 30.5 cm)
Tires (Rear)
27 x 11 x 12 in. (68.6 x 27.9 x 30.5 cm)
Length
148 in. (376 cm)
Width
64 in. (162.6 cm)
Height
78 in. (198 cm)
Wheelbase
113.8 in. (289.1 cm)
Ground Clearance
12.5 in. (31.75 cm)
Fuel Capacity
10 gal. (37.8 l)
Weight
1,547 lbs. (702 kg) dry
Displacement
976 cc
Fuel System
iTC™ with EFI and 54 mm throttle body, 2 Siemens VDO injectors
Cooling
Liquid
Drive System
Selectable 2WD / 4WD shaft driven with Visco-Lok auto-locking front differential
Brakes Rear
(2) 214 mm ventilated disc brakes with hydraulic 1-piston (32 mm) caliper
Brakes Front
(2) 220 mm ventilated disc brakes with hydraulic twin-piston (32 mm) calipers
Wheels
Cast-aluminum
Lighting
(4) 60W projectors with tail lights / brake light
Suspension Front
Double A-arm, FOX PODIUM X Performance 2.0 HPG piggyback shocks with compression and preload adjustments; 14 in. (35.6 cm) travel
Suspension Rear
Torsional Trailing A-arms (TTA) independent with sway bar, FOX PODIUM X Performance 2.0 HPG piggyback shocks with compression and preload adjustments; 14 in. (35.6 cm) travel
Frame
Steel; 2 in. (5.1 cm) diameter, high-strength steel, ROPS-approved
Steering
Adjustable tilt steering
Cargo Box Capacity Glove Box
4.5 gal. (17.2 l)
Cargo Box Capacity Under Driver Seat
3.5 gal. (13.1 l)
Cargo Box Capacity Center Console
0.3 gal. (1.3 l)
Load Capacity Rear Rack
150 lbs. (68 kg) with LinQ™ quick-attach accessory system
