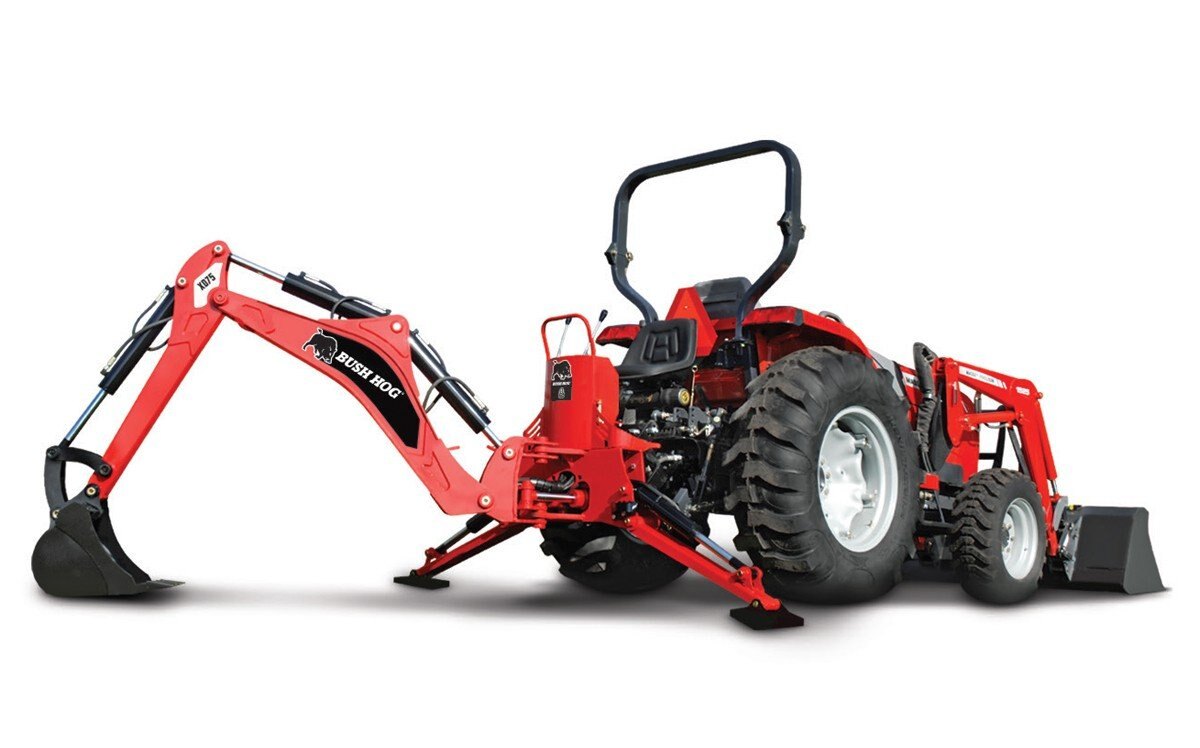

Bush Hog® XD75

  • Bush Hog® XD75
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

XD Series Backhoe

Break ground, not your back!

 Easily access those tight work spaces and get down to some digging. Bush Hog®’s new line of XD series backhoes are designed for tractors ranging from 18 to 100 horsepower along with skid steers and mini skid steers depending on the model. Perfect for digging footers, trenches and all general landscaping and construction needs, the XD series backhoes deliver value and strong performance to your operation.

Digging 7.5 feet deep and reaching 10 feet across, the XD75 breaks ground and keeps on going. With an excavator-style curved boom and easy-to-use controls, the XD75 is ready to handle any ground conditions from topsoil to clay and gravel.
  Performance Features
  • Digging Depth (2 ft. flat bottom): 7’8”
  • Overall Operating Height (fully raised): 119”
  • Reach from Swing Post: 123”
  • Bucket Rotation: 180°
  • Swing Arc: 180°
  Safety Features
  • Stabilizer Width: 89”
  Specifications

Model XD75
Transport Height (with boom fully retracted)  79”
Transport Width (with stabilizers up) 42½”
Loading Height (bucket at 60° rotation) 80”
Ground Clearance 10½”
Transport Length 80”
Transport Weight (base unit only - no bucket or mounts) 800 lbs.
Digging Depth (2 ft. flat bottom) 7’8”
Overall Operating Height (fully raised) 119”
Reach from Swing Post 123”
Bucket Rotation 180°
Swing Arc 180°
Stabilizer Width (Spread) 89”
Stabilizer Width (Transport) 42½”
Operating Pressure 2250 psi
SAE* Dipper Boom Digging Force 2300 lbs.
SAE* Bucket Digging Force 3800 lbs.
Boom Lift Capacity (end of dipper 3’ from ground) 925 lbs.
Hydraulic Volume Requirements 5-7 gpm*
Flow Divider Included
Recommended Tractor HP 30-60 HP
Recommended Skidsteer Requirements 30-60
Bucket Sizes Available 9, 12, 15, 18, 24
3 Point Hitch Cat I (PT300) / Cat II (PT322)
Cylinder Diameters
Main Boom Cylinder Diameter 3.0
Dipper Cylinder Diameter  2.5
Bucket Cylinder Diameter 2.5 (x2)
Swing Cylinder Diameter 2.5
Stabilizer Cylinder Diameter 2.5
Extender Cylinder Diameter -------
