Overview

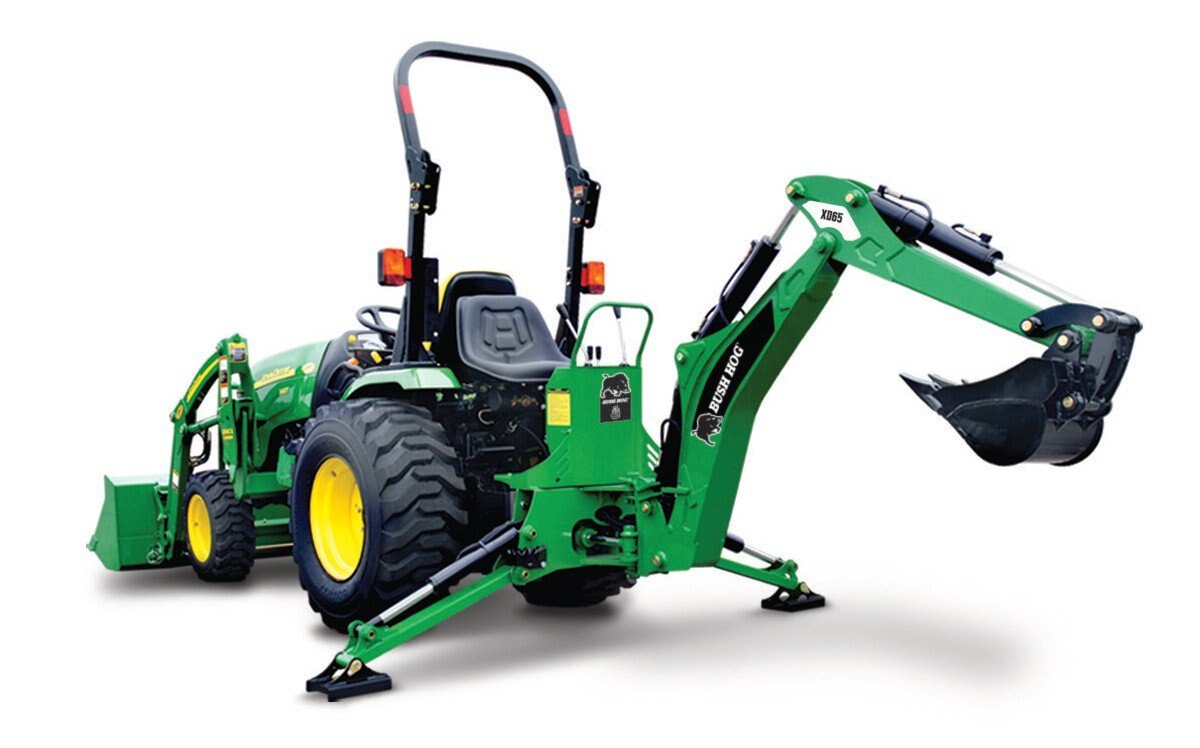

XD Series Backhoe

Break ground, not your back!

 Easily access those tight work spaces and get down to some digging. Bush Hog®’s new line of XD series backhoes are designed for tractors
ranging from 18 to 100 horsepower along with skid steers and mini skid steers depending on the model. Perfect for digging footers, trenches and all general landscaping and construction needs, the XD series backhoes deliver value and strong performance to your operation.

With a digging depth of 6 feet and an 8-foot reach, the XD65 gets down and dirty, breaking the frostline and finishing the job quickly.
  Performance Features
  • Digging Depth (2 ft. flat bottom): 6’4”
  • Overall Operating Height (fully raised): 92”
  • Reach from Swing Post: 100”
  • Bucket Rotation: 180°
  • Swing Arc: 180°
  Safety Features
  • Stabilizer Width: 74”
  Specifications

Model XD65
Transport Height (with boom fully retracted) 63”
Transport Width (with stabilizers up) 40”
Loading Height (bucket at 60° rotation) 62”
Ground Clearance 10 1/2”
Transport Length 68”
Transport Weight (base unit only - no bucket or mounts) 575 lbs.
Digging Depth (2 ft. flat bottom)       6’4”
Overall Operating Height (fully raised) 92”
Reach from Swing Post 100”
Bucket Rotation 180°
Swing Arc 180°
Stabilizer Width (Spread) 74”
Stabilizer Width (Transport) 40”
Operating Pressure 1800 psi
SAE* Dipper Boom Digging Force 1250 lbs.
SAE* Bucket Digging Force 2600 lbs.
Boom Lift Capacity (end of dipper 3’ from ground) 385 lbs.
Hydraulic Volume Requirements 5-7 gpm*
Flow Divider _______
Recommended Tractor HP 18-30 HP
Recommended Skidsteer Requirements Mini Skidsteer
Bucket Sizes Available 9, 12, 15, 18
3 Point Hitch      Cat I (PT300)
Cylinder Diameters
Main Boom Cylinder Diameter      3.0
Dipper Cylinder Diameter 2.25
Bucket Cylinder Diameter 2.0 (x2)
Swing Cylinder Diameter 2.25
Stabilizer Cylinder Diameter 2.0
Extender Cylinder Diameter -






Specifications
Model
XD65
Category Name
Agriculture
Year
2019
Sale Type
New
Manufacturer
Bush Hog
