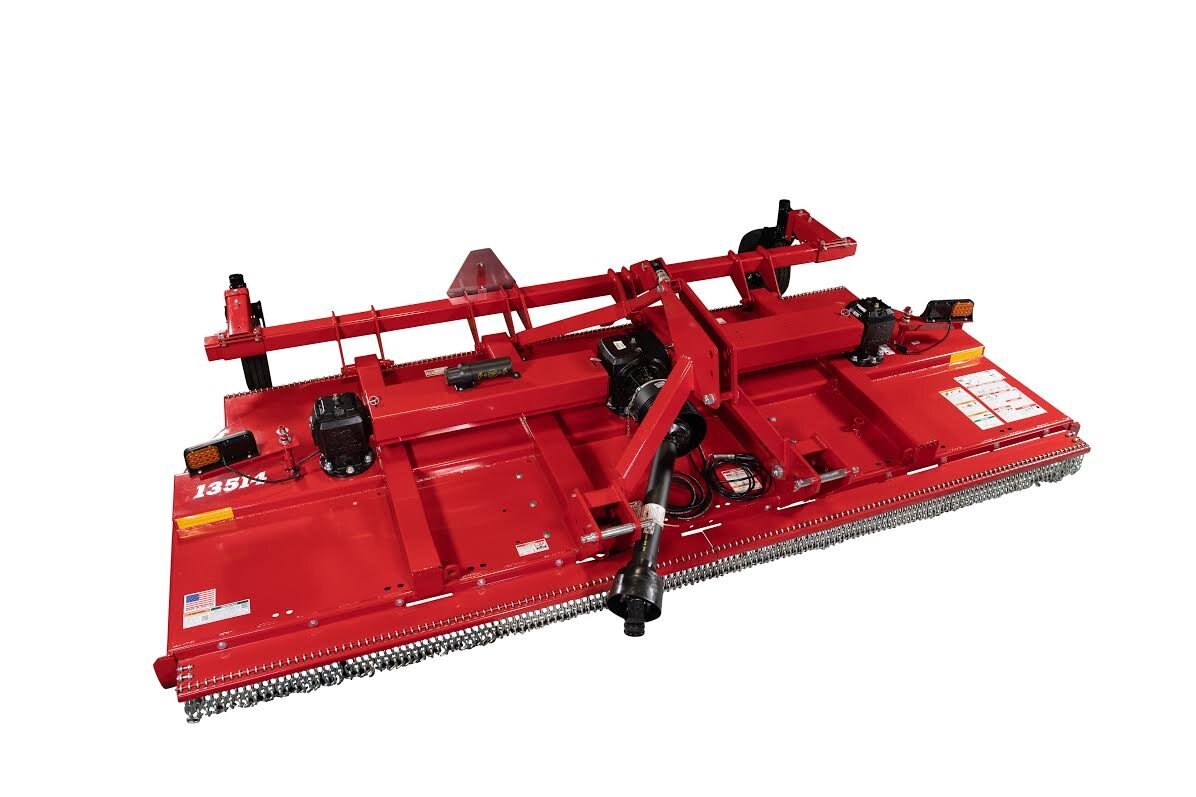

Bush Hog® 3514 Series Multi-Spindle Rotary Cutters

  • Bush Hog® 3514 Series Multi Spindle Rotary Cutters
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
The heavy duty 3514 cuts a 14 foot swath and is ideal for grass, weeds and row crop shredding. Available as a lift or pull model with round blade carriers or straight blade bars and an optional shredding kit, this wide unit covers ground quickly and delivers top cutting performance.

Bush Hog’s entire line of multi-spindle rotary cutters is designed for heavy crop clearing, pasture maintenance, and other big jobs that require a durable, reliable machine. With cutting widths from 7 to 14 feet, and a range of hitch types and mounting options, these machines are built to withstand extreme duty and provide superior performance and productivity with minimal maintenance for many, many years.
  Performance Features
  • Rated for Min. 90 HP Tractors
  • Available With Row Crop Shredding Kit
  • Rubber Element Cross Shafts
  • Heavy Duty Rubber Cushioned Axles
  • High Blade Tip Speeds
  • Three Round Or Straight Blade Holders
  • Slip Clutch Standard
 Construction Features
  • 10-gauge Deck Construction
  • 7-gauge Strongbacks
  • Deep Sidebands
  • Rubber Cushioned Axle Arms
  • Round Blade Pan Or Straight Bar
  • 5 Year Gearbox Limited Warranty
  • Powder Coat Paint
 Safety Features
  • Standard Highway Lighting
  • Warning: For non-agricultural use, OSHA, ASAE, SAE and ANSI standards require the use of chain guards or other protective guards at all times. Bush Hog® strongly recommends the use of such guards for agricultural uses as well, to reduce the risk of property damage, serious bodily injury or even death from objects thrown out by or from contact with the cutting blades.
Product Features

3414 Detail 1Rubber cushioned axle arms are standard equipment on the 3514 model cutters and do an excellent job of absorbing shock loads when operating on rough terrain.

3414 Detail 2Wheel axles are attached by heavy duty pivot pins with replaceable bushings that extend through the cutter strongbacks. This dependable mounting arrangement provides extra strength and less pivot pin wear.
  Specifications
Model 3514
Cutting Width 14-feet
Cutting Capacity 3-inches diameter
Cutting Height 2 to 13-inches
Dimensions (width x length) 14-feet, 7-inches x 9-feet, 1-inch (Lift); 14-feet, 7-inches x 13-feet, 5-inches (Pull)
Type Hitch 3-Point Cat. II & III Standard & Quick Hitch and Center Pull (Self-Leveling)
Deck Thickness 10-gauge
Side Bands 1/4-inch x 10-inches
Minimum Tractor HP 75 PTO (Pull); 90 PTO (Lift)
Driveline ASAE Category 5 (540 RPM – Lift or Pull; ASAE Cat. 4 (1,000 RPM Pull)
Cross Shaft ASAE Cat. 5 Rubber Element with Cat. 4 Shear Pin/Rubber Element
Gearbox HP (3) 210 Center and 205 Outboard
Tractor PTO Speed 540/1,000 RPM
Driveline Protection 4 Plate PTO Slip Clutch
Height Adjustment Choice of Manual Bundle or Hydraulic
Blade Holder(s) Straight or Round
Blades 1/2-inch x 4-inches – Uplift
Blade Tip Speed 15,242 FPM

Blade Overlap



 3-inches
Tires Laminated, Airplane
Axles Rubber Cushioned; Choice of Single or Dual Axle for Pull Models
Deflectors Front Belting and Rear Bands or Chains
Safety Tow Chain Standard for Pull Models
Approximate Weight (Pull with Single Axle) 3,383-lbs.
Warranty 1-year limited warranty with a 5-year gearbox limited warranty
Features

• High Blade Tip Speeds

     • Deep Sidebands

• Standard Highway Lighting










Specifications
Model
3514 Series Multi-Spindle Rotary Cutters
Category Name
Lawn / Garden
Year
2019
Sale Type
New
Manufacturer
Bush Hog
