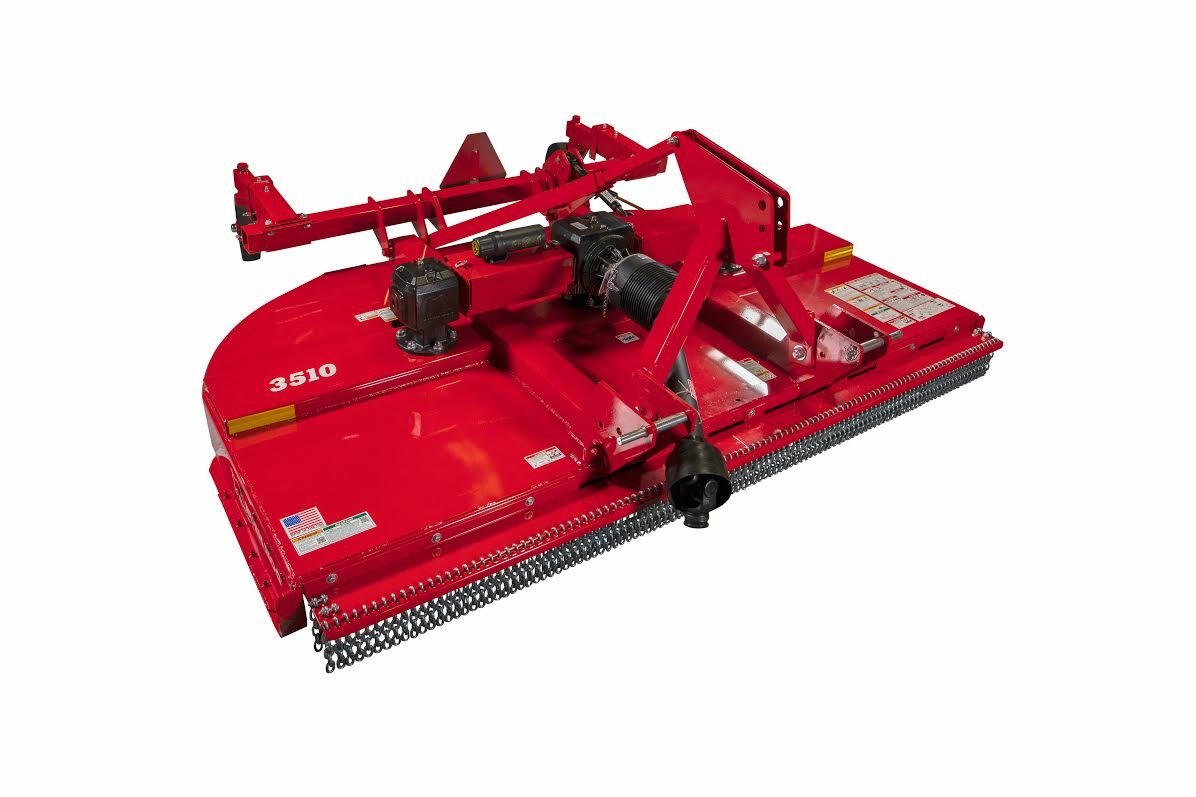

Bush Hog® 3510 Multi-Spindle Rotary Cutter

  • Bush Hog® 3510 Multi Spindle Rotary Cutter
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Bush Hog®’s entire line of multi-spindle rotary cutters is designed for heavy crop clearing, pasture maintenance, and other big jobs that require a durable, reliable machine. With cutting widths from 7 to 14-feet, and a range of hitch types and mounting options, these heavy, rigid deck cutters are built to withstand extreme duty and provide superior performance and productivity with minimal maintenance for many, many years.
 Performance Features
  • 10-feet, 6-inch cutting width
  • Deflector options
  • Folding shields over all cross shafts
  • Wide-angle constant velocity drive-shaft on pull models
 Construction Features
  • Structural steel bracing and reinforced welding at all high stress points
  • Shields over all cross shafts fold away for quick access to clutch or universal joints
  • Special rubber-cushioned axle arms reduce shock during operation & transport
  • Wide-angle, constant velocity drive-shaft on pull models relieves the PTO working angle to reduce vibration

 Product Features

3510 AxleSpecial rubber-cushioned axle arms reduce shock loads during operation and transport.

3510 ReinforcedAll Bush Hog® Multi-Spindle rotary cutters feature structural steel bracing and reinforced welding at all high stress points. Streamlined deck design inhibits trash and water buildup problems.

3510 CvdsA wide angle, constant velocity driveshaft on pull models relieves the PTO working angle. This reduces vibration and allows smoother cutting in sharp turns.

3510 ShieldsShields over all cross shafts fold conveniently out of the way to allow quick access to clutch or universal joints.
 Specifications



MODEL 1130 1140
Cutting Width 10-feet, 6-inches 10-feet, 6-inches
Cutting Capacity 3-inches diameter 3-inches diameter
Cutting Height 2 to 13-inches 2 to 13-inches
Dimensions (WxL) 11-feet, 1-inch x 9-feet, 10-inches (Lift) 11-feet, 1-inch x 13-feet, 5-inches (Pull)
Type Hitch 3-Point Cat. II & III Standard & Quick Hitch Cat II & III Semi-mount and Center Pull (Self-Leveling) Pull Type (Self-Leveling); (7-feet, 10-inches Offset Beyond Tractor Center Line)
Deck Thickness 10-gauge 10-gauge
Side Bands 1/4-inch x 10-inches 1/4-inch x 10-inches
Minimum Tractor HP 50 PTO (Pull); 60 PTI (Lift) 50 PTO
Driveline ASAE Category 5 (540 RPM - Lift, Pull & Semi-Mount); ASAE Cat. 4 (1,000 RPM Pull) Mount); ASAE Cat. 4 (1,000 RPM Pull)     ASAE Category 5
Cross Shaft ASAE Cat. 5 Rubber Element ASAE Cat. 5 Rubber Element
Gearbox HP (3) 210 Center and 210 Outboard (3) 210 Center and 210 Outboard
Tractor PTO Speed 540/1,000 RPM 540 RPM
Driveline Protection 4 Plate PTO Slip Clutch 4 Plate PTO Slip Clutch
Height Adjustment for Heavy Duty Axle only Manual or Hydraulic Manual or Hydraulic
Blade Holder(s) Round Round
Blades 1/2-inch x 4-inches - Uplift 1/2-inch x 4-inches - Uplift
Blade Tip Speed 16,881 FPM/540 RPM; 17,400/1,000 RPM 16,881 FPM/540 RPM; 17,400/1,000 RPM
Blade Overlap 3-inches 3-inches
Tires Laminated, Airplane (Pull only) Laminated, Airplane
Axles Rubber Cushioned; Choice of Single or Dual Axle for Pull Models Rubber Cushioned; Choice of Single or Dual Axle
Deflectors Selection: Front chains and read bands or chains Selection: Front chains and read bands or chains
Safety Tow Chain (Pull with Single Axle) 2,741-lbs (Pull with Single Axle) 2,624-lbs
Warranty 1-year limited warranty with a 5-year gearbox limited warranty 1-year limited warranty with a 5-year gearbox limited warranty
Features High Blade Tip Speeds, Deep Sidebands High Blade Tip Speeds, Deep Sidebands

Specifications
Model
3510 Multi-Spindle Rotary Cutter
Category Name
Lawn / Garden
Year
2019
Sale Type
New
Manufacturer
Bush Hog
