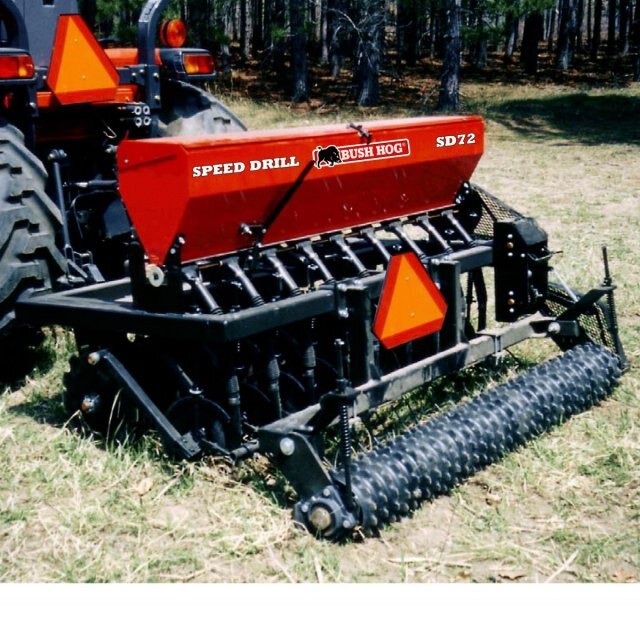

Bush Hog® Speed Seeder Series DRILL

  • Bush Hog® Speed Seeder Series DRILL
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

SPEED DRILL
Speed Seeder Series

Designed with versatility in mind, the Speed Drill utilizes a unique Seed Metering System that makes the Speed Drill capable of handling a wide variety of seed types, all with the same seed box.
  Performance Features
  • 16 in. straight coulters slice the ground, followed by 14 in. concave openers to form a seedbed trench.
  • A 3-speed transmission and precise adjustment of the seed metering slots allow a wide range of seed rates.
  • The gear box is easily accessible for quick changes.
  • A full row of heavy-duty cultipacker wheels follow up to ensure premium seed-to-soil contact.
  Specifications

MODEL SD72 SD96
WORKING WIDTH 72 in. 96 in.
WEIGHT 1385 lbs. 1855 lbs.
HITCH TYPE 3-Pt Cat 1 & 2 3-Pt Cat 1 & 2
MINIMUM HP REQ 35 hp 50 hp
OVERALL WIDTH 76 in. 100 in.
OVERALL LENGTH  66 in. 66 in.
FRONT DISC SPACING 8 in. 8 in.
FRONT DISC SIZE 16 in. (Notched, Straight)
BLADE SPACING 8 in. 8 in.
BLADE SIZE 14 in. (Concave)
SEEDBOX CAPACITY 4.4 bu. 7.7 bu.
SEED METERING SYSTEM Precision Wobble-Slot Meter
SEED METER DRIVE Positive Ground Drive From Cultipacker
SEED DELIVERY SYSTEM Drill Seeding Thru Drop Tubes
ROW SPACING 8 in. 8 in.
NO. OF ROWS 9 12
CULTIPACKER ASSEMBLY WHEEL DIAMETER 10 in. 10 in.
CULTIPACKER ASSEMBLY WHEEL TYPE Cast Iron
AXLE DIAMETER 1.75 in. 1.75 in.



Specifications
Model
Speed Seeder Series DRILL
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Bush Hog
