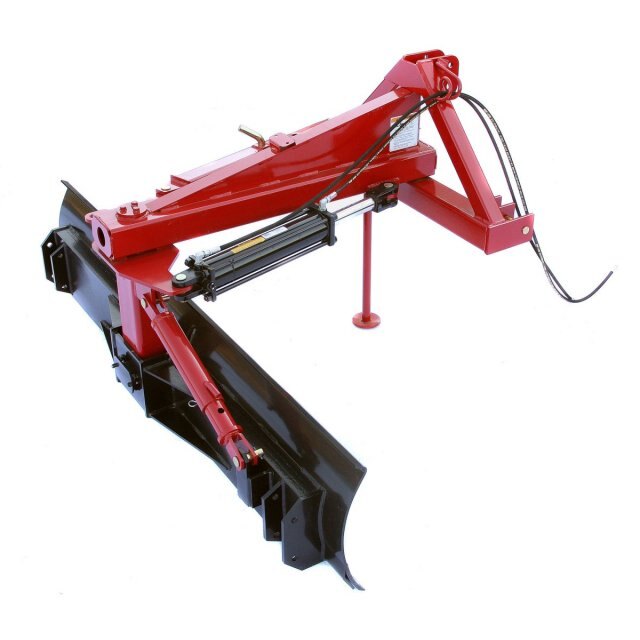

Bush Hog® Rear Mounted Blade 91 Series

  • Bush Hog® Rear Mounted Blade 91 Series
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Rear Mounted Blade
91 Series

The rugged construction of the 91 Series rear blades makes them ideal for a wide variety of applications, ranging from general road maintenance to ditching and terracing jobs. They are rated for use on tractors up to 90 PTO horsepower, and come in an 8-foot width. Both the 70 Series and 91 Series feature a number of tilt, angle and offset adjustments in both forward and reverse positions.
   Performance Features
  • 91 Series is available in 7 ft. & 8 ft. operating widths.
  • Tilt, Angle and Offset Adjustments
  • Reversible Cutting Edge
  • Standard Parking Stand
   Construction Features
  • Heavy-Duty Mainframe
  • High-Strength Reinforced Moldboard
  • Tubular Construction
  • A Frame Construction
  • Powder Coat Paint
  • Heavy-Duty King Pins






Specifications
Model
Rear Mounted Blade 91 Series
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Bush Hog
MOLDBOARD WIDTH
7 and 8 ft.
MOLDBOARD HEIGHT AND THICKNESS
16 x 3/8 in.
MOLDBOARD CUTTING EDGE
1/2 x 6 in. Reversible
HITCH
3-Pt. Cat. l & II
APPROXIMATE WEIGHT
703 lbs. (7 ft.), 740 lbs. (8 ft.)
MAX TRACTOR HP (PTO) 2-WHEEL DRIVE
90 HP
MAX TRACTOR HP (PTO) FRONT WHEEL ASSIST
70 HP
KING PIN DIAMETER
3 in.
TILT ADJUSTMENT
15º up or down (manual or hyd.)
OFFSET ADJUSTMENT
30 in. left or right (manual or hyd.)
ANGLE ADJUSTMENT
45º left or right in forward position, 20º left or right in rev. position (manual or hyd.)
SKID SHOES
Optional
END PLATES
N/A
PARKING STAND
Standard
HYDRAULICS
Optional
