Bush Hog® Planetary Hydraulic Drive Post Hole Digger

  • Bush Hog® Planetary Hydraulic Drive Post Hole Digger
  • Bush Hog® Planetary Hydraulic Drive Post Hole Digger
  • Bush Hog® Planetary Hydraulic Drive Post Hole Digger
  • Bush Hog® Planetary Hydraulic Drive Post Hole Digger
  • Bush Hog® Planetary Hydraulic Drive Post Hole Digger
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

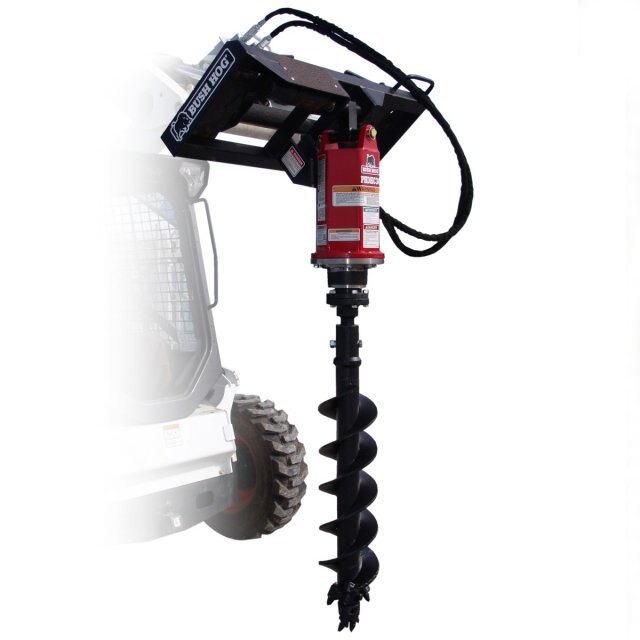

Planetary Hydraulic Drive Post Hole Digger
Models: PHDHF15, PHDHF20, PHDHF30, PHDHC20, PHDHC30 and PHDHC35

The Bush Hog® Planetary Hydraulic drive features a high torque level to power the auger through the most demanding conditions. All augers are heavy industrial grade with 3/8-inch thick flighting. Sized in diameters from 6-inches to 36-inches (depending on model), our Post Hole Diggers are excellent for all soil conditions and solid rock.
   Performance Features
  • Planetary Hydraulic drive features high torque level to power through the most demanding conditions.
  • All augers are heavy industrial grade with 3/8-inch thick flighting.
  • Sized in diameters from 6-inches to 36-inches (depending on model)
  • Excellent for all soil conditions and solid rock.
  Construction Features
  • Farm and Ranch PHDHF Series features a selection of mounting brackets for skid steer loaders and front end loaders.
  • Commercial Grade PHDHC Series features mounting brackets for excavators, skid steer loaders, backhoes and front end loaders.
  • All mounting brackets have a dual swivel feature that keeps the auger vertical while digging.
   Product Features

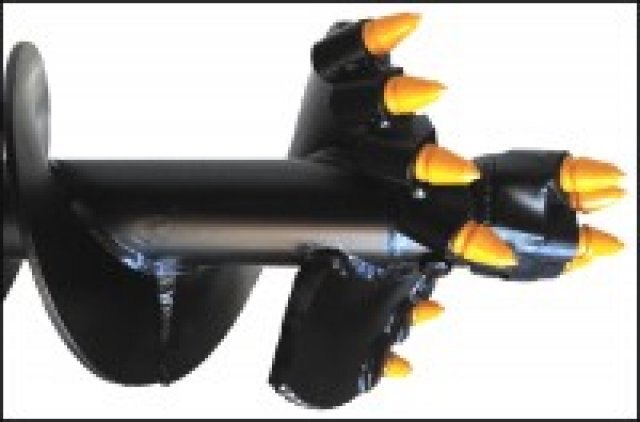

BHPostHolePHDHFInsertSRA1

HRAD* AUGER HEAD

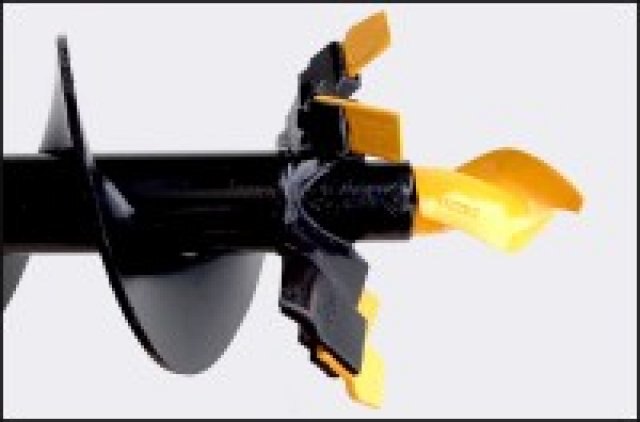

BHPostHolePHDHFInsertSDAHSDA* AUGER HEAD
br/>

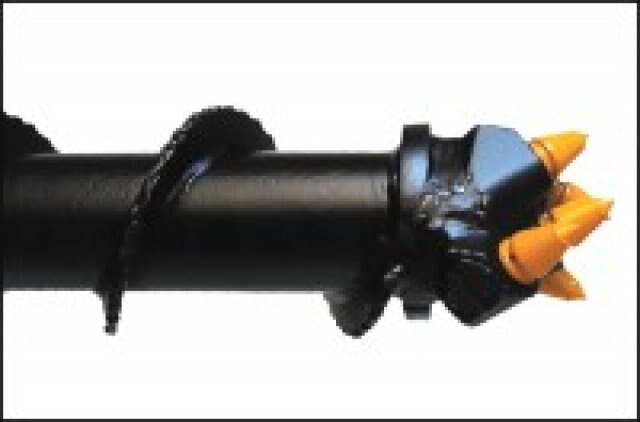

BHPostHolePHDHFInsertSRA 2

HSRA* AUGER HEAD

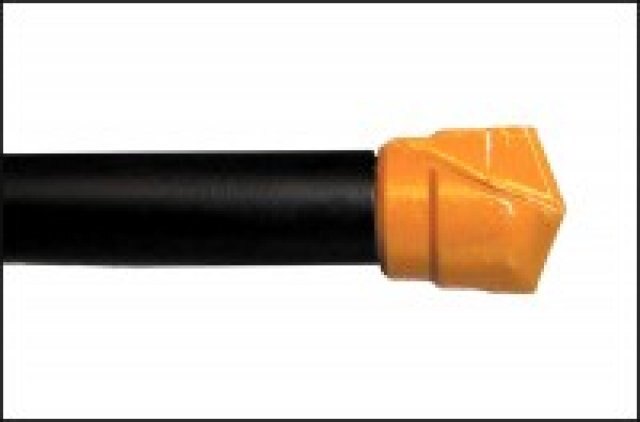

BHPostHolePHDHFInsertTPUFF

T-POST* AUGER HEAD<


<



  Specifications

Model PHDHF15 PHDHF20 PHDHF30 PHDHC20 PHDHC30 PHDHC35
Drive Type   Planetary With Reversible Motor
Shaft Output Size 2-inches Hex 2-inches Hex 2-inches Hex 2-inches Hex 2-inches Hex 2-inches Hex
Maximum Output Torque* 1419-feet lbs. 1777-feet lbs. 2632-feet lbs. 2008-feet lbs. 2937-feet lbs. 3582-feet lbs.
Recommended Hyd. Flow 6 to 15 GPM 10 TO 20 GPM 15 TO 30 GPM 10 to 20 GPM 15 to 30 GPM 20 to 35 GPM
Max. System Pressure 3                 ,000 PSI    3,000 PSI 3,000 PSI 3,000 PSI 3,000 PSI 3,000 PSI
Drive Protection   Hydraulic Relief Valve
Hydraulic Hoses   1/2-inch x 8-feet with 10 MB ends.
Type of Mounts Loader Bucket, Skid Steer Universal, Euro     Loader Bucket, Skid Steer Universal, Euro, backhoe
Max. Auger Diameter (Rock) N/A 9-inches 12-inches 24-inches 36-inches 36-inches
Max. Auger Diameter (Dirt) 18-inches 30-inches 36-inches 30-inches 36-inches 36-inches
Standard Digging Depth 48-inches 48-inches 48-inches 48-inches 48-inches 48-inches
Warranty   2 Years   Limited 5 Years Limited





Specifications
Model
Planetary Hydraulic Drive Post Hole Digger
Category Name
Agriculture
Year
2017
Sale Type
New
Manufacturer
Bush Hog
Documents
