Bush Hog® All Purpose Plows

  • Bush Hog® All Purpose Plows
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
All Purpose Plows
A simple tool to do serious work…(APP48/60/66/85)

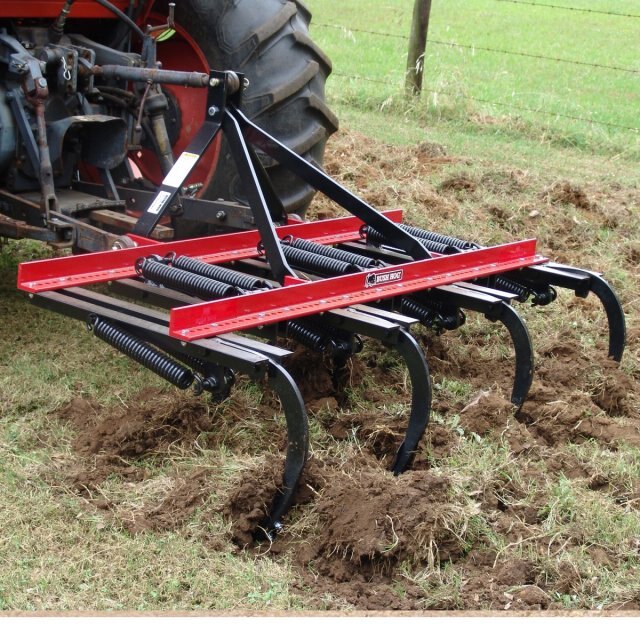

Bush Hog’s new line of All Purpose Plows help you tackle a wide range of ground breaking tasks. These field cultivators break up, cultivate, and aerate the ground in agricultural fields, food plots, gardens, or anywhere you need to get something growing. Spring loaded, auto-reset shanks allow you to go where other tools cannot… stumps, rocks, and other obstacles will not keep you from breaking up “new” ground or reclaiming “old” ground. With 3, 5, 7, and 9-shank models available, Bush Hog has an All Purpose Plow to meet your ground breaking needs.
   Performance Features
  • All Purpose Plows range in working widths from 44” to 80”.
  • Three point lift Cat. 1 Standard or Quick Hitch.
  • Frame construction is 2-1/2” x 2-1/2” x 3/8” angle iron.
  • Reversible Plow Points and are made of High Carbon steel
   Product Features

BHAllPurPlowInsert1

Heat treated shanks with replaceable points; points are 1080 high carbon steel hardened to 38-44 Rockwell C.

BHAllPurPlowInsert2

Easily adjustable shank spacing in 1-inch increments; heavy gauge 2-1/2-inch x 2-1/2-inch x 3/8-inch angle iron frame.

BHAllPurPlowInsert3

Spring loaded, auto-reset shanks protect the implement when obstacles such as rocks, stumps or roots are encountered in rough ground.
  Specifications

MODELS APP48-3 APP60-5 APP65-5 APP66-7 APP85-7 APP85-9
Over All Width 49 5/8” 61 5/8” 67 5/8” 67 5/8” 85 5/8” 85 5/8”
Maximum Working Width 44” 56” 62” 62” 80” 80”
Overall Depth 39 3/4” 39 3/4” 39 3/4” 39 3/4” 39 3/4” 39 3/4”
Overall Height 4 0 3/8” 40 3/8” 40 3/8” 40 3/8” 40 3/8” 40 3/8”
Weight 206-lb 228-lb 284-lb 367-lb 386-lb 455-lb
# of Shanks 3 5 5 7 7 9
Angle Iron Size (width x height x thickness) 2 1/2” x 2 1/2” x 3/8”
Hole Spacing 1”
Hitch Cat. 1 Std and QH
Teeth 5/16” x 2” x 10 1/8” 1080 HIGH CARBON 38-44 ROCKWELL C REVERSIBLE
Suggested Min. PTO 24 HP 35 HP 35 HP 49 HP 49 HP 63 HP
