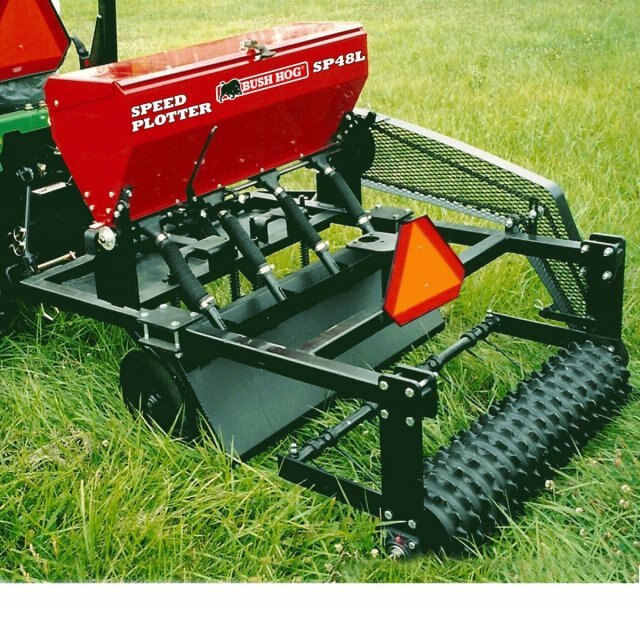

Bush Hog® Speed Seeder Series Plotter

  • Bush Hog® Speed Seeder Series Plotter
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Seed Plotter
Speed Seeder Series

If you take your food plots seriously, then you need serious equipment. The Bush Hog Speed Plotter offers quality and value in the most versatile implement of its kind. You can use it as a broadcast seeder for planting grasses, or as a no-till drill for planting row crops such as corn or beans. And you can switch between broadcast or drilling in a matter of minutes!
 Performance Features
  • Plants virtually any seed
  • Scatters seed grasses for tight germination and a uniform stand.
  • Drills row crop seeds such as corn or beans.
  • All of the ground-engaging components are rolling—No shanks to drag trash
 Specifications

MODEL SD48P SD48L SP72L
WORKING WIDTH 48 in. 48 in. 72 in.
WEIGHT   740 lbs. 660 lbs. 1040 lbs.
HITCH TYPE Pull 3-Pt Cat 1 3-Pt Cat 1 & 2
MINIMUM HP REQ 500cc 25 hp 35 hp
OVERALL WIDTH 52 in. 52 in. 76 in.
OVERALL LENGTH 84 in. 60 in. 60 in.
FRONT DISC SPACING not applicable
FRONT DISC SIZE not applicable
BLADE SPACING 10 in. 10 in. 8 in.
BLADE SIZE 14 in. (Concave)
SEEDBOX CAPACITY 2.5 bu. 2.5 bu. 4.4 bu.
SEED METERING SYSTEM Precision Wobble-Slot Meter
SEED METER DRIVE Positive Ground Drive From Cultipacker
SEED DELIVERY SYSTEM Solid Stand Scatter Thru Seed
ROW SPACING 10 in. 10 in. 8 in.
NO. OF ROWS 4 4 9
CULTIPACKER ASSEMBLY WHEEL DIAMETER 10 in. 10 in. 10 in.
CULTIPACKER ASSEMBLY WHEEL TYPE Cast Iron
AXLE DIAMETER 1.75 in. 1.75 in. 1.75 in.



Specifications
Model
Speed Seeder Series Plotter
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
Bush Hog
