Bush Hog® Road Grader RG72 Series 60/72/84

  • Bush Hog® Road Grader RG72 Series 60/72/84
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Road Grader
RG72 Series 60/72/84

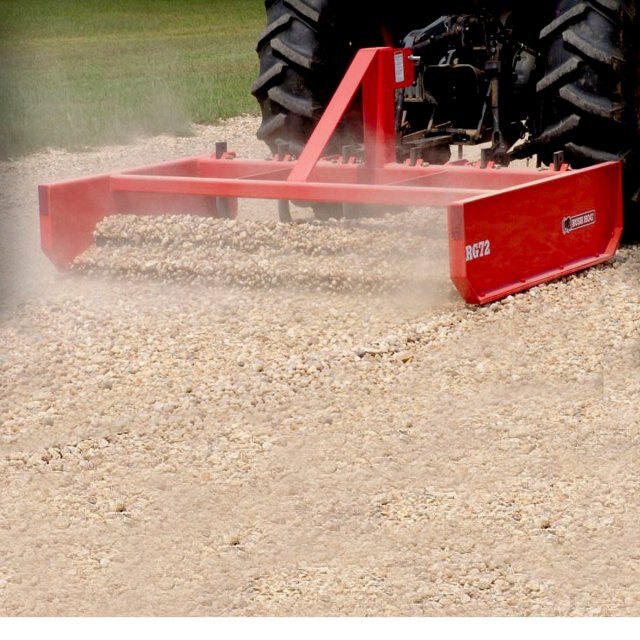

Bush Hog® Road Grader Blades fit a wide range of tractors. The Heavy-Duty, CAT I three-point hitch, 4 in. x 4 in. mainframe and double-lug lower hitch points help ensure performance and reliability. Shearing action of the material being worked is provided by two, reversible, high carbon steel cutting edges. One edge mounted inside the box and the other mounted on the back side allow the blade to be operated in forward or reverse. Maximum penetration in hard-packed material is accomplished by the scarifier kit which has a maximum working depth of 3 in.
   Performance Features
  • The Heavy-Duty, CAT I three-point hitch
  • 4 in. x 4 in. mainframe and double-lug lower hitch points
  • Two, reversible, high carbon steel cutting edges. One inside and the mounted on the back side allow the blade to be operated in forward or reverse.
  • Maximum penetration in hard-packed material is accomplished by the scarifier kit which has a maximum working depth of 3 in.
   Product Features

BHRoadGraderInsert1

The Heavy-Duty, CAT I three-point hitch with 4 in. x 4 in. mainframe and double-lug lower hitch points

BHRoadGraderInsert2

High quality Welds for Long lasting durability

BHRoadGraderInsert3

Two, reversible, high carbon steel cutting edges. Skid Shoe Construction: 3/8 in. x 2-1/2 in. x 46-3/4 in. long
  Specifications
Model Number RG60 Series RG72 Series RG84 Series
Hitch Cat. 1 Std and QH
Recommend HP, 2WD / (FWA) 50 / (40)
Working Width  60 in. 72 in. 84 in.
Weight (lbs.) 500 571 642
Side Panel Thickness 3/16 in.
Front Main Beam Construction 4 in. x 4 in. x 5/16” wall
Rear Beam Construction 2-1/2 in. x 2-1/2 in. x 3/16 in. wall
Skid Shoe Construction 3/8 in. x 2-1/2 in. x 46-3/4 in. long
Scarifier Shanks Three position shanks with dimpled-on hardened tips
Number of Scarifier Shanks 4 6 6
Cutting Edges Two 1/2 in. x 6 in. bolt-on, replaceable and reversible heat-treated blades










Specifications
Model
Road Grader RG72 Series 60/72/84
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
Bush Hog
