Bush Hog

ID # 13494280

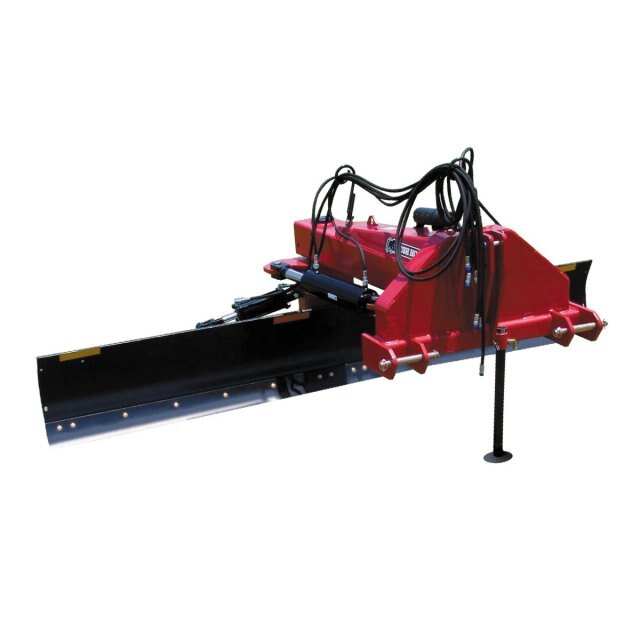

Bush Hog® Rear Mounted Blades 300 Series

Call for Price
Overview

Rear Mounted Blades
300 Series


The heavy-duty design and construction of the 300 Series make them ideal for the most rugged grading jobs. The precision-formed moldboards are reinforced to withstand the most demanding conditions and can be reversed for back filling. This top-of-the-line blade is rated for use on higher horsepower tractors and features standard all-hydraulic controls for ease of operation. The 300 Series is available in 12 and 14-foot widths. The 300 Series is ready for heavy duty action and gives you the confidence to tackle the toughest jobs.

   Performance Features
  • 300 Series is available in 12 ft. and 14-ft. operating widths.
  • Tilt, Angle and Offset Adjustments
  • Reversible Cutting Edge
  • Standard Parking Stand
   Construction Features
  • Heavy-Duty Mainframe
  • High-Strength Reinforced Moldboard
  • Tubular Construction
  • A Frame Construction
  • Double Strap Hitch
  • Powder Coated Paint
  • Heavy-Duty King Pins



Specifications
Model
300 Series
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
Bush Hog
MOLDBOARD WIDTH
12 & 14 ft.
MOLDBOARD HEIGHT AND THICKNESS
20 in. x 1/2 in.
MOLDBOARD CUTTING EDGE
1/2 in. x 6 in.
HITCH
3-Pt. Cat. lII & IV I Quick Hitch
APPROXIMATE WEIGHT
3464 lbs. (12 ft.), 3603 lbs. (14 ft.)
MAX TRACTOR HP (PTO) FRONT WHEEL ASSIST
12 ft. 300 DBHP, 14 ft. 250 DBHP
KING PIN DIAMETER
5 in.
TILT ADJUSTMENT
15º up or down (hydraulic)
OFFSET ADJUSTMENT
50 in. left or right (hydraulic)
ANGLE ADJUSTMENT
45º left or right (in forward and reverse position, hydraulic)
SKID SHOES
Optional
END PLATES
Optional
PARKING STAND
Standard
HYDRAULICS
Standard
