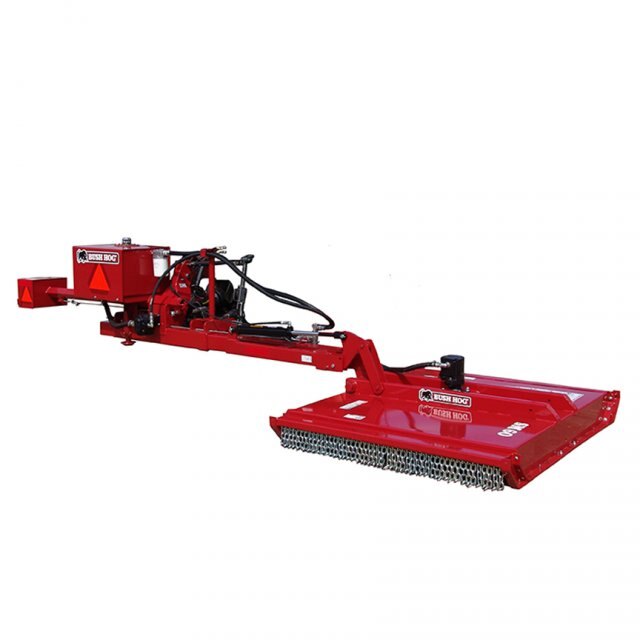

Bush Hog® SM60 Side-Mounted Rotary Cutter

  • Bush Hog® SM60 Side Mounted Rotary Cutter
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

Bush Hog® Side-Mounted Rotary Cutter
SM60 Side-Mounted Rotary Cutter

The rotary cutter for those hard to reach places. Bush Hog®’s SM60 is your ideal choice for mowing and maintaining rights of way, drainage ditches, lake dams, embankments and sloping terrain. Available in either 540 or 1,000 RPM models, the SM60 features a 5-feet cutting width, and it attaches to your tractor with a Category ll standard or Category ll & lll quick hitch. Expand your mowing potential with the Bush Hog® SM60 Rotary Cutter.
  Performance Features
  • 145 Inches Of Reach
  • Ideal For Ponds & Ditch Maintenance
  • Operates From 85° Down To 90° Up
  • Self Contained Hydraulic Drive
  • Anti-Cavitation device to protect your cutter’s hydraulic system
  • High blade tip speed for a cleaner cut in all conditions
  Construction Features
  • 10-gauge deck with 10-gauge x 8-inches side bands
  • Anti-Cavitation Protection
  • Direct drive to hydraulic pump (Cast Iron)
  • Double-edge blades are 1/2-inch x 4-inches
  • Round bladeholders allow the cutter to
  Safety Features
  • WARNING: For non-agricultural use, OSHA, ASAE, SAE and ANSI require the use of chain guards or other protective guards at all times. Bush Hog strongly recommends the use of such guards for agricultural use as well, to reduce the risk of property damage, serious bodily injury, or even death from objects thrown out by or from contact with the cutting blades.
  Product Features
SM60Pic1

Standard equipment includes a convenient parking stand to assist in attaching the SM60 to your tractor. The stand easily pins out of the way during operation.
SM60Pic2

 Fast attachment to your tractor is achieved with the Cat. ll Standard and Cat. ll & lll Quick Hitch.
SM60Pic3

The optional, adjustable tailwheel provides extra support for the main beam- a real plus when working on rugged terrain.
SM60 Round Pan Sm

 Standard equipment includes a round blade pan that provides driveline protection by allowing the blades to glide over field obstructions.
Specification SM60
Cutting Width 60-inches
Cutter Head Movement 90° Up to 85° Down
Transport Width 126-inches
Driveline ASAE Cat. 4, 540 or 1,000 RPM
Type Hitch Cat. II Standard, Cat. II & III Quick Hitch
Hydraulic Pump Mounting Machine only, pto drive
Cutting Capacity 1-inch
Hydraulic Oil Capacity 3-gal., factory filled
Minimum Tractor Weight 6,000-lbs.
Hydraulic Capacity 24 GPM / 540 RPM; 19.1 GPM / 1,000 RPM
Minimum Tractor Lift Capacity 3200-lbs. 24-inches behind lift pins
Overload Protection Hydraulic relief valve
Deck Thickness 10-gauge
Counterweight 275-lbs., standard
Blade Holder Round
Weight 1,675-lbs.



Specifications
Model
SM60 Side-Mounted Rotary Cutter
Category Name
Agriculture
Year
2016
Sale Type
New
Manufacturer
Bush Hog®
