Bush Hog® RDTH Rear Discharge Finishing Mowers

  • Bush Hog® RDTH Rear Discharge Finishing Mowers
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

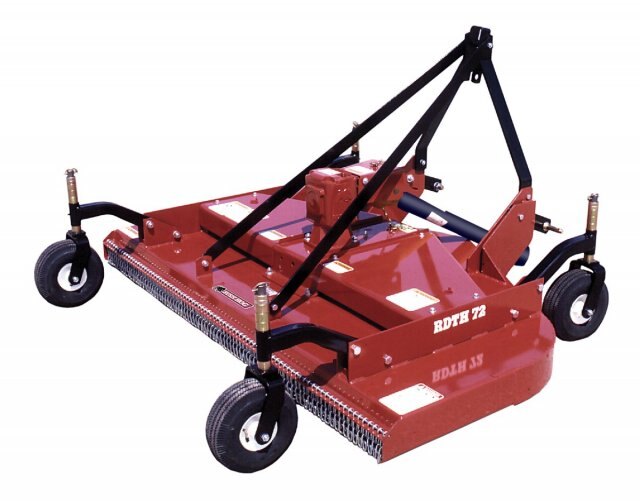

Bush Hog® RDTH Rear Discharge Finishing Mowers
Available in 60 and 84-inches Models

Available in cutting widths of 60, 72, and 84-inches, the RDTH Series is designed to deliver a smooth, even cut with the superior distribution of rear discharge. Floating top and lower links allow for a uniform cut on uneven terrain and high blade tip speeds prevent streaking. Cutting height is easily adjustable from 1 to 6-inches. The closed box design and heavy rear discharge chain shielding reduces potential damage from thrown rocks and other debris.
  Performance Features
  • 60 to 84-inches cutting widths
  • 15 to 55 Tractor HP
  • Designed to deliver the quality distribution of rear discharge
  • Floating top and lower links for uniform cut on uneven terrain
  • High (18,000 plus FPM) blade tip speed prevents streaking
  • Bush Hog® field proven spindles
  • Easy-to-use grease zerk in caster stem
  Construction Features
  • 7-gauge steel deck plate
  • Rear chains standard on RDTH-60 and RDTH-72
  • Flared deck design on RDTH-84
  • Spring-loaded idler adjusts belt tension
  • Single Kevlar® reinforced belt
MODELS RDTH60 RDTH72 RDTH84
Cutting Width 60-inches 72-inches 84-inches
Cutting Height (1/2-inch increments) 1 1/2 to 6 1/2-inches 1 1/2 to 6 1/2-inches 1 1/2 to 5 1/2-inches
Tractor HP Range 15 - 35 PTO 20 - 40 PTO 30 - 55 PTO
Type Hitch Category I Category I Category I
Size Blade 1/4 x 2.5 x 21-inches 1/4 x 2.5 x 25-inches 15/16 x 2.5 x 29-inches
Number of Blades 3 3 3
Blade Tip Speed 18,231 FPM 18,272 FPM 18,475 FPM
Blade Overlap 1 1/2-inches 1 1/2-inches 1 1/2-inches
Blade Uplift Parallel Parallel Parallel
Driveline Size ASAE Category 3 ASAE Category 3 ASAE Category 3
Front Roller Size (optional) 3 x 5-inches 3 x 5-inches 3 x 13-inches
Discharge Rear Rear Rear
Deck Plate 7 gauge 7 gauge 7 gauge
Tire Size 3 1/4 x 10 1/4-inches (solid tire) 3 1/4 x 10 1/4-inches (solid tire) 4 x 10-inches (solid tire)



Specifications
Model
RDTH Rear Discharge Finishing Mowers
Category Name
Lawn / Garden
Year
2016
Sale Type
New
Manufacturer
Bush Hog®
