ID # 13421685

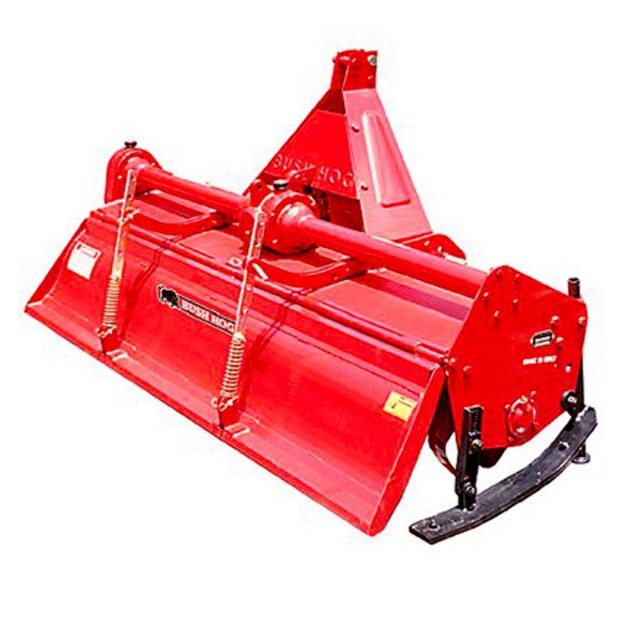

Bush Hog® RTH

  • Bush Hog® RTH
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Bush Hog® Rotary Tillers
RTH Series

Available in 72, 80, and 88-inch tilling widths for 60 to 80 PTO horsepower tractors, the RTH series is the bad boy of the bunch. Designed for heavy commercial work, they feature rugged construction, replaceable skids, and are direct gear driven for heavy duty, primary tillage jobs. Weighing in at up to 964 lbs. and equipped with a heavy-duty down pressure rear gate, this is the tool you can count on for the toughest jobs, year after year.
 Performance Features
  • Standard slip clutch
  • For heavy commercial work
  • Side gear drive
  • Available in sizes to 88-inches
  • Fits tractors to 80 PTO HP
  • Heavy-duty down pressure rear gate
 Construction Features
  • Heavy Duty Gearboxes
  • Direct Gear Drive
  • Replaceable Skids
  • Anti-Wrap Device To Protect Seals
  • Slip Clutch Is Standard
  • High Carbon, Long Life Steel Blades
  • Solid Steel Rotors
  • Powder Coat Paint
 Product Features
Adjustable skid shoes are standard equipment for precise depth control. RTH, RTN, and RTNR tillers adjust through 5 positions to a 7-inch tilling depth and RTS tillers adjust through 4 positions to a 7-inch depth.BH Rotary Tillers Feature1
A unique anti-wrap device on the RTH and RTN tillers prevents residue from damaging seals. On the RTS tillers, triple-lip sealed ball bearings on the rotor shaft help keep dirt out and reduce wrapping.BH Rotary Tillers Feature2



Specifications
Model
RTH
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Bush Hog®
Type Hitch
Category I & II, 3-Point
Tilling Width
60 and 88-inches
Tractor PTO HP Requirements
60 - 80 HP
Blades
C-Type
Number Blades
36,40,44
Rotor Speed
213 RPM / 540 PTO
Power To Rotor Transmission
Gear Drive Single Speed
Number Of Flanges
9,10,11
Offset Capability
12-inches Fixed Offset on 60-inches Model
Depth Of Cut
Adjustable to 7-inches max. with skid shoe
Driveline Protections
Slip Clutch
Weight Range
884-lbs to 964-lbs
