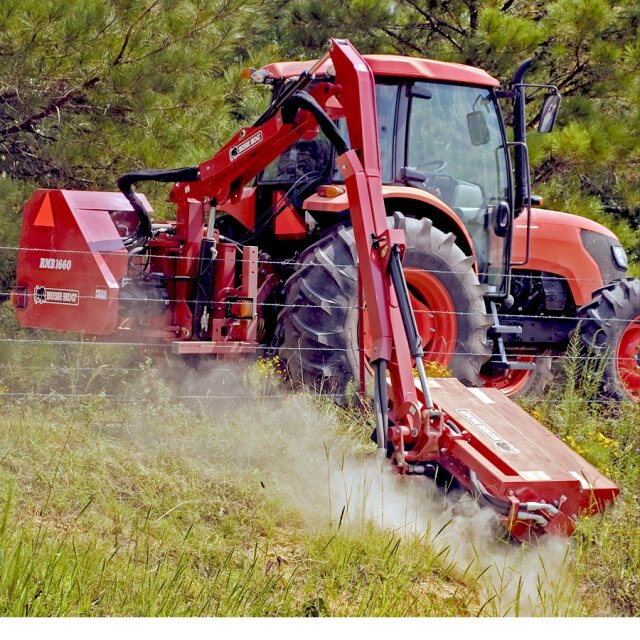

Bush Hog® RMB1865-1 BOOM MOWERS

  • Bush Hog® RMB1865 1 BOOM MOWERS
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
Bush Hog® Boom Mowers
Bush Hog® Extend your reach and productivity!

RMB1445-1, RMB1660-1, RMB1865-1 and the PT5 Powertrim-2

The ultimate in versatility, Bush Hog’s rugged, tractor-mounted boom mowers are designed to trim trees, brush or hedges and mow behind guardrails, over fences, down embankments and around ponds. With four models reaching 11 to 18-feet from the tractor centerline, there’s almost no limit to what you can accomplish. They’re easy to operate and built to provide years of dependable service.

NOTE: (RMB models to be used on tractors equipped with cabs only, and for rotary mower heads, protective screen material must be installed.)
 Performance Features
  • Multiple cutting head offerings allow you to fit the RMB Mowers to your particular application. A Rotary Cutter head capable of cutting brush up to 4-inches in diameter is available for use on the larger RMB1660 and RMB1865(E) models. Flail Heads capable of mowing either grass or brush up to 2-inches in diameter, or Sickle Bar Cutters that specialize in trimming hedges and mowing round out the cutting head options.
  • RMB models fit tractors as small as 45 engine HP and weighing a minimum 4,410 pounds.
  • Hydraulic breakaway mechanisms on all RMB models break up and away to allow you to clear most obstacles encountered while mowing.
  • The RMB1660 and RMB1865 units offer a Power Slew feature that allows the operator to rotate the cutter 100˚ to the rear, thereby permitting the cutting out of corners and mowing within the tractor’s width.
  • Easy-to-use cable control valve bank for in-cab operation with an optional electronic proportional valve, joystick, controlled system available on the RMB 1865E Model. Models now offer quick-detach control cables which permit the operator to leave the controls in the cab when the unit is removed from the tractor.
  • All flail heads on the RMB models come standard with an adjustable front guard and front flap kit to protect from thrown objects, along with a built-in “wire trap” feature to keep loose wires from becoming entangled in the rotor.
  • RMB models offer optional accessories such as a lift float kit and skid kit on certain models.
  • The unique PT5 model is powered by the tractor’s hydraulic system, requiring only 3.7 gal./min. flow to operate the unit. A Flow Control Valve Kit comes standard on current models to divert excess hydraulic flow back to the tractor. The PT5 fits tractors as small as 15 HP. Its unique “swing over” design enables the unit to work on either side of the tractor. The PT5 is equipped with a swing arm, sickle bar head to meet the pruning needs of horticulturists and landscapers alike.
 Construction Features
  • RMB models offer optional accessories such as a lift float kit and skid kit on certain models.
 Product Features
FLAT HEAD Attachment ( Fitting the RMB1445 / RMB1660 / RMB1865 Boom Mowers) See Specifications for more details.BHboomFlathead
BHPluggerInsert2
CUTTER BAR Attachment ( Fitting the RMB1445 / RMB1660 / RMB1865 Boom Mowers) See Specifications for more details.BHBoomCutterbar
ROTARY HEAD Attachment ( Fitting the RMB1445 / RMB1660 / RMB1865 Boom Mowers) See Specifications for more details.BoomMowerRotaryHead1
PT5-2 POWERTRIM 3/4” Cutting Capacity 59” Cutting Width (All booms equipped with hydraulic or mechanical breakaway.)BHBoomCutter Close1
RMB1445-1, RMB1660-1, RMB1865-1 (RMB models to be used on tractors equipped with cabs only.)BHBoom%2CP20Dimensions
All RMB models offer self contained, fully independent hydraulic systems with twin pumps for optimum cutting performanceBHRMBhydraulicPic
The unique PT5 is powered by the tractor’s hydraulic system, requiring only 3.7 gal/min. flow to operate the unit. A Flow ControlRearMountBoomMowerPT5 2 Sm Valve Kit comes standard on current models to divert excess hydraulic flow back to the tractor. The PT5 fits tractors as small as 15 HP. Its unique “swing over” design enables the unit to workon either side of the tractor. The PT5 is equipped with a swing arm, sickle bar head to meet the pruning needs of horticulturists and landscapers alike.



Specifications
Model
RMB1865-1 BOOM MOWERS
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Bush Hog®
Tractor PTO
540
Machine Weight W/Flail
2470-lbs
Hydraulic System
Totally Independent
Attachment Method
Cat. I/II, 3 Pt. Mount
Controls
Cable Controlled (QD) /XTC Electronic Controls
Rotor / Knife Type
Super Cut / F91 Competition knives or Multi-Cut / Competition
Typical Application
Hedge Cutting, Grass
Cutter Type
Sickle Bar
Tractor Engine HP/Weight (Min ) FLAIL HEAD
65 HP/7716-lbs
Max Reach, Horizontal
18-feet 1-inch
Max Reach, Vertical
16-feet 1-inches
Max Height, Horizontal
17-feet 5-inches
