Bush Hog® RG84 Series

  • Bush Hog® RG84 Series
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

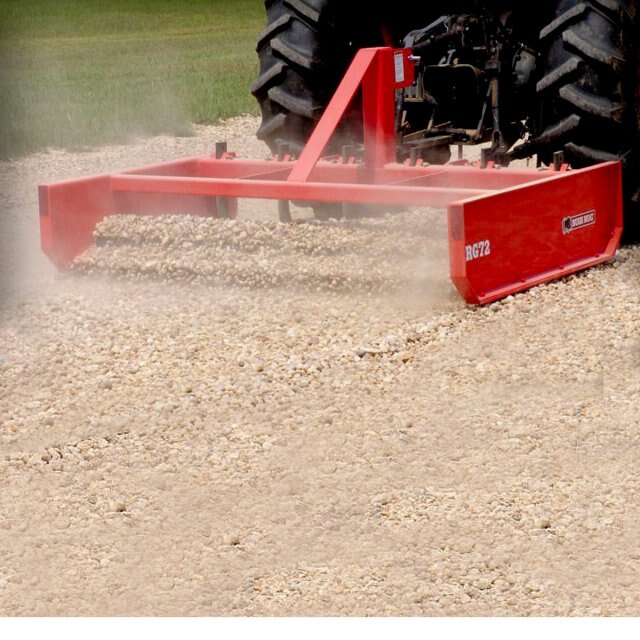

Bush Hog® Road Grader
RG72 Series 60/72/84

Bush Hog® Road Grader Blades fit a wide range of tractors. The Heavy-Duty, CAT I three-point hitch, 4 in. x 4 in. mainframe and double-lug lower hitch points help ensure performance and reliability. Shearing action of the material being worked is provided by two, reversible, high carbon steel cutting edges. One edge mounted inside the box and the other mounted on the back side allow the blade to be operated in forward or reverse. Maximum penetration in hard-packed material is accomplished by the scarifier kit which has a maximum working depth of 3 in.
 Performance Features
  • The Heavy-Duty, CAT I three-point hitch
  • 4 in. x 4 in. mainframe and double-lug lower hitch points
  • Two, reversible, high carbon steel cutting edges. One inside and the mounted on the back side allow the blade to be operated in forward or reverse.
  • Maximum penetration in hard-packed material is accomplished by the scarifier kit which has a maximum working depth of 3 in.
Product Features
The Heavy-Duty, CAT I three-point hitch with 4 in. x 4 in. mainframe and double-lug lower hitch pointsBHRoadGraderInsert1
High quality Welds for Long lasting durabilityBHRoadGraderInsert2
Two, reversible, high carbon steel cutting edges. Skid Shoe Construction: 3/8 in. x 2-1/2 in. x 46-3/4 in. longBHRoadGraderInsert3
Specifications
Model
RG84 Series
Category Name
Agriculture
Year
2015
Sale Type
New
Manufacturer
Bush Hog®
Hitch
Cat. 1 Std and QH
Working Width
84 in.
Weight (lbs )
642
Cutting Edges
Two 1/2 in. x 6 in. bolt-on, replaceable and reversible heat-treated blades
Recommend HP, 2WD / (FWA)
50 / (40)
Side Panel Thickness
3/16 in.
Front Main Beam Construction
4 in. x 4 in. x 5/16'' wall
Rear Beam Construction
2-1/2 in. x 2-1/2 in. x 3/16 in. wall
Skid Shoe Construction
3/8 in. x 2-1/2 in. x 46-3/4 in. long
Scarifier Shanks
Three position shanks with dimpled-on hardened tips
Number Of Scarifier Shanks
6
